• Model NO.：DT DG
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Material：Casting iron
• Porting Pattern：ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0
• Throttle Control Type：Meter in Control, Meter out Control
• Medium Viscosity Range：28-500mm2,S
• Weight：1.2-1.6kg
• Transport Package：Cartons and Pallets
• Specification：01, 02
• Trademark：Longli
• Origin：China
• HS Code：84812010
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. DT DG Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Material Casting iron Porting Pattern ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0 Throttle Control Type Meter in Control, Meter out Control Medium Viscosity Range 28-500mm2/S Weight 1.2-1.6kg Transport Package Cartons and Pallets Specification 01, 02 Trademark Longli Origin China HS Code 84812010 Production Capacity 5000PCS/Month

Product Description

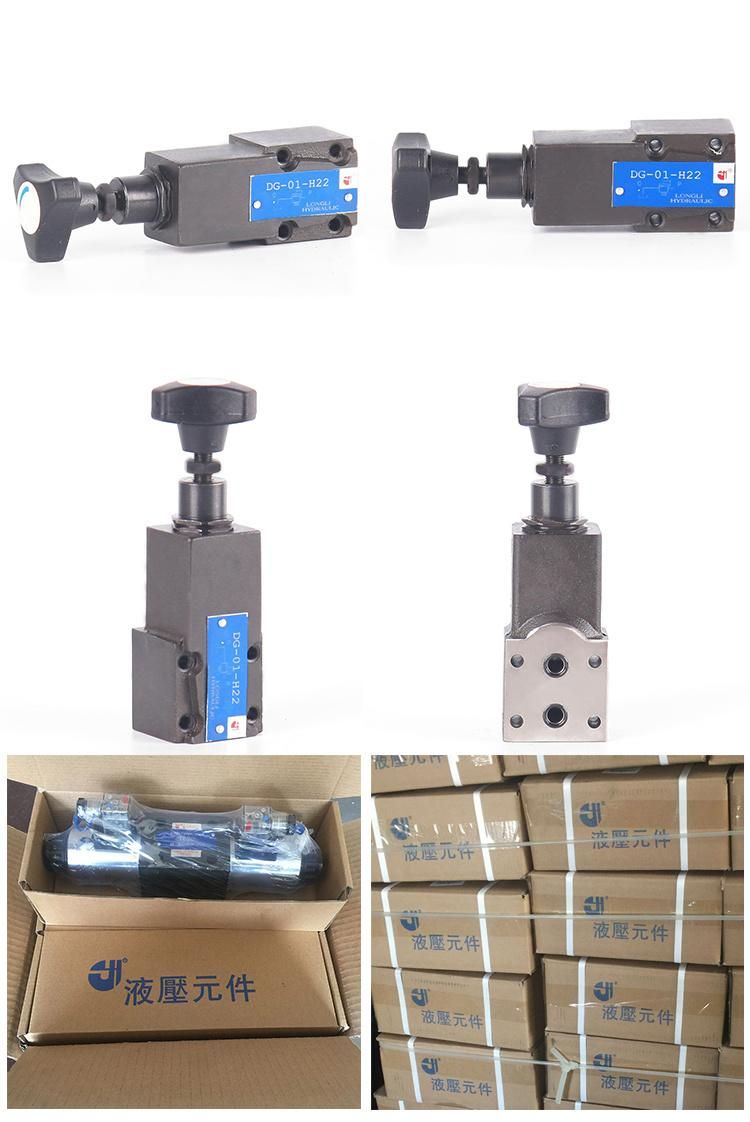

Hydraulic Remote Control Direct Operated Relief Valve



Remote Control Relief Valve DT/DG 01 is used as a remote control valve for pilot operated type pressure control valves.

To adjust the pressure, loosen the lock nut and turn the handle slowly clockwise for higher pressures or anti-clockwise for lower pressures. After adjustments, do not forget to tighten the lock nut.

Piping of the tank line should not be connected to any tank line of the other valves, but connected directly to the reservoir.

Pressure is limited by collars fitted. If a working pressure cannot be attained, remove some collars. One collar is equivalent to 10 MPa (1450 PSI).
If the internal volume of the vent line is too large, chattering is likely to occur.



Remote Control Relief Valve DT/DG 02 is used in a hydraulic circuit to prevent damage due to over pressure and to adjust the maximum circuit pressure of small capacity.

To adjust the pressure, loosen the lock nut and turn the handle slowly clockwise for higher pressures or anti-clockwise for lower pressures. After adjustments, do not forget to tighten the lock nut.

Piping of the tank line should not be connected to any tank line of the other valves, but connected directly to the reservoir.

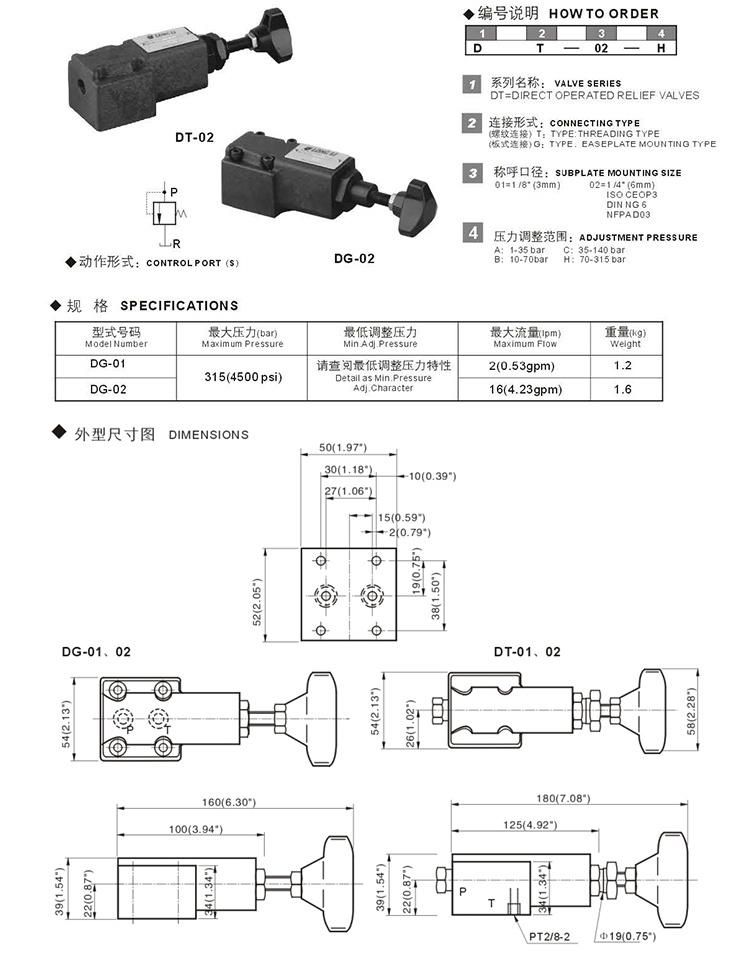

Product name: Hydraulic Remote Control Direct Operated Relief Valve
Model: DT DG 01/02
Place of Origin: Shandong, China

Max. Flow: 2L/min; 16L/min

Max Pressure: 315Bar
Cracking Pressure: 0.4bar, 3.5bar, 5bar
Material: Casting
Medium: Oil
Power: Hydraulic
Color: Customer's request
Certificate: ISO9001
