• Model NO.：OMV315~OMV1000
• Usage：Agriculture Machinery Tool
• Motor of Material：Cast Iron
• Shaft：Straight Shaft, Cone Shaft
• Fuel：Hydraulic Oil
• Item：Hydraulic Power Unit
• Auxiliary Components：Seal
• Hydraulic Motor：Orbit Hydraulic Motor Omv
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE, SGS, ISO9001
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：100000 PCS,Year

Type  OMV315
 OMV400
  OMV500  OMV630  OMV800  OMV1000 Displacement (cm ³/rev.)333419518666801990Max. speed (rpm)cont.510500400320250200int.630600480380300240Max. Torque
 (Nm)cont.92011801460166018802015int.111014101760194021102280peak129016402050221024702400Max. output (kW)cont.38.047.047.040.033.028.6int.46.056.056.056.044.040.0Max pressure
drop(Mpa)cont.202020181614int.242424211816peak282828242118Max flow
(L/min)cont.160200200200200200int.200240240240240240Net Weight  (kg)31.832.633.534.936.538.6
BLINCE Orbital Hydraulic Motor OMV series

Displacement:
 315cc,400cc,500cc,630cc,800cc,1000ccFlange:4: 4-Ø18 Square-flange Ø200, pilot Ø160×11
W: 4-Ø18 Wheel-flange Ø224, pilot Ø180×10
K6: 4--Ø14.2 Square-flange Ø162, pilot Ø127×11
K4: 4-Ø14.2 Square-flange Ø160, pilot Ø125×11Output Shaft:A: Shaft Ø50 , parallel shaft with key 14×9×70
BD: Shaft Ø53.975, splined shaft 16-DP8/16
B: Shaft Ø53.975, splined key 16-DP8/16
C: Shaft Ø57.15, parallel shaft with key 12.7×12.7×57.15
T: Cone shaft Ø60, parallel key 16×10×32
T1: Cone shaft Ø60, parallel key 14.308×14.308×50.8
Q: Shaft Ø45, splined shaft 17Z*2.5×30P×5e
M: Shaft Ø45, parallel shaft with key 12×8×70
Y:  Shaft Ø45, parallel shaft with key 12×8×45Ports and drain port:D: G1 Manifold 4×M12, G1/4
M: M33×2 Manifold 4×M12, M14×1.5
S: 1-5/16-12UN, 9/16-18UNF
G: G1,G1/4
M5: M33×2, M14×1.5
S1: 1-5/16-12UN(18),7/16-20UNF(12)
Application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more

WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

Related Products:

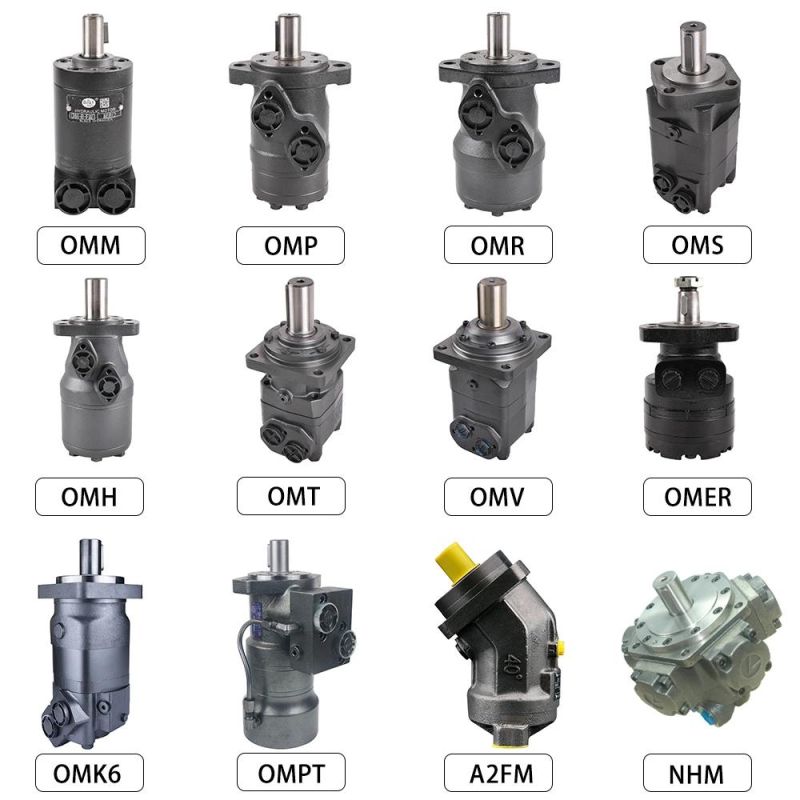

Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
