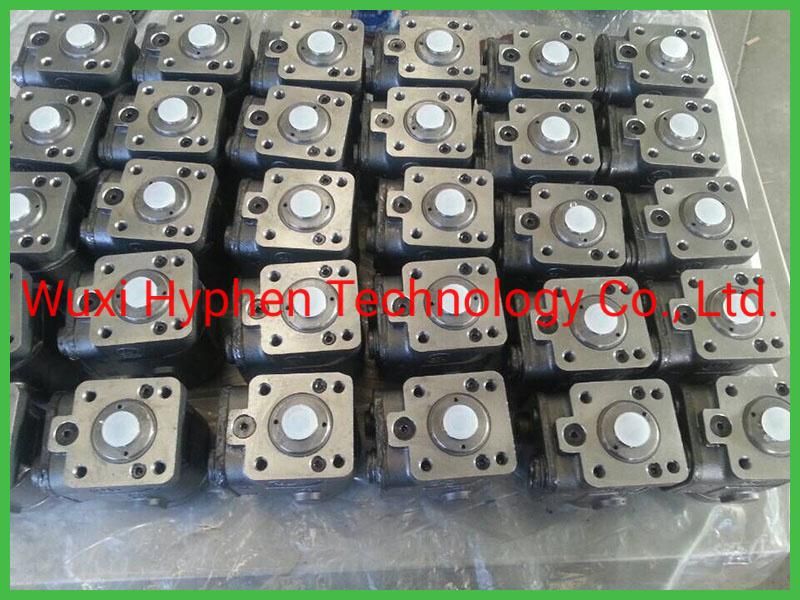

Re Char-Lynn Power Steering Control Units (SCU)

Wuxi Hyphen Technology Co., Ltd.
  • Certification：GS, ISO9001
  • Pressure：Medium Pressure
  • Work Temperature：Normal Temperature
  • Voltage：380V
  • Installation：Vertical
  • Material：Cast Iron

Base Info

  • Model NO.：01, 02, 03, 06
  • Type：Hydraulic Power Units
  • Transport Package：in Carton or Plywoodcase
  • Specification：100-500
  • Trademark：hyphen
  • Origin：China
  • HS Code：87089490
  • Production Capacity：500000

Description

Basic Info.

Model NO. 01, 02, 03, 06 Type Hydraulic Power Units Transport Package in Carton or Plywoodcase Specification 100-500 Trademark hyphen Origin China HS Code 87089490 Production Capacity 500000

Product Description



Re Char-Lynn Power Steering Control Units (SCU)Re Char-Lynn Power Steering Control Units (SCU)Re Char-Lynn Power Steering Control Units (SCU)Re Char-Lynn Power Steering Control Units (SCU)
060 Integral Series PSU
060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features:
1. Incorporated five valves into the PSU, so it is more compact and convenient.
2. Low hydraulic noise.
3.3 basic systems-open center, closed center and load sensing.
4. Displacement: 50~500ml/r
Main Specification Data:
Max. System pressure-16MPa
Max. Back pressure-2.1MPa
Input torque-1.7~2.5Nm
Max. System operating temperature-93° C
Recommended oil filtration-ISO 19/16
