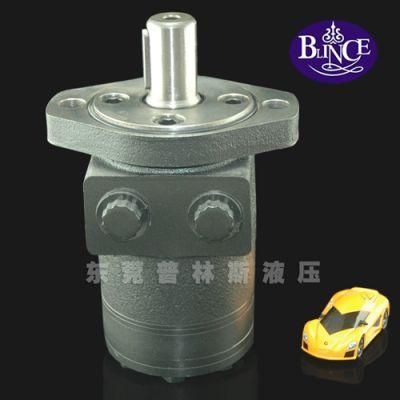

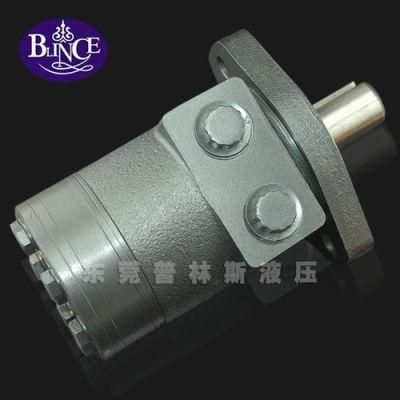

Blince Model Omph36-H4-K-S Replace Eaton 101-2816-009 Orbital Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Excitation Mode：Excited
- Power Rating：2000W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：Low Speed
- Type：Hydraulic Motor
Base Info
- Model NO.：OMPH hydraulic motor
- Displacement：314.5
- Max. Seed：192
- Max.Pressure：9
- Max.Flow：60
- Weight：6.9
- Length：172
- Port：G1,2
- Warranty：One Year
- Hydraulic Actuator：Combination Hydraulic Cylinders
- Hydraulic Power Units：Vane Pump
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：CE, CCC, ISO
- Trademark：Blince
- Origin：Guangdong, China
- HS Code：84122910
- Production Capacity：500sets,Month
Description
Geometric displacement36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5 Max.speed.(rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120 int. 1650 1450 960 770 615 475 385 310 240 190 150 Max.torque(N.m cont. 55 100 146 182 236 302 360 383 375 360 385 int. 76 128 186 227 290 370 440 460 555 525 560 Max.output(KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0 int 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0 Max.pressure
Drop(Mpa) cont. 12.5 14 14 14 14 14 14 11 9 7 6 int 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9 Max.flow(L/min) cont. 55 60 60 60 60 60 60 60 60 60 60 int. 60 75 75 75 75 75 75 75 75 75 75

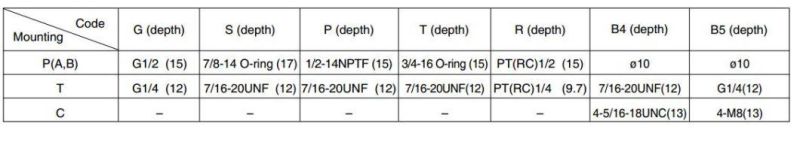

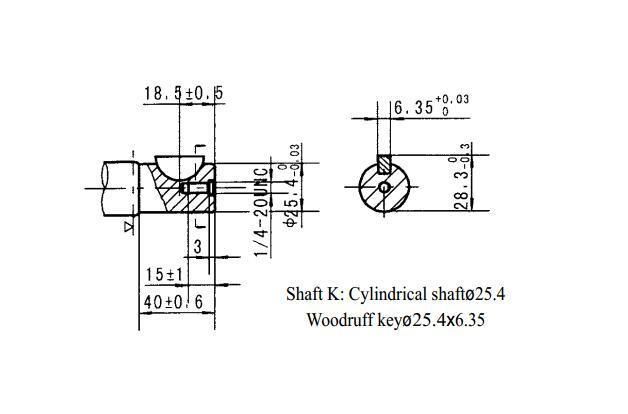

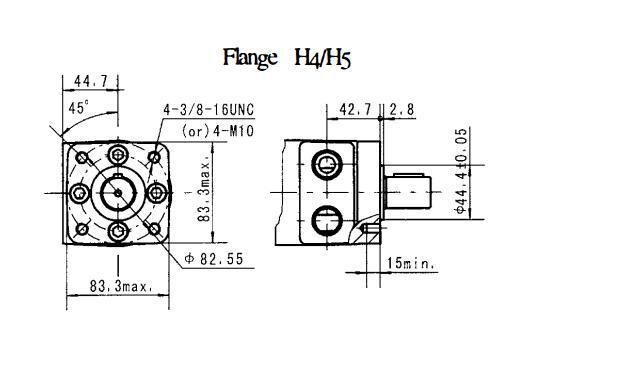

OMPH (Flange, shaft and port) drawing:
OMPH sesies high speed motors are small volume, economical type,which is designed with shaft distribution flow,which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Characteristic features of OMPH high speed hydraulic motor
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Applications : Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems caused by ourquality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go,and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost,you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Have any Questions, welcome to contact me, I'm gald to service you in Model selection giude!
Amy chen
Call:+86-13560881920
