Stainless Steel Camlock Coupling Heavy Duty
Suntex Import & Export Trading Co., Ltd.- Pressure：Medium Pressure
- Work Temperature：Normal Temperature
Base Info
- Model NO.：a, b, c, d, e, f, dc, dp
- Thread Type：Male+Female
- Installation：Sleeve Type
- Material：Stainless Steel
- Type：Quick Connector
- Size：1,2"-6"
- Color：White
- Shape：Round
- Easy or Hard：Easy
- Transport Package：in Cartons
- Specification：1,2"-6"
- Trademark：SUNTEX aquatech
- Origin：Hebei Province, China
- HS Code：73071900
- Production Capacity：20000PCS Per Month
- Package size per unit product：24.00cm * 22.00cm * 20.00cm
- Gross weight per unit product：15.000kg
Description
Casting method of our SS camlock coupling:
Investment casting
Body material of SS Camlock fitting:
CF8M casting (SS316)
CF8 casting (SS304)
Other material are available on request
Specification of SS camlock coupling:
>Sizes available:from 1/2" to 6"
Types available:A.B.C.D.E.F.DC.DP
Cam levers of SS camlock fitting:
stainless steel.
Pins.Rings and Safety clips of SS Camlock:
We use steel plated Pins,Rings and Safety clips.
(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)
Sealings :
NBR
Viton
PTFE envelop gasket
Other materials are available on request.
Threads of our racores camlock en acero inxidable:
NPT
BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)

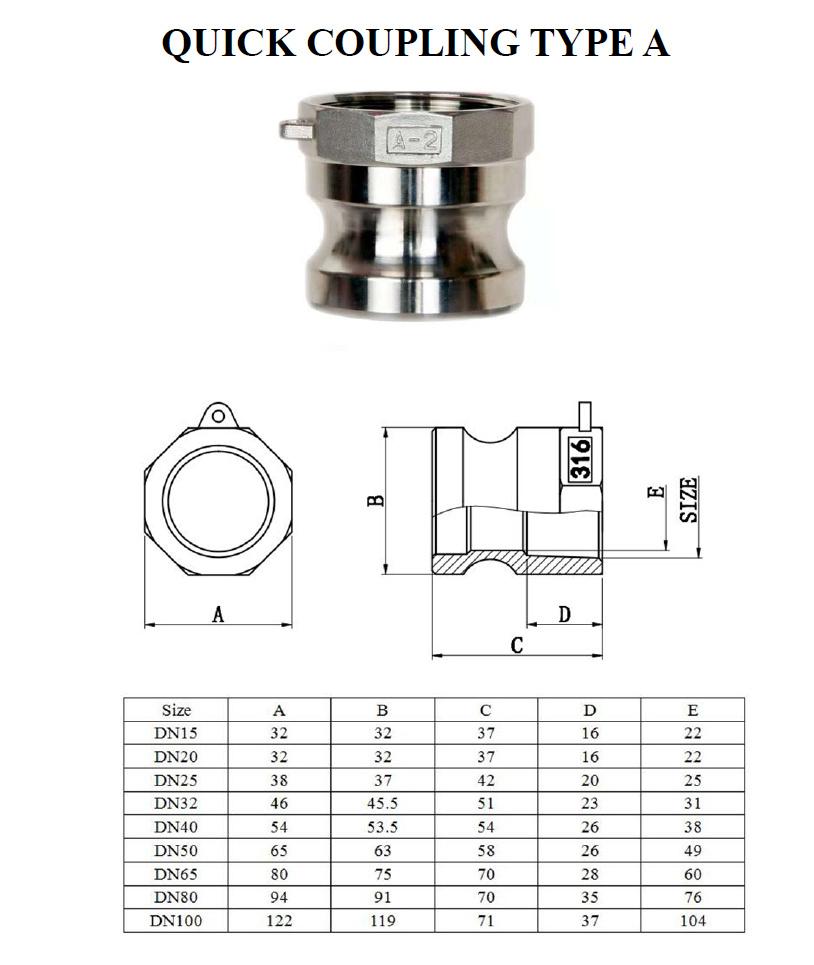

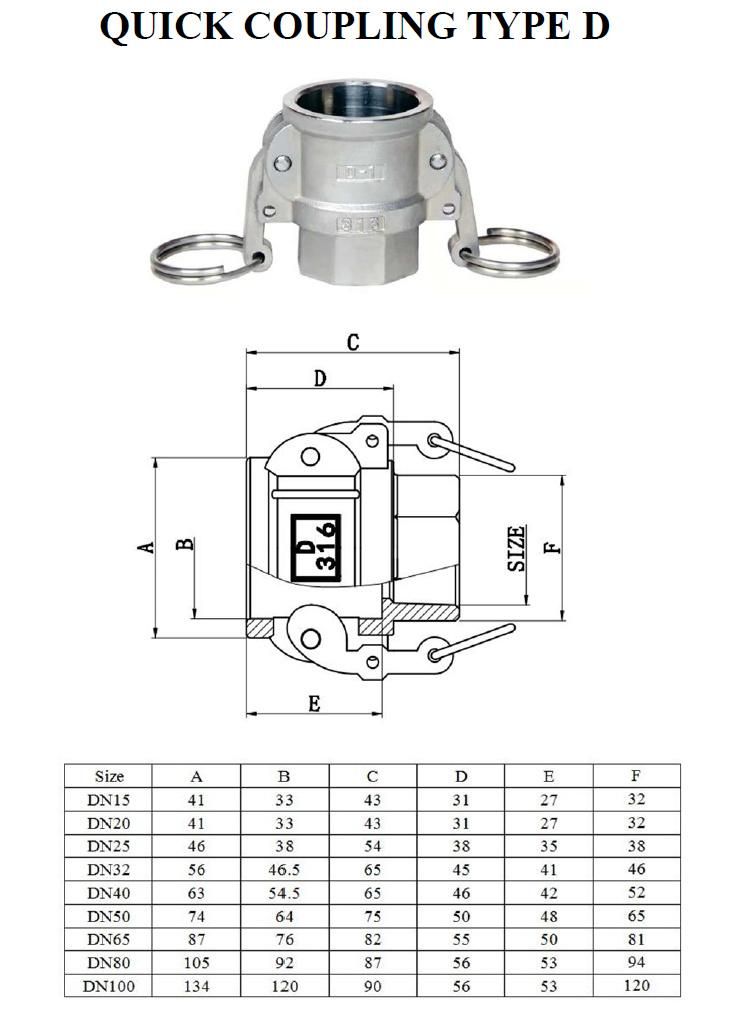

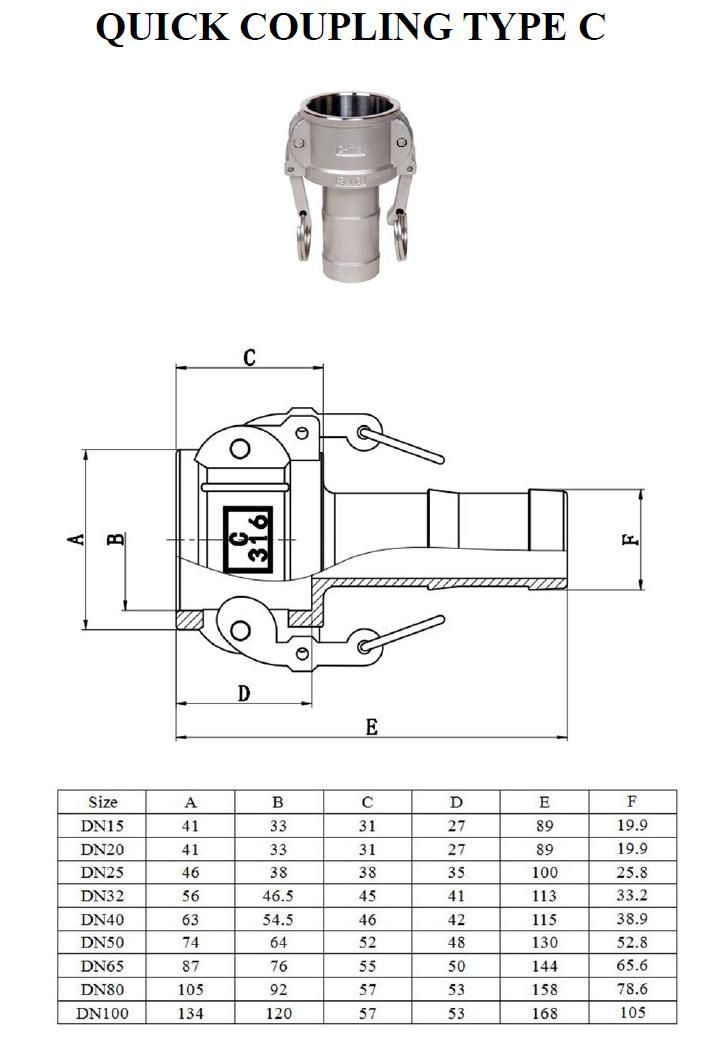

DIMENSION CHART:
