• Model NO.：A, B, C, D, E, F, DC, DP
• Type：Quick Connector
• Size：1,2"-6"
• Color：White
• Shape：Round
• Easy or Hard：Easy
• Transport Package：in Cartons
• Specification：1,2"-6"
• Trademark：SUNTEX aquatech
• Origin：Hebei Province, China
• HS Code：73071900
• Production Capacity：20000PCS Per Month

DESIGN STANDARDA.A59326B, EN14420-7THREAD STANDARDBSP, NPTWORKING PRESSUREPN10/16, CLASS 150/300WORKING TEMPERATURE-20  ~ 80

Casting method of our SS camlock coupling:
Investment casting

Body material of SS Camlock fitting:
CF8M casting (SS316)
CF8 casting (SS304)
Other material are available on request

Specification of SS camlock coupling:
>Sizes available:from 1/2" to 6"

Types available:A.B.C.D.E.F.DC.DP

Cam levers of SS camlock fitting:
stainless steel.
Pins.Rings and Safety clips of SS Camlock:
We use steel plated Pins,Rings and Safety clips.
(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)

Sealings :
NBR
Viton
PTFE envelop gasket
Other materials are available on request.

Threads of our racores camlock en acero inxidable:
NPT
BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)

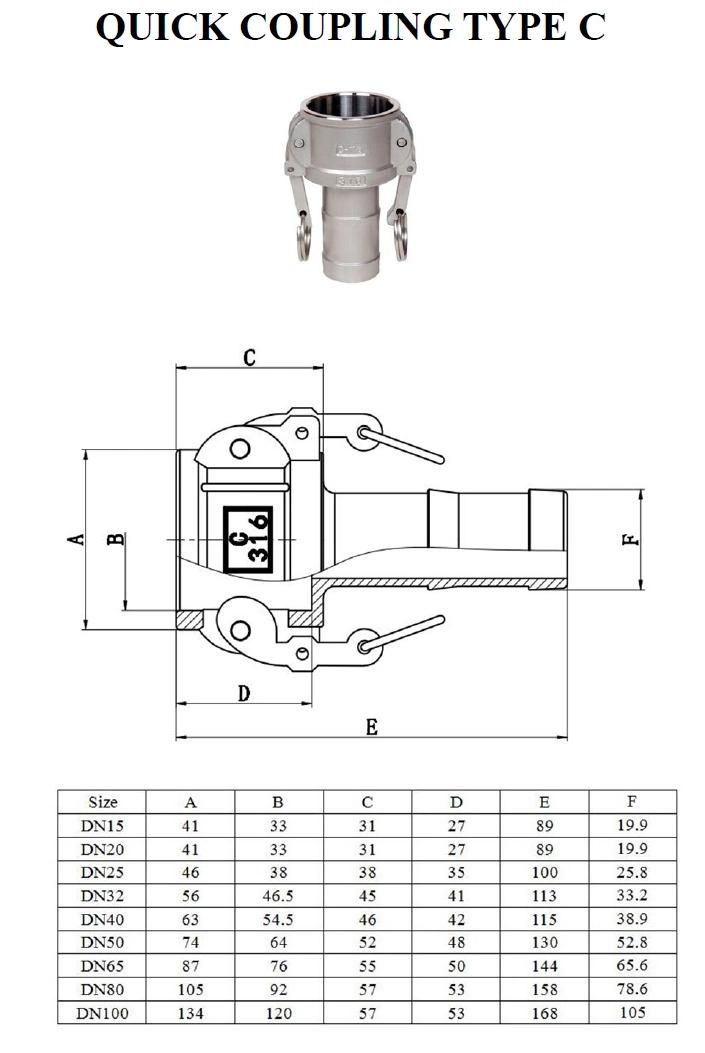

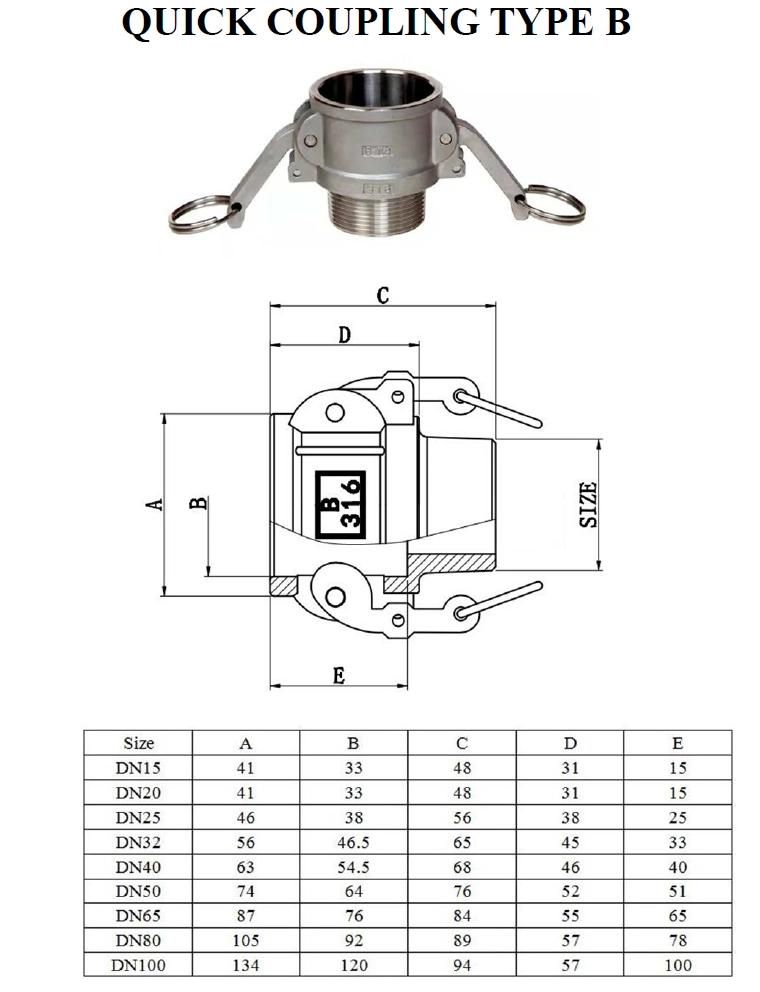

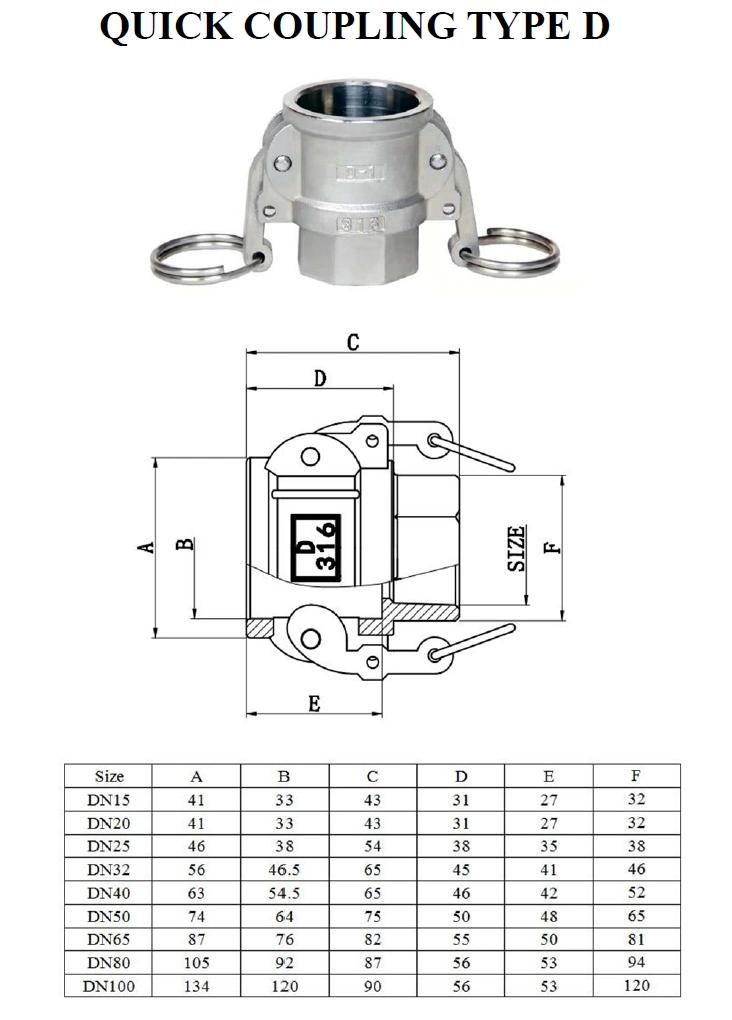

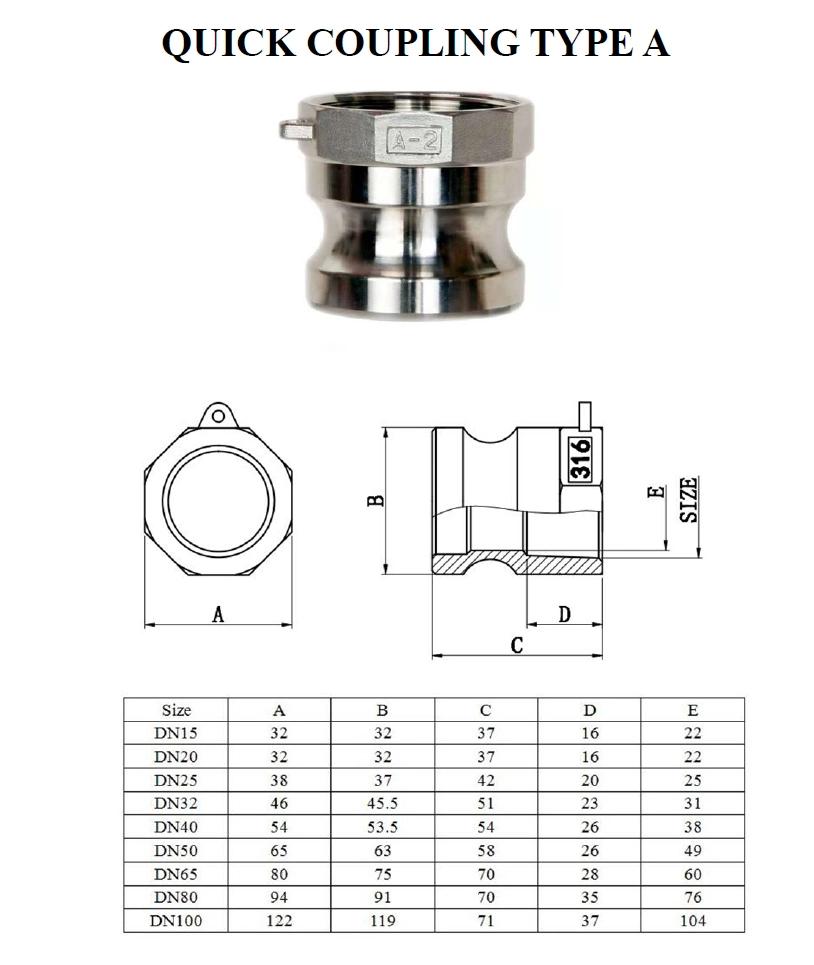

DIMENSION CHART:
