• Model NO.：010
• Pressure Control Valve：Overflow Valve
• Hydraulic Motor：Gear-Type Hydraulic Motor
• Hydraulic Actuator：Hydraulic Cylinder Piston
• Hydraulic Power Units：Vane Pump
• Transport Package：in Carton
• Trademark：HYPHEN
• Origin：China
• HS Code：87089410
• Production Capacity：1000000PCS Per Year

Basic Info.

Model NO. 010 Pressure Control Valve Overflow Valve Hydraulic Motor Gear-Type Hydraulic Motor Hydraulic Actuator Hydraulic Cylinder Piston Hydraulic Power Units Vane Pump Transport Package in Carton Trademark HYPHEN Origin China HS Code 87089410 Production Capacity 1000000PCS Per Year

Product Description

010 Series:
-Standard Series
Include: Open Center. Closed Center and Load Sensing Style
Displacement: 80~500ml/r

010 Standard Series Power Steering Units:
It is a standard design. Its displacement is 80 to 500ml/r.
It can be connect with valve block directly to fulfill all kinds of system.
Typical applications are tractors, combines, lift trucks, wheel loaders and other heavy vehicles.

Features:
1. The design of valve with optimum gains better characteristics.
2. Low hydraulic noise.
3. Special casting design for low pressure drop.
4.3 basic systems open center, closed center and load sensing.
5. Many types available.
6. One or more built-in valve functions.
7. Optional part connections. (According to ISO)

Main Specification Data:
Max. System pressure-16MPa
Max. Back pressure-2.1Mpa
Input torque-2.8~4.0Nm
Max. System operating temperature-93° C
Recommended oil filtration-ISO 19/16

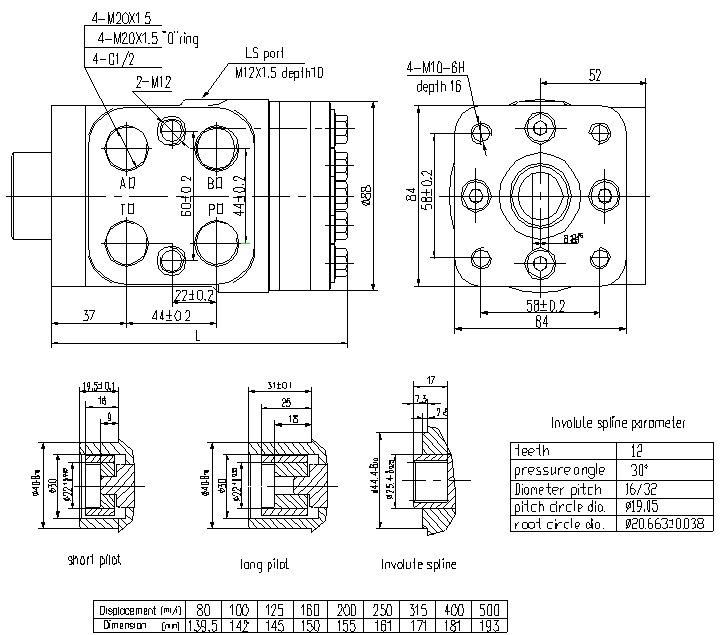

Dimension and Mounting Data
