• Model NO.：ZDB10VC-1-40,210
• Trademark：Power or OEM
• Origin：China
• HS Code：8481400000
• Production Capacity：10000PCS,M

Basic Info.

Model NO. ZDB10VC-1-40/210 Trademark Power or OEM Origin China HS Code 8481400000 Production Capacity 10000PCS/M

Product Description

1. Product Description
Pilot operated pressure relief valve, types ZDB/Z2DB 10V..L4XPressure relief valve types ZDB and Z2DB are pilot operated and sandwich structure. They are used to limit the pressure in a hydraulic system.
They basically consist of the housing (7), together with one or two pressure relief valves cartridges. And the system pressure is set by means of relief valve (4).
At static position, the valves are closed. Pressure in port A acts on the spool (1). Pressure fluid flows through orifice (2) to the spring loaded side of the spool (1) and through orifice (3) to the pilot poppet (6). If the pressure in port A rises beyond the value setting at spring (5), the pilot poppet (6) opens. Fluid can flow from the spring loaded side of spool (1), orifice (3), and channel (8) into port T. The pressure drop moves spool (1) to open the connection from A to T, while the setting pressure at spring (5) is maintained. Pilot oil returns from the two spring chambers via port T externally.

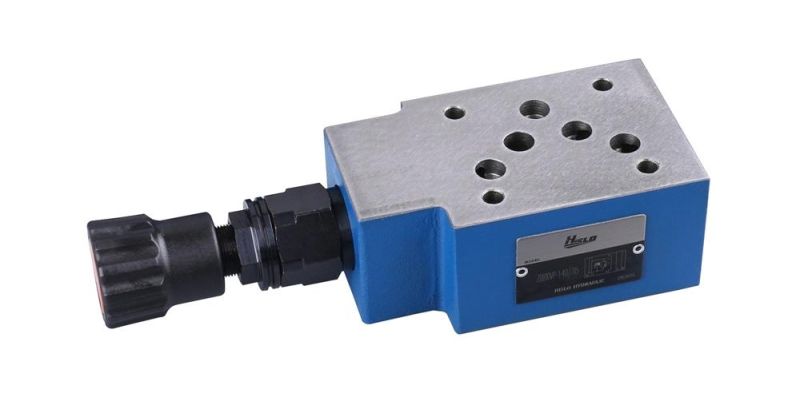

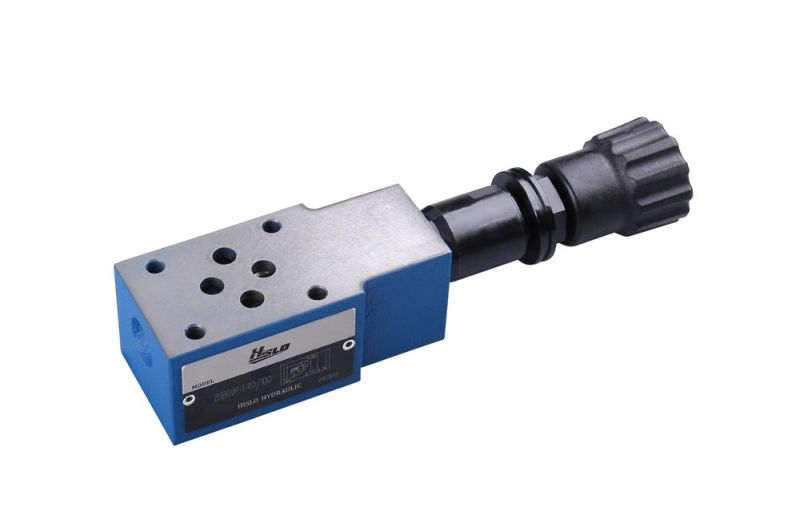

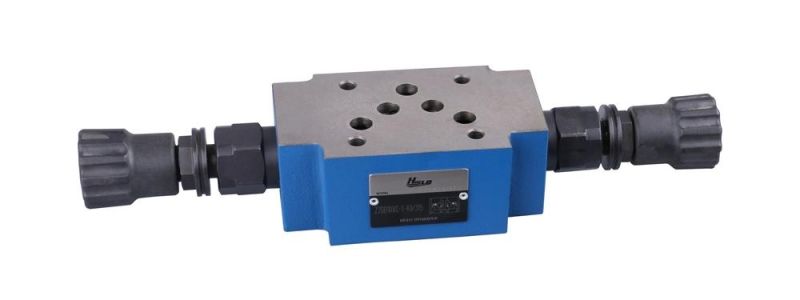

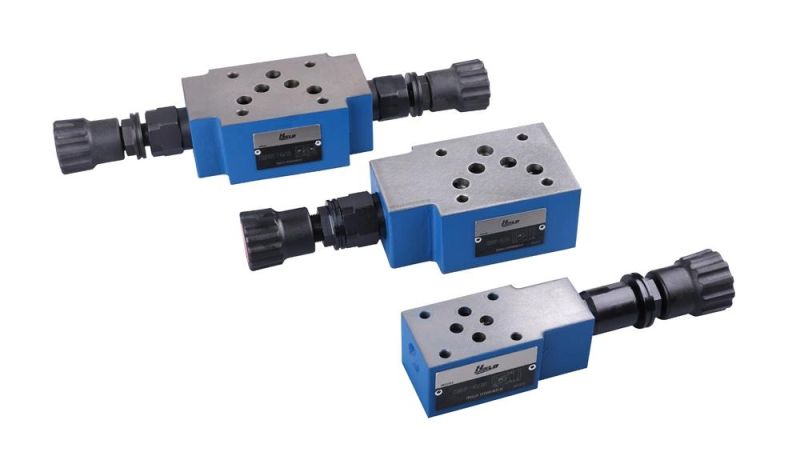

2. Product Photos

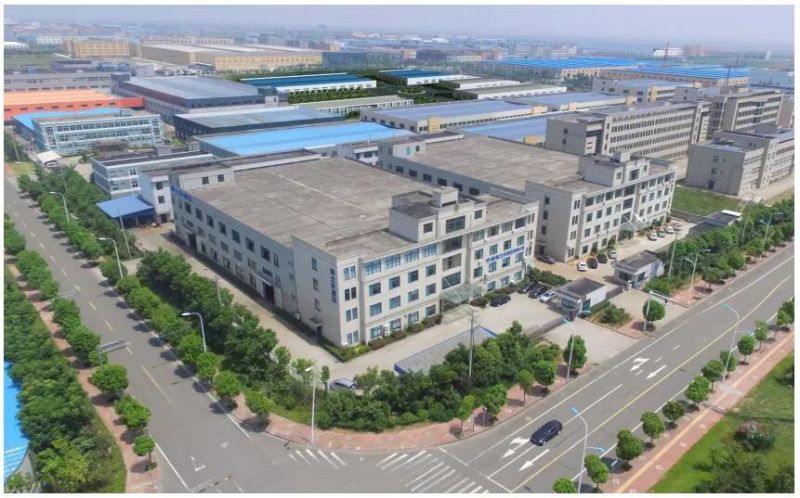

3. Company Profile

      NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
      The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
     We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.


4. Certificates

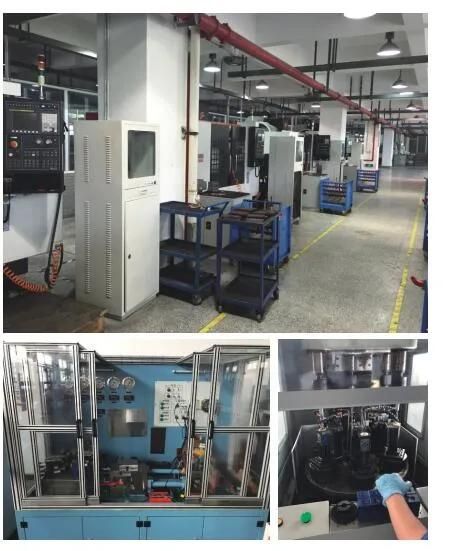

5. Factory

6. FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
