Hydraulic Parts

Home > Product > Hydraulic Cylinder

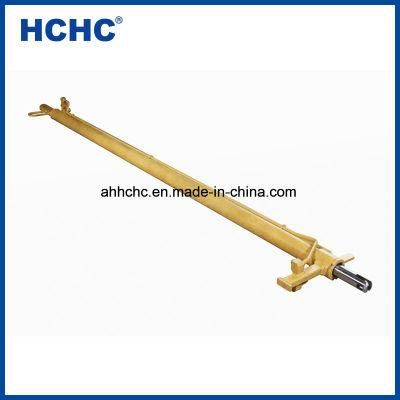

Top Quality Two Way Hydraulic Cylinder Hsg01-100/50

HEFEI CHANGYUAN HYDRAULIC CO., LTD.
  • Certification：ISO9001
  • Pressure：High Pressure
  • Work Temperature：Normal Temperature
  • Acting Way：Double Acting
  • Working Method：Straight Trip
  • Adjusted Form：Regulated Type

Base Info

  • Model NO.：HSG01-100,50-284*630A-00
  • Structure：Piston Type
  • Material：Carbon Steel
  • Body Material：Carbon Steel
  • Power：Hydraulic
  • Bore Diameter：100 mm
  • Rod Diameter：50 mm
  • Stroke：284 mm
  • Nominal Pressure：200 Bar
  • Type：Hydraulic Cylinder
  • Warranty：1 Year
  • Certificate：ISO9001:2008
  • Application：Trucks, Forklift, Crane, Loader, Road Machinery
  • Transport Package：Exported Standard
  • Trademark：HCHC
  • Origin：Anhui, China
  • Production Capacity：5000 Pieces Per Month

Description

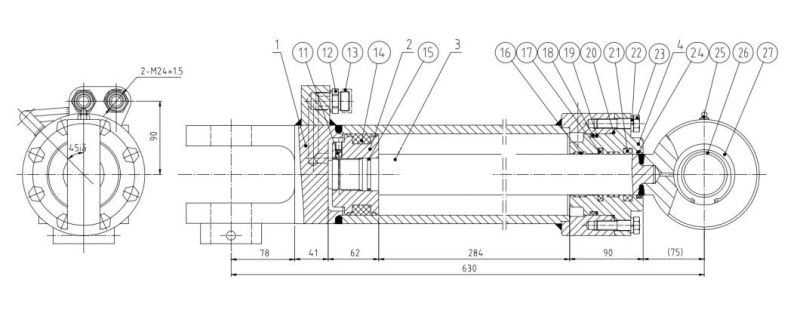

ModelBore Diameter
(mm)Rod Diameter
(mm)Stroke
(mm)Nominal Pressure
(bar)HSG01-100/50-284*630A-0010050284200
Top Quality Two Way Hydraulic Cylinder Hsg01-100/50Top Quality Two Way Hydraulic Cylinder Hsg01-100/50
Top Quality Two Way Hydraulic Cylinder Hsg01-100/50
Top Quality Two Way Hydraulic Cylinder Hsg01-100/50
