Geroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic Motor

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE
  • Type：-
  • Transport Package：Carton Packing
  • Specification：BMS
  • Trademark：Hanjiu Hydraulic
  • Origin：China

Base Info

  • Model NO.：BMS ,OMS,2K
  • HS Code：84122910
  • Production Capacity：300, 000 Pieces, Year

Description

TypeBMS
BMSE
80BMS
BMSE
100BMS
BMSE
125BMS
BMSE
160BMS
BMSE
200BMS
BMSE
250BMS
BMSE
315BMS
BMSE
375Geometric displacement
(cm3 /rev.)80.6100.8125157.2200252314.5370Max. speed (rpm)cont.800748600470375300240200int.988900720560450360280240Max. torque (N·m)cont.190240310316400450560536int.240300370430466540658645peak260320400472650690740751Max. output (kW)cont.15.918.819.515.615.714.114.111.8int.20.123.523.221.218.31718.917Max. pressure drop (MPa)cont.17.517.517.5151412.51210int.2121212116161412peak22.522.522.522.522.52018.514Max. flow (L/min)cont.6575757575757575int.8090909090909090Max. inlet pressure (MPa)cont.2525252525252525int.3030303030303030Weight (kg)9.81010.310.711.111.612.312.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

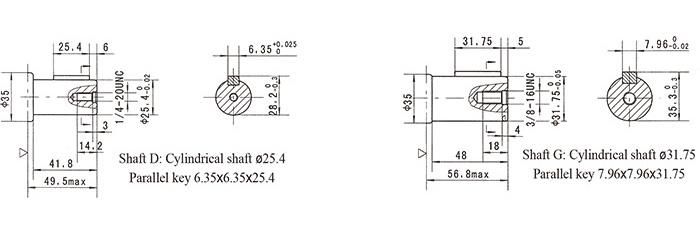

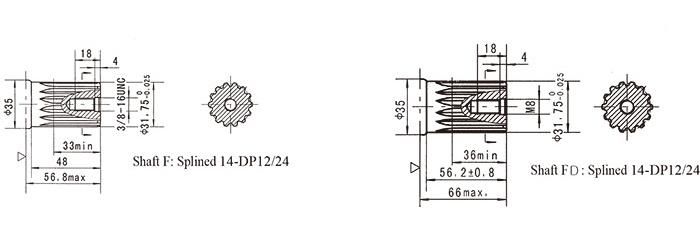

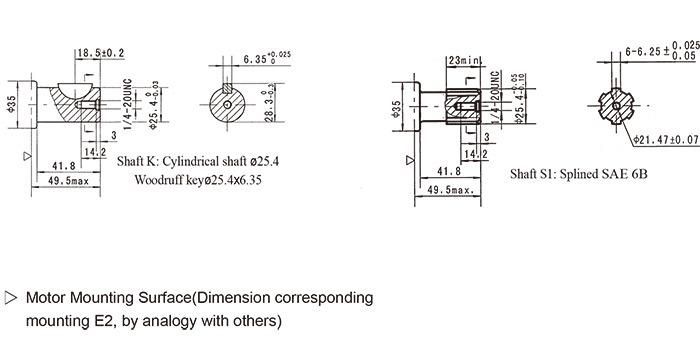

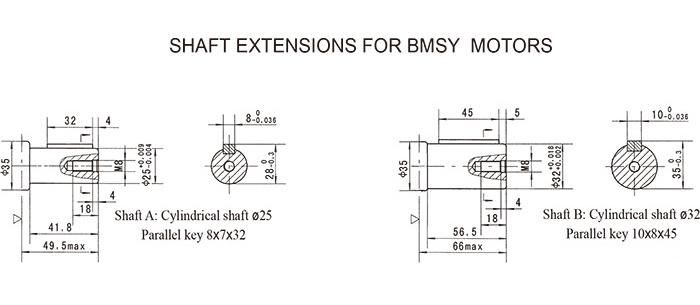

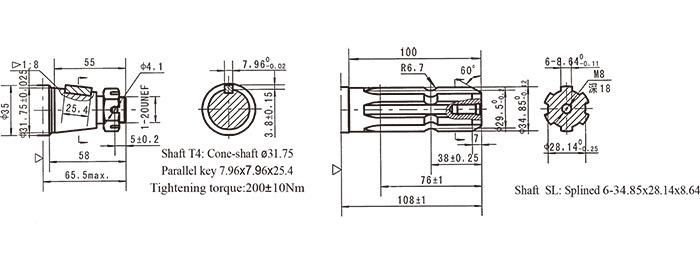

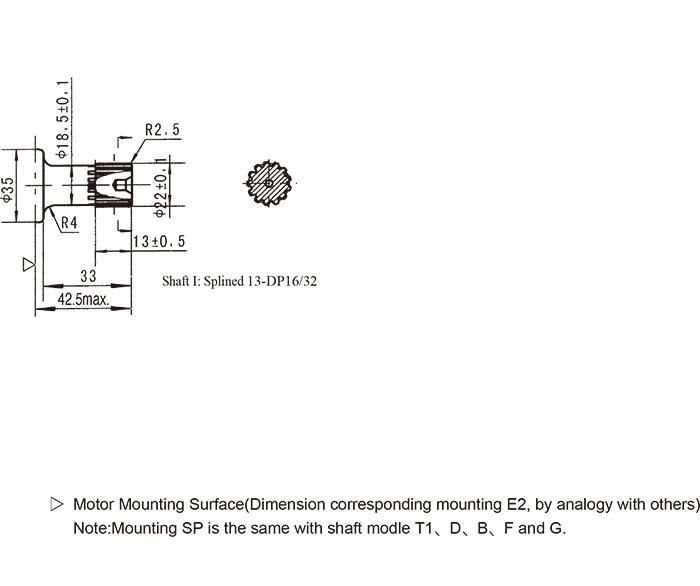

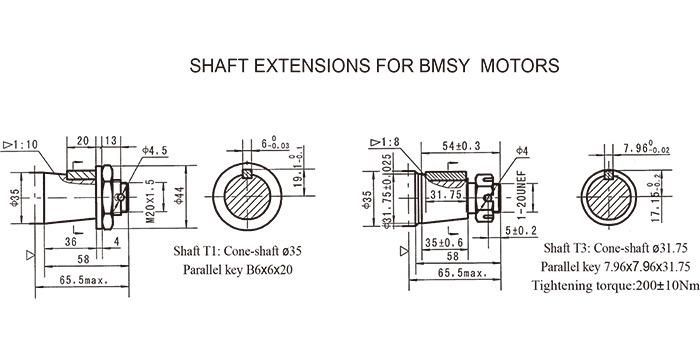

BMS Dimensions and Mounting Data



 Geroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic MotorGeroler Gear Set Designed with Disc Distribution Flow Omsy200 Hydraulic Motor






Applications:

Hydraulic Motors have widely applications, such as conveyor drives, agricultural machines, construction machines, transmission and lift equioment, etc.
BMS Motor can apply to winches, cranes, drill, etc

Shijiazhuang Hanjiu Technology Co., Ltd. is a professional manufacturer of BM series cycloidal hydraulic motors and BZZ steering gears. Our factory has dozens of highly qualified and professional engineers and technicians, and introduced many advanced machines in 2010. The production facilities are large-scale factories in northern China and produce more than 300,000 units each year.
  Our factory specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace Danfoss, Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
  My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.

Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
