• Model NO.：BMS100 BMS315 BMS200 BMS160
• HS Code：84122910
• Production Capacity：500, 000 Sets Per Year

TypeBMS
BMSE
80BMS
BMSE
100BMS
BMSE
125BMS
BMSE
160BMS
BMSE
200BMS
BMSE
250BMS
BMSE
315BMS
BMSE
375Geometric displacement
(cm3 /rev.)80.6100.8125157.2200252314.5370Max. speed (rpm)cont.800748600470375300240200int.988900720560450360280240Max. torque (N·m)cont.190240310316400450560536int.240300370430466540658645peak260320400472650690740751Max. output (kW)cont.15.918.819.515.615.714.114.111.8int.20.123.523.221.218.31718.917Max. pressure drop (MPa)cont.17.517.517.5151412.51210int.2121212116161412peak22.522.522.522.522.52018.514Max. flow (L/min)cont.6575757575757575int.8090909090909090Max. inlet pressure (MPa)cont.2525252525252525int.3030303030303030Weight (kg)9.81010.310.711.111.612.312.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

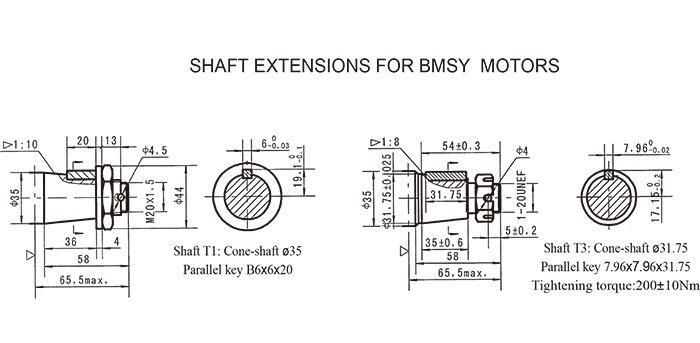

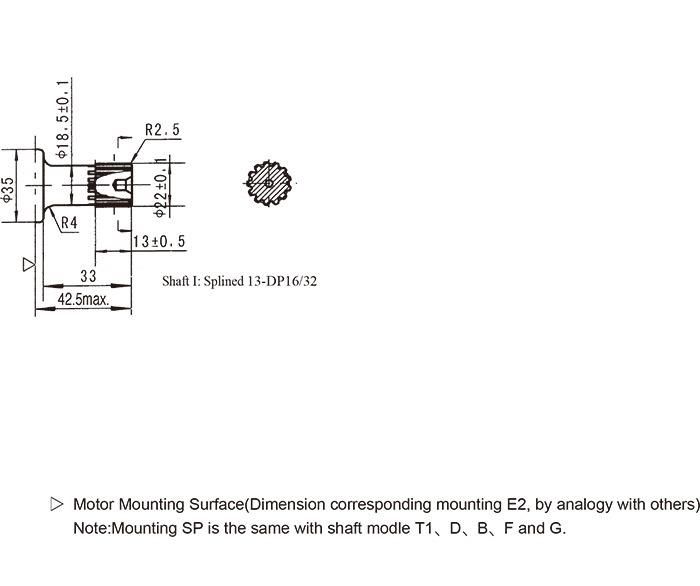

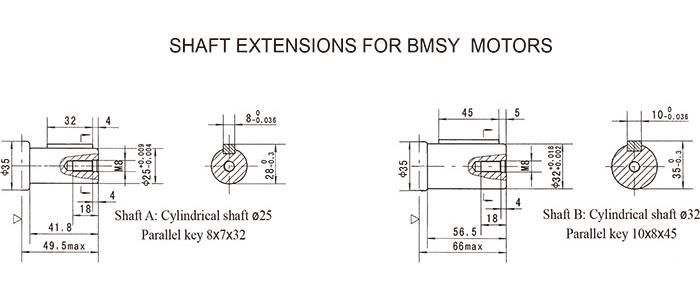

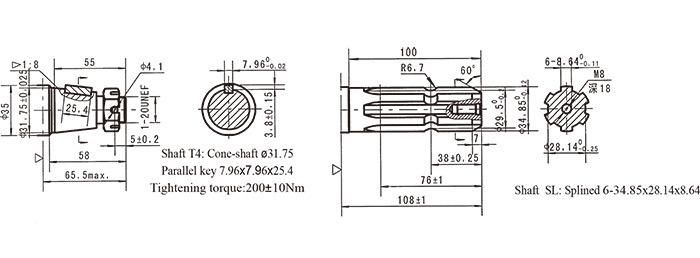

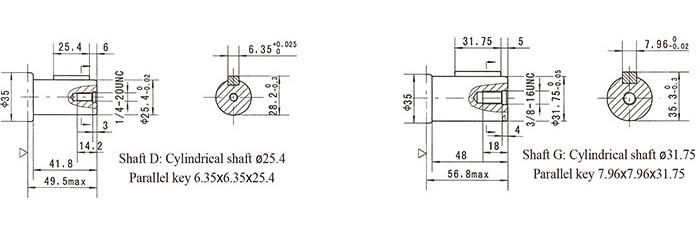

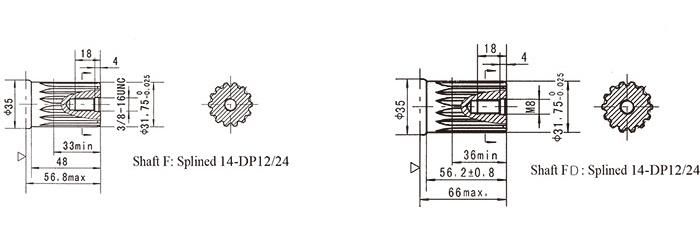

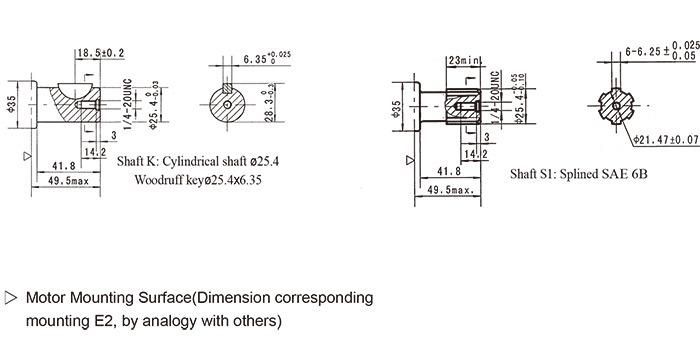

BMS Dimensions and Mounting Data













Applications:

Hydraulic Motors have widely applications, such as conveyor drives, agricultural machines, construction machines, transmission and lift equioment, etc.
BMS Motor can apply to winches, cranes, drill, etc

Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace danfoss, Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.


Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
