Hot Sale Hydraulic Cylinder for Dump Truck/Trailer

Shandong Wantong Hydraulic Co., Ltd.
  • Certification：CE, ISO9001
  • Pressure：16MPa 20MPa
  • Work Temperature：-30ºC ~ 80ºC
  • Acting Way：Single Acting
  • Working Method：Straight Trip
  • Rated Pressure：20MPa

Base Info

  • Model NO.：no standard
  • Lift Capacity：51-84t
  • Transport Package：Plywood Tray
  • Specification：TS16949&CE&SGS
  • Trademark：Wantong Hydraulic
  • Origin：Shandong Qingdao
  • HS Code：8412210000
  • Production Capacity：200, 000sets,Year

Description

Basic Info.

Model NO. no standard Lift Capacity 51-84t Transport Package Plywood Tray Specification TS16949&CE&SGS Trademark Wantong Hydraulic Origin Shandong Qingdao HS Code 8412210000 Production Capacity 200, 000sets/Year

Product Description

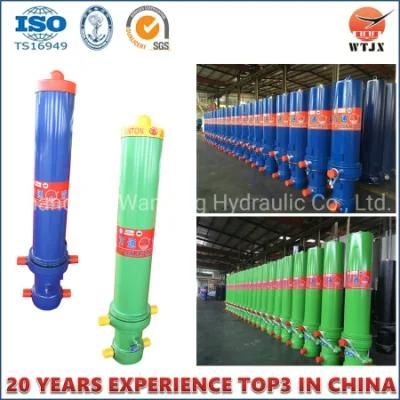

Hot Sale Hydraulic Cylinder for Dump Truck/Trailer
Hot Sale Hydraulic Cylinder for Dump Truck/Trailer



MODEL NO.
MAX LIFTING
CAPACITY
(T)
RATED
PRESSURE
(MPa)
BORE DIA
(mm)		A
(mm)		B
(mm)		C
(mm)		D
(mm)		E
(mm)		F
(mm)		L
(mm)		G
(mm)		H
(mm)
WTFC 4TG-E152*4280ZJ28.316158/136/115/952453853604903352721450195±10420±10
WTFC 5TG-E152*4280ZJ28.316158/136/115/95/752453853604903352721195195±10420±10
WTFC 4TG-E160*5390ZJ32.216166/141/115/95/752453853604903352721725195±10420±10
WTFC 4TG-F175*4280ZJ4920181/158/136/1152453853604903352721460195±10420±10
WTFC 4TG-F175*5390ZJ4920181/158/136/1152453853604903352721740195±10420±10
WTFC 4TG-F175*5700ZJ4920181/158/136/1152453853604903352721820195±10420±10
WTFC 5TG-F175*5390ZJ4920181/158/136/115/952453853604903352721455195±10420±10
WTFC 5TG-F175*5700ZJ4920181/158/136/115/952453853604903352721500195±10420±10
WTFC 4TG-F185*4650ZJ54.820191/166/141/1152453853604903352721560195±10420±10
WTFC 4TG-F185*5000ZJ54.820191/166/141/1152453853604903352721645195±10420±10
WTFC 4TG-F185*5700ZJ54.820191/166/141/1152453853604903352721820195±10420±10
WTFC 4TG-F185*6180ZJ54.820191/166/141/1152453853604903352721935195±10420±10
WTFC 5TG-F185*5000ZJ54.820191/166/141/115/952453853604903352721355195±10420±10
WTFC 4TG-F200*6000ZJ6420206/181/158/1362704103604903352721900220±10420±10
WTFC 5TG-F200*6500ZJ6420206/181/158/136/1152704103604903352721630220±10420±10
WTFC 4TG-F175*4280BH4920181/158/136/1152654053404703252441460215±10400±10
WTFC 4TG-F175*4650BH4920181/158/136/1152654053404703252441555215±10400±10
WTFC 4TG-F175*5390BH4920181/158/136/1152654053404703252441740215±10400±10
WTFC 4TG-F185*5700BH54.820191/166/141/1152654053404703252441820215±10400±10
WTFC 4TG-F185*6000BH54.820191/166/141/1152654053404703252441890215±10400±10
WTFC 4TG-F185*6180BH54.820191/166/141/1152654053404703252441935215±10400±10
WTFC 4TG-F200*6000BH6420206/181/158/1362654053404703252441900215±10400±10
WTFC 4TG-F175*4280JT4920181/158/136/1152453853404703252441460195±10400±10
WTFC 4TG-F175*4650JT4920181/158/136/1152453853404703252441555195±10400±10
WTFC 4TG-F175*5390JT4920181/158/136/1152453853404703252441740195±10400±10
WTFC 4TG-F200*5700JT6420206/181/158/1362704103604903252721825220±10420±10
WTFC 4TG-F200*6180JT6420206/181/158/1362704103604903252721945220±10420±10
WTFC 4TG-F175*4450HT4920181/158/136/1152654053404703452441460215±10420±10
WTFC 5TG-F200*6180AF6420206/181/158/136/1152704103604903252721630220±10420±10

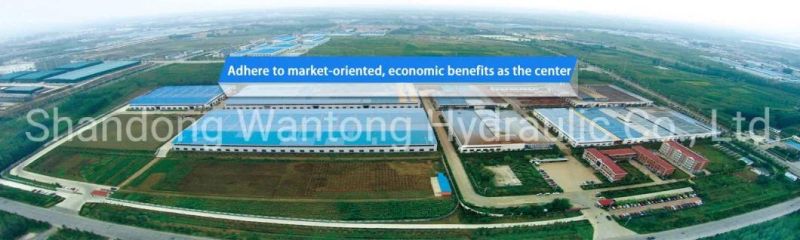

Company profile

Hot Sale Hydraulic Cylinder for Dump Truck/Trailer



*History: 22 Years of history, the registered capital of 60 million yuan
*Scale: 180000 square meters,with 500 employees
*Capacity:Annual production of more than 200,000 sets
*Equipment:700set ,invested a large amount of money in introducing one electroplating production line.
*Certificate:ISO9001,ISO/TS16949,ABS,AQA etc
*Delivery time:20 Days
*Service:52 Service Outlets nationwide,24-hour Service
*Accept Custom



Product Details

Cylinder Tube O.D. 203mm--274mm
Operating Pressure 16-20Mpa
Numbers of Stage  3,4,5
Largest Moving Stage Diameter 110mm--254mm
Stroke 4280mm--6180mm;
Closed Length 1195mm-- 1945mm
Extended Length 5475mm--8125mm
Oil portG1/1"SAE
Warranty Period14 months after date of production
Upper Gear width245-270mm
Lower Gear width340-360mm
Shaft Coarse65,60
Installation distance325-335mm

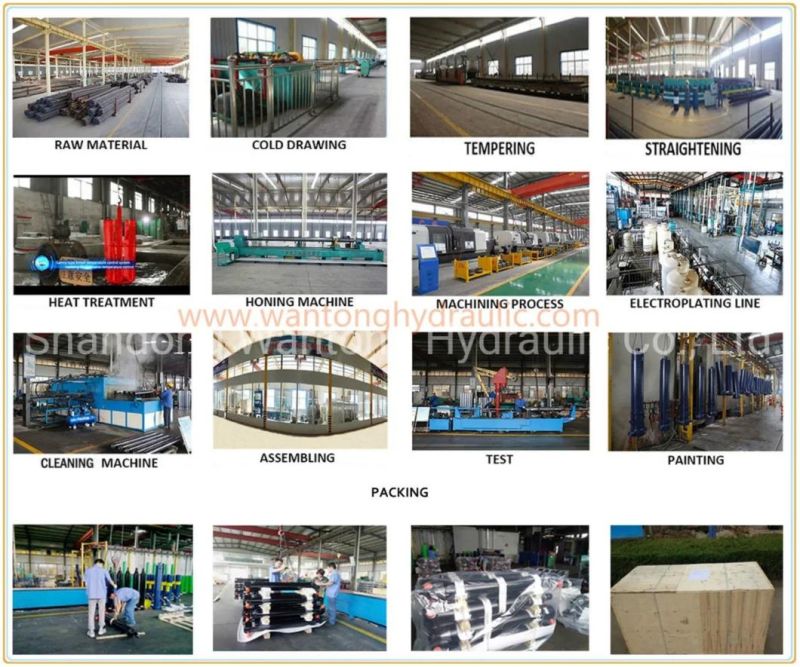

Product line

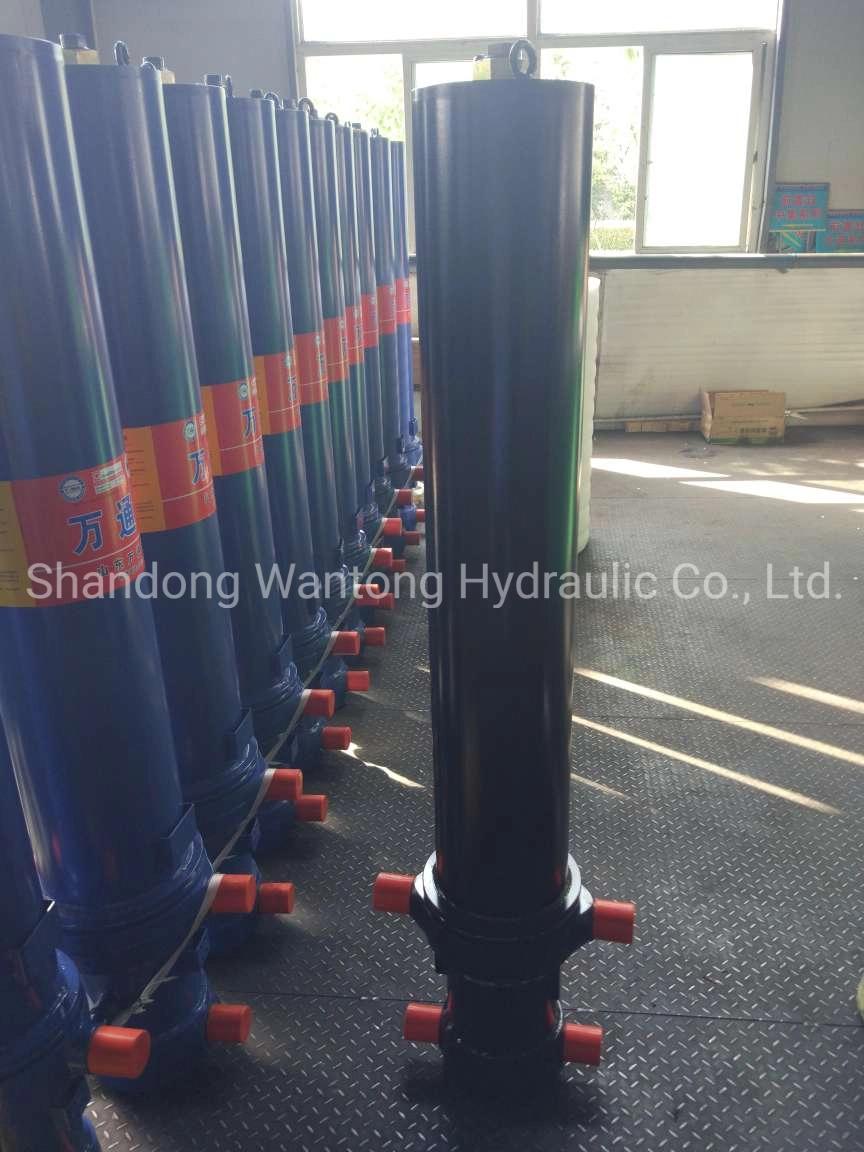

Hot Sale Hydraulic Cylinder for Dump Truck/Trailer

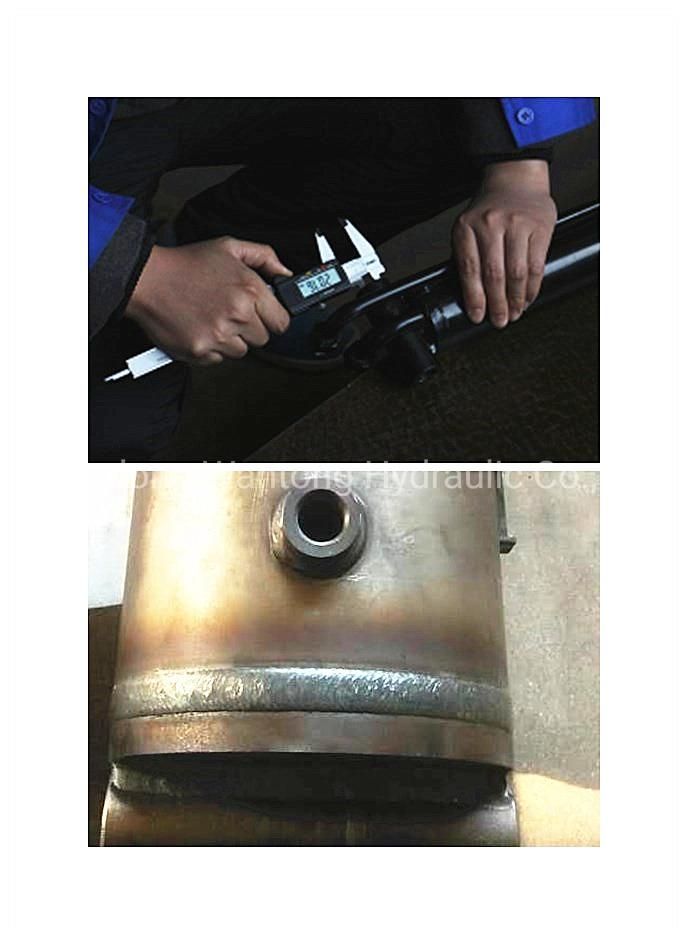

telescopic hydraulic cylinder quality guarantee system

Hot Sale Hydraulic Cylinder for Dump Truck/Trailer

Program before Delivery

1. Trial Operation Test

2. Start-up Pressure Test

3. Pressure-Tight Test

4. Leak Test

5. Full Stroke Test

6. Buffer Test

7. Testing the Effect of Limit

8. Load Efficiency Test

9. Reliability Test


Certificate
Hot Sale Hydraulic Cylinder for Dump Truck/Trailer

Why Wantong?

1.Complete Manufacturing Processes:
The company has complete and total manufacturing processes from raw material entering to factory and up to the final finished products to customer.Which all are done under same premises.Therefore we can control the quality and delivery time at our best.

2.Strict Quality Control system:
We have gained ISO/TS16949, CCRI, CCS, and DNV AND ABS, API,etc and the quality of the products has been controlled in strict accordance with the certification standard.

3.Rich Market Experiences:
Many years cooperation with famous brands,likeSINOTRUK,CIMC,SHACMAN,ZMJ and YANKUANG GROUP.


FAQ:

 Q1: Are you a manufacture or a trade company?
Answer:
Manufacture, we are the leader manufacturer of hydraulic industry in China with 20 years experience and technology.

Q2: Do you have quality control system?
Answer:
Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

Q3: How can i get a booklet and buy a cylinder from you?
Answer:
Very easy! Just leave me a message or email and tell me your requirement, let me know you are interesting in our products.I will talk with you for the details soon!

Q4: Can you tell me the price for the cylinder?
Answer:
1. Please help inform your drawing with detail requirement.
2. Please help inform the cylinder NO. after you check our booklet.
3. Please help inform the tipping capacity, strokes, number of stages, closed length, mounting type and size and other information.
4. Please also help inform the quantities, this is very important.
5. Your destination port.

Q5: Do your products come with a warranty?
 Answer:
Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.

Q6: Can I customize our products from you?
 Answer:
Yes, we can make products according to your requirements. Please kindly send me your specifications and drawings.

Q7: Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?
 Answer:
Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need.

Q8: What is the delivery time?
Answer:
Within 15 days for samples.
20 days for mass production, which is depend on quality, production process and so on.

Q9: What is your main payment itme?
 Answer: T/T and L/C.
Hot Sale Hydraulic Cylinder for Dump Truck/Trailer


Dream
*Company vision:Act as the laeder of internal hydraulic industry
*Enterprise concept:Better and stronger
*Core values:Learning and innovation,equality and justice,customers the first,and quality winning the world
*Enterprise spirit:Complete sincerity,complete precision more excellent,and up to date
*Quality policy:Pursue zero defects of our products,and realize zeo customers' complains
*Company type:Respond quickly,act immediately,finish what to do today,and improve day after day
