New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Certification：ISO9001 Ce
  • Excitation Mode：Compound
  • Power Rating：2000W
  • Casing Protection：Protection Type
  • Number of Poles：6
  • Speed：High Speed

Base Info

  • Model NO.：Eaton JA motor
  • Type：Hydraulic Motor
  • Usage：Hydraulic Oil
  • Application：Plastic Machine, Agriculture Machine
  • Motor Flange Shape：Square and Rhombus Flange
  • Motor Material：Cast Iron
  • Processing：Forging & Cutting &Phosphating
  • Motor Shafts：Straight, Splined and Tapered
  • Colour：Black,Gray or as Your Request
  • Warranty：One Year
  • Hydraulic Power Units：Vane Pump
  • Hydraulic Actuator：Hydraulic Motor
  • Transport Package：Industrial Plastic Bag+Carton
  • Specification：CE, ISO9001
  • Trademark：blince
  • Origin：Guangdong
  • HS Code：8412291000
  • Production Capacity：60000

Description

Geometric displacement (cm3/r)100160200250Max.speed.(rpm)con.493307254219 int.528329269234Max.torque(N.m)cont.133190215260 int.151225260306Max.output(KW)cont.8.010.010.011.0 int11.512.012.013.0Max.pressure
Drop(bar)cont.110979085 int124115110100
Max.flow(L/min)cont.53535353 int.57575768
Item: hydraulic motor
Displacement(Cu.In./Rex.):100cc/160cc/200cc/250cc
Shaft type: flat key  A8*7*32mm
Shaft Dia.(In): 25mm
Port Type:  G1/2
Flange Mount: 2 holes. Diameter: 106.4mm. pilot: 82.55mm

New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP
New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP
New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP
New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP
New Eaton Ja Series Hydraulic Motor Replace Omp/BMP/OMR/BMP

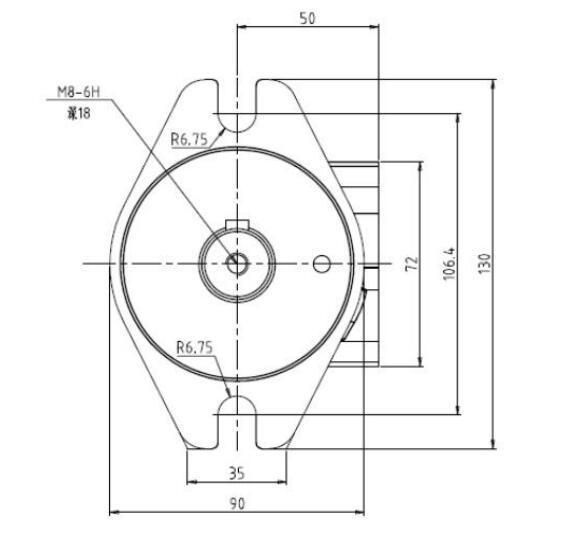

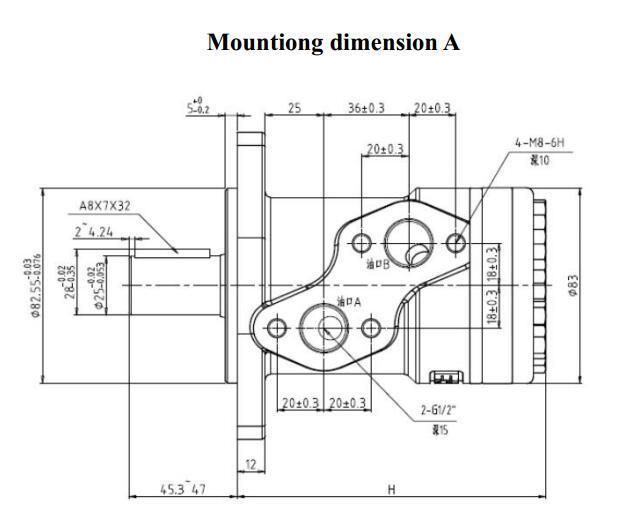

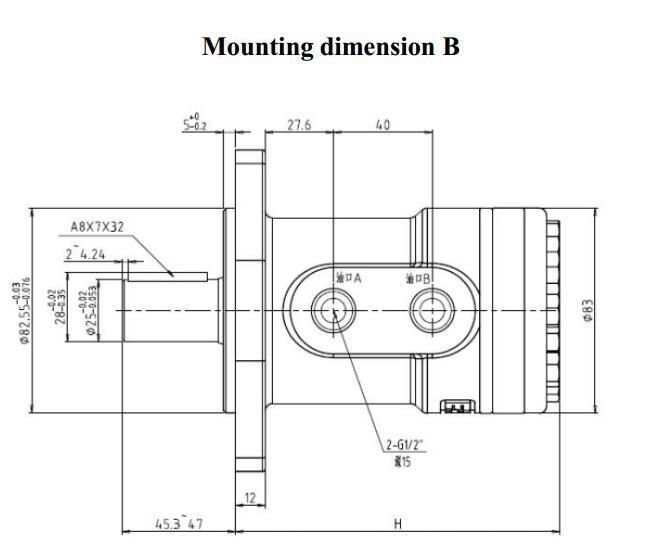

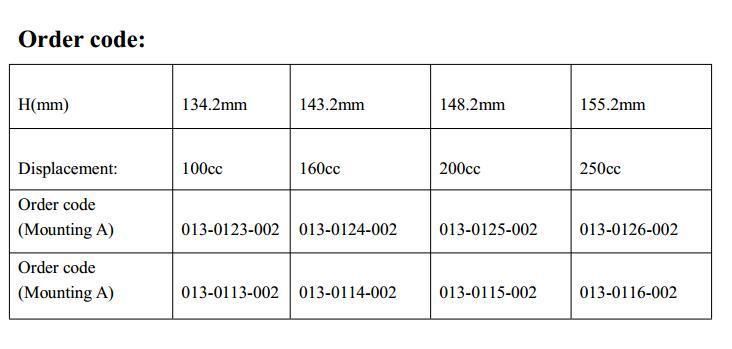

Please reference the drawing and the order code,choice the model you want !!!
Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY
/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V/VQ series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
