• Model NO.：Air Directional Control Valve
• Application：General
• Material：Casting
• Pressure：Medium Pressure
• Structure：Control
• Standard or Nonstandard：Standard
• Selling Units：Single Item
• Temperature of Media：Normal Temperature
• Name：Stacked Pressure Reducing Valve
• Transport Package：Box and Carton Package
• Specification：hydraulic
• Trademark：XLF
• Origin：China
• HS Code：8481201000
• Production Capacity：3000sets,Month

Basic Info.

Model NO. Air Directional Control Valve Application General Material Casting Pressure Medium Pressure Structure Control Standard or Nonstandard Standard Selling Units Single Item Temperature of Media Normal Temperature Name Stacked Pressure Reducing Valve Transport Package Box and Carton Package Specification hydraulic Trademark XLF Origin China HS Code 8481201000 Production Capacity 3000sets/Month

Product Description

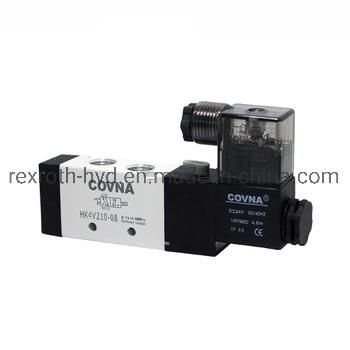

4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Air Directional Control Valve

Advantages:

• MOQ: 1 set
• 19 years of valve manufacturing experience
• Strong inventory, part of commission returned for bulk delay
• Product quality will be guaranteed for 1 year (12 Months)
• OEM service to help customers to promote their brands
• Offer various international standard, ANSI, JIS, DIN, etc
• Custom complaints handed by one stop professional service.
• Inquiry will be replied within 8 hours

Item	4V210-08 PT1/4 inch 2 Position 5 Way DC 12V Air Directional Control Valve
Valve Type	5/2 Way
Effective Area	16mm2 (Cv=0.89)
Port Size	Inlet=Outlet=Exhaust Port=G1/4"
Fluid	40μm Filtered Air
Operation	Internal Pilot Operated
Operating Pressure	1.5~0.8kgf/cm2
Proof Pressure	10.5kgf/cm2
Ambient Temperature	0~60°C
Voltage Tolerance	±10%
Power Consumption	AC: 1.3W    DC: 1.5W
Connector Protection	Class F, IP65
Connection	Cable, Lead Wire or DIN Connector
Switching Frequency	5 Cycles / Sec
Response Time	0.05 Sec

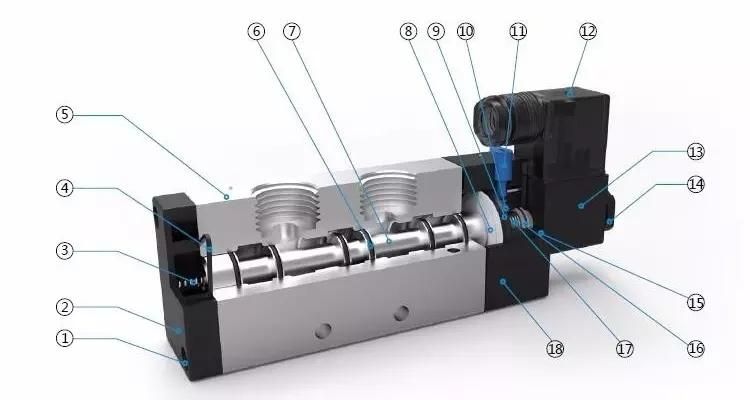

Internal Structure



#	Components	#	Components
1	Cross Slot Pan Screw	10	Spring
2	Back Cover	11	Mannual Ride Spindle
3	Spring	12	Terminal
4	Anomalous Seal	13	Coil
5	Valve Body	14	Coil Nut
6	Flat Ring	15	Connecting Part
7	Valve Spool	16	O Ring
8	Piston	17	Plunger
9	Y Ring	18	Piloted Valve Base

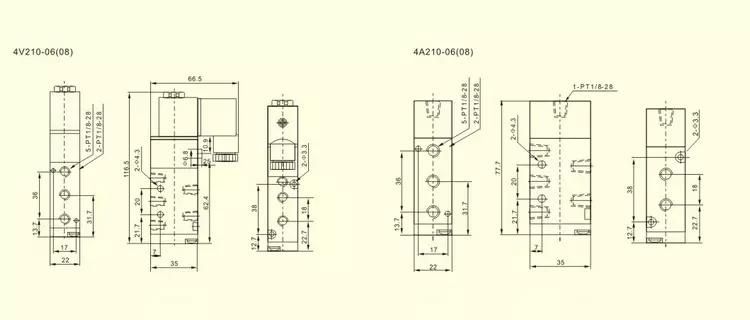

Dimension:
