Hydraulic Parts

Double Acting Hydraulic Oil Cylinder Hydraulic Jack Hsg45/36-1460*1715-Wx

HEFEI CHANGYUAN HYDRAULIC CO., LTD.
  • Certification:ISO9001
  • Pressure:High Pressure
  • Work Temperature:Normal Temperature
  • Acting Way:Double Acting
  • Working Method:Straight Trip
  • Adjusted Form:Regulated Type

Base Info

  • Model NO.:HSG45,36-1460*1715-WX
  • Structure:Piston Type
  • Material:Carbon Steel
  • Body Material:Carbon Steel
  • Power:Hydraulic
  • Bore Diameter:45 mm
  • Rod Diameter:36 mm
  • Stroke:1460 mm
  • Nominal Pressure:206 Bar
  • Type:Hydraulic Cylinder
  • Warranty:1 Year
  • Certificate:ISO9001:2008
  • Application:Trucks, Forklift, Crane, Loader, Road Machinery
  • Transport Package:Exported Standard

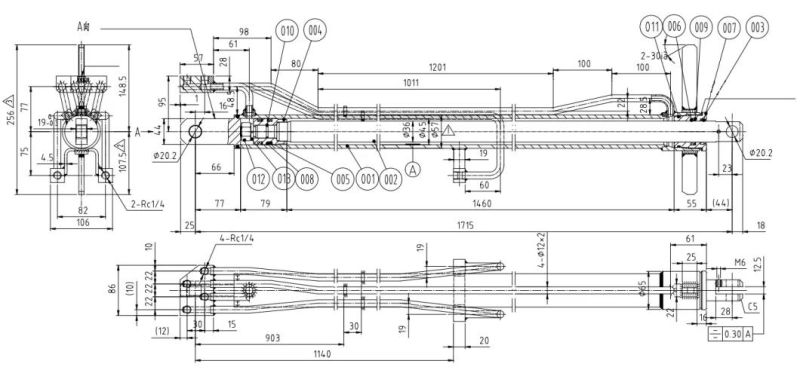

  • Specification:as drawing
  • Trademark:HCHC
  • Origin:Anhui, China
  • Production Capacity:5000 Pieces Per Month

Description

ModelBore Diameter
(mm)
Rod Diameter
(mm)
Stroke
(mm)
Nominal Pressure
(bar)
HSG45/36-1460*1715-WX45361460206
