• Model NO.：HSV 6-A
• HS Code：84818029
• Production Capacity：500000 Per Year

parametervalueNumber of Work Sectionsfrom 1 to 3Max working pressure315 barOperating pressure210 barRated flow50 l / minWorking temperaturefrom -30 ° С to + 50 ° СFluid viscosityfrom 20 to 400 mm ² / sFluid temperaturefrom -20 ° С to + 70 ° СFiltrationGrade 9 NAS1638Supply Voltage / Power Consumption12VDC * / 36W and 24VDC * / 29WSwitching frequency ^max15,000 times per hourDuty cycleone hundred%






Description:

HSV6 series selection valve can be realized in the different flow pressure between the oil road switch.

Multiple directional valves can be connected to feed oil into or out of different devices. Can also be connected to the oil pump, the hydraulic oil to two different oil routes.





Ordering code

HSV6---X---X---X---X

     1           2      3      4      5



1.series code

2.Model type: A/B/C

3.Number of sections:1-3( Model A,B available for stack)

4.Ports size

CodePort Thread sizeP1



G1/2



P2



G3/8



P3



7/8-14UNF




5.Solenoid type



Model type

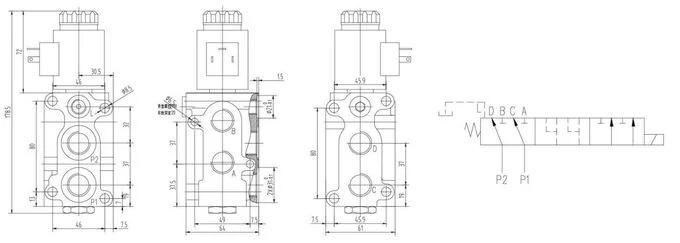

type A

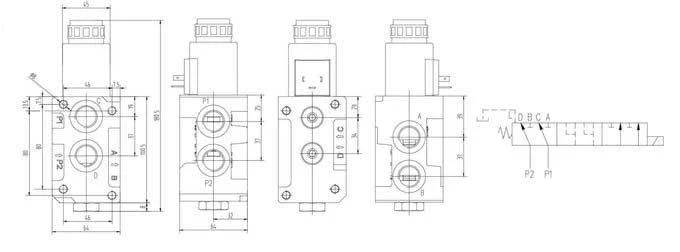

Type B

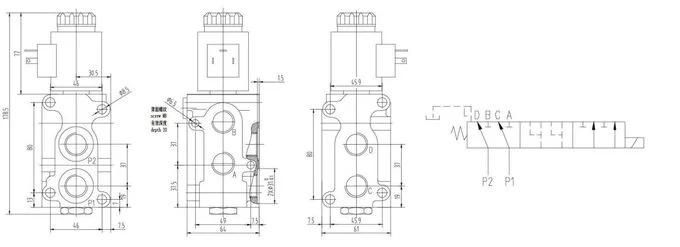

Type C







Features:

•  Works with Double or Single Acting Cylinders.
•  Allows you to easily add an additional function to your existing hydraulic system without a lot of additional plumbing or electrical components.
•  Up to 3 valves can be manifolded together with all thread rod (not included).
