Manual Directive Valve Block with 3 Levers 80 Lpm 3-4 X 1-2 Bsp 250bar 4V-3p Mod. P80-3-O
Shijiazhuang Hanjiu Technology Co., Ltd.- Function：Direction Control
- Type：-
- Transport Package：Carton Packing
- Specification：3P80
- Trademark：Hanjiu
- Origin：China
Base Info
- Model NO.：3P80
- HS Code：84818029
- Production Capacity：500000 Per Year
Description
DESCRIPTION:
Advantage:
3 coil valve with compact design that allows installations in confined areas.
All coils are standard double acting with spring return to neutral which are ideal for double acting cylinders.
It is used for open center systems (tank flow pump).
The precision ground and hard chrome coils guarantee a long service life.
High tensile strength cast iron monoblock construction
SAE O-ring ports ensure a solid seal and prevent blockages.
Capable of closed center or Power Beyond (requires conversion plug)
Vertical or horizontal handle support.
Adjustable relief valve range: 1500 to 3625 PSI.
Can also be used as a single acting motor or coil (requires SAE # 10 plug).
Characteristics:
Maximum operating pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 L / min).
Work Ports A & B: 10 SAE O-Ring (7/8 "-14) thread
Inlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
Outlet Port: # 12 SAE O-Ring (1-1 / 16 "-12) Thread
3-5 / 16 "Mounting holes

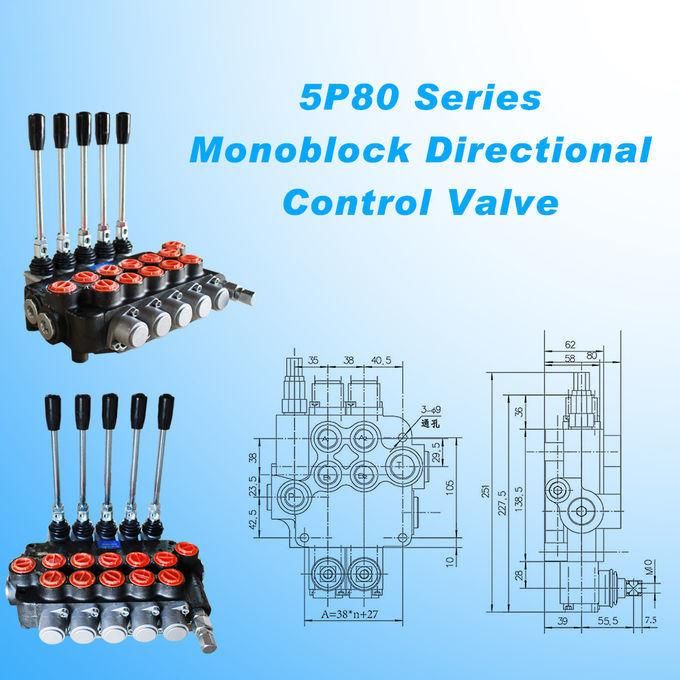

We provide Monoblock valves P80 series
Used for mobile equipment, including agriculture, forestry, fishery, mining, drilling equipment, engineering equipment, municipal equipment, etc.

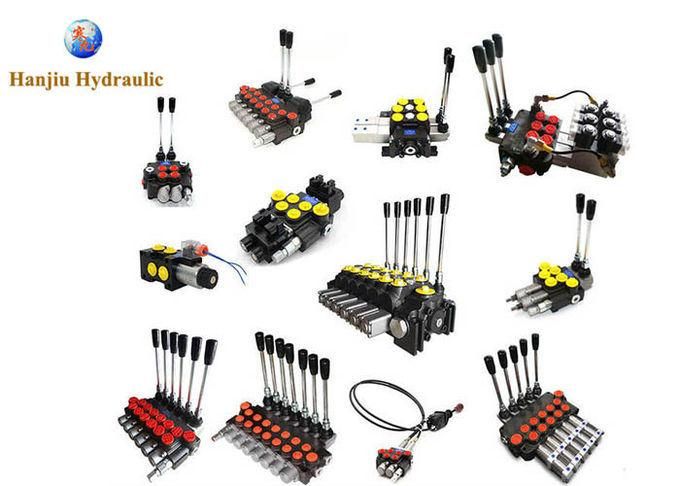

1P80, 2P80, 3P80, 4P80, 5P80, 6P80 available
Can be used to control cylinders or motors
Manual control, electromagnetic control, cable control, joystick, remote, pneumatic control and more control methods are available
The production technology comes from Italy, the quality and performance are higher than the market average, and the price is favorable. It is widely praised in Latin America. The distributors have achieved brilliant results through cooperation with us.
