• Model NO.：70575270
• Structure：Piston Type
• Material：Alloy Steel
• Transport Package：Plywood Case
• Specification：160kg
• Trademark：ROCA
• Origin：Fujian, China
• HS Code：8412210000

Basic Info.

Model NO. 70575270 Structure Piston Type Material Alloy Steel Transport Package Plywood Case Specification 160kg Trademark ROCA Origin Fujian, China HS Code 8412210000

Product Description

Company introduction
Xiamen Roca is a comprehensive manufacturing enterprise engaged in hydraulic cylinders, excavator attachment, metal casting, hydraulic components with certification approval to meet custom or OEM requirements.

ROCA owned factory offers customer effective-cost products with quality assurance. With its professional and experienced R&D team, ROCA Hydraulic devotes itself to research and development to optimize products applied in construction, mining, waster management, forestry, agriculture, etc.

Model

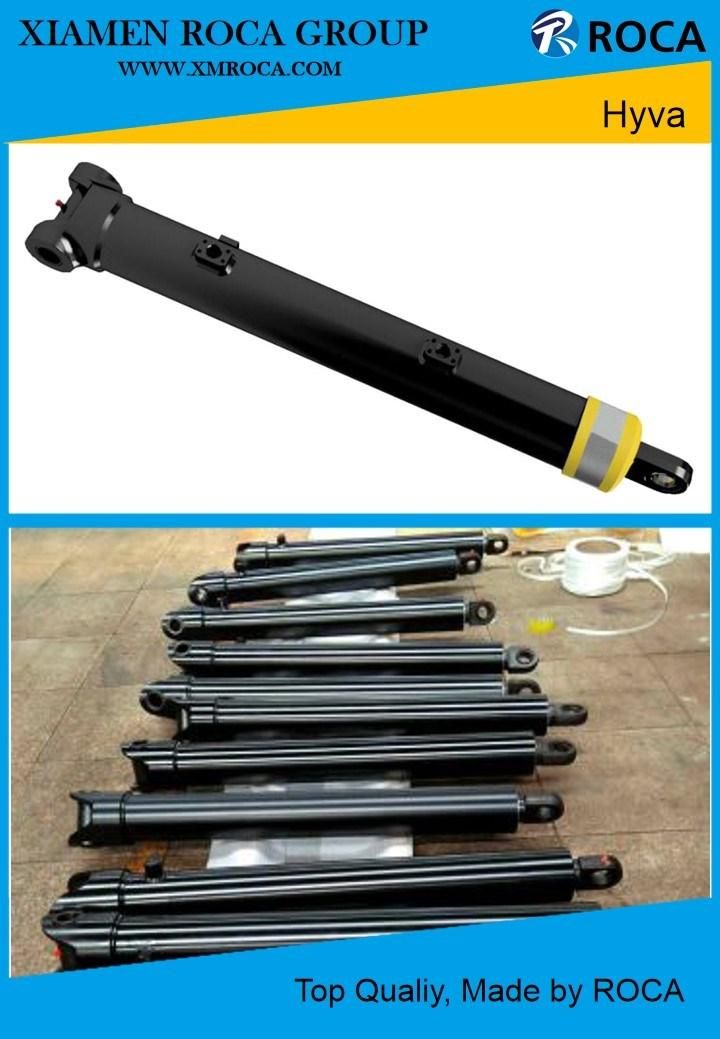

Alpha series -  Front end cylinder with double eye
FEE A149-4-04320-243-K14450
Item no.: 70575270

Product introduce
The FEE pin-to-pin cylinder is the most common telescopic in North America. These range with first stage diameters from 4.3" to 9", with strokes up to 336", and working pressures up to 3626 psi. The standard 2" spherical bearing for the top eye helps against side loads, and hard-chromed pistons keep the cylinder's life extended.


Working temperature	-40°C ~ 80°C
Max. duration of extension	0.5 hour
Color	RAL9005,Customize
Material	CK45,ST52,ST52-3,27SiMn,Customize
Seal kit	SKF, Trelleborg, Halite, Chesterton, NOK, Kayaba
Piston rod	Hard chromed
Packaging	Plywood case
Warranty	12 months
Payment	T/T

Specification

Max. Working pressure	250bar
Weight	160kg
Working volume	50L
Total volume	54L
Max. Cyl. Load (start tipping)	245kN



Extension	1	2	3	4
Diameter	149mm	129mm	110mm	91mm
stroke	1065mm	1085mm	1085mm	1085mm

Pictures
