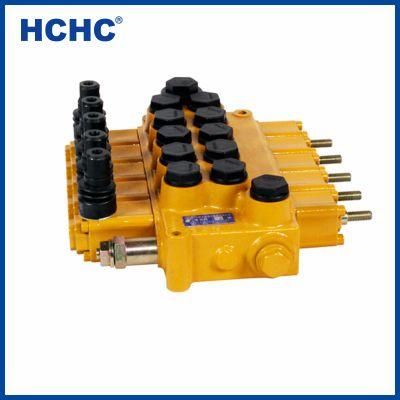

Hydraulic Multi-Way Directional Flow Control Valve Xydl-G15L

HEFEI CHANGYUAN HYDRAULIC CO., LTD.
  • Function：Flow Control
  • Installation：Superposition
  • Drive：Hydraulic
  • Type：Directly Operated Type
  • Structure：Sectional Valve
  • Nominal Pressure：250 Bar

Base Info

  • Model NO.：XYDL-G15L
  • Nominal Size：15 mm
  • Nominal Flow Rate：65 L,Min
  • Control Pressure：7~25 Bar
  • Spool Number：1~8
  • Valve Shaft Stroke：7+7 mm
  • Warranty：1 Year
  • Certificate：ISO9001
  • Transport Package：Packed in Exported Standard

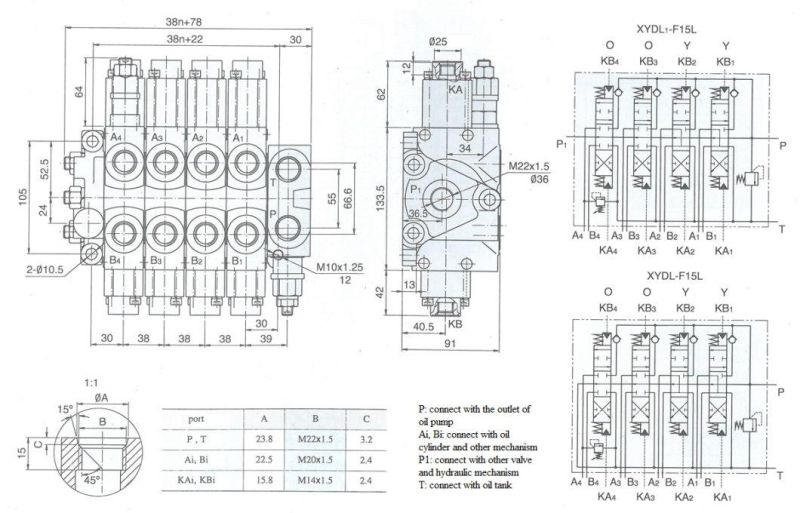

  • Specification：As drawing
  • Trademark：HCHC
  • Origin：Anhui, China
  • Production Capacity：5000 Sets Per Month

Description

Nominal Pressure
(bar)Nominal Size
(mm)Nominal Flow Rate
(L/min)Control Pressure
(bar)Valve Shaft Stroke
(mm)Spool Number
nWeight
(kg)25015657~257+71~82.9+2.7nHydraulic Multi-Way Directional Flow Control Valve Xydl-G15L
