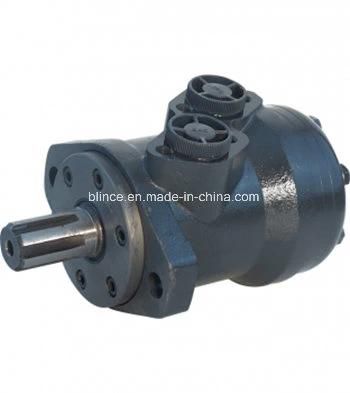

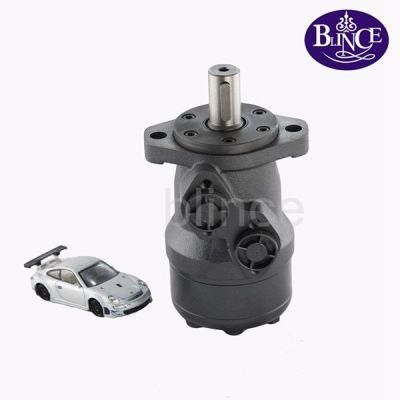

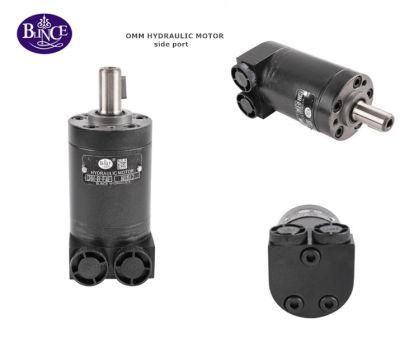

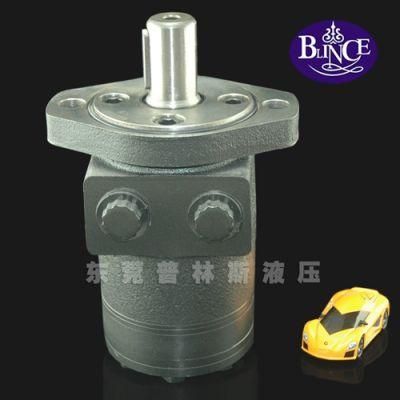

Mini High Speed Compact Omm 50 Orbit Hydraulic Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE
- Power Rating：2.4kw
- Speed：High Speed
- Type：Orbital Motor
- Displacement：8.2cc
- Highest Speed (Cont.)：1950rmp
Base Info
- Model NO.：omm 50
- Highest Torque (Cont.)：11nm
- Highest Output Power (Cont.)：1.8kw
- Highest Operating Pressure(Cont.)：10MPa
- Highest Flow (Cont.)：16L,Min
- Weight (Cont.)：1.9kg
- Inlet Pressure (Cont.)：17.5
- High(Not Include The Shaft)：104
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：CE, CCC, ISO
- Trademark：Blince
- Origin：Dongguan, China
- HS Code：8413602220
- Production Capacity：3000 Per Month
Description
ypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
Blince profssion supply all series hydraulic motor like:
OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
