• Model NO.：OMSY80,125,160,200,250,315,375
• Max Speed：Contin155rpm
• Max Torque：Contin 365 N.M
• Output Shaft：25mm,32mm,25.4mm Parallel Key, Splined Key
• Flange：Circle-Flange, Rhomb-Flange
• Motor of Material：Cast Iron
• Replace：Danfoss, Eaton, M+S, Parker
• Assignment Forms：Axial Flow
• Warranty：12 Months
• OEM：Accept
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：1000000 PCS,Year

Basic Info.

Model NO. OMSY80/125/160/200/250/315/375 Max Speed Contin155rpm Max Torque Contin 365 N.M Output Shaft 25mm/32mm/25.4mm Parallel Key, Splined Key Flange Circle-Flange, Rhomb-Flange Motor of Material Cast Iron Replace Danfoss, Eaton, M+S, Parker Assignment Forms Axial Flow Warranty 12 Months OEM Accept Transport Package Sale Packing Contians Carton or Wood Case Specification CE Trademark Blince Origin Guangdong, China (Mainland) HS Code 8412291000 Production Capacity 1000000 PCS/Year

Product Description

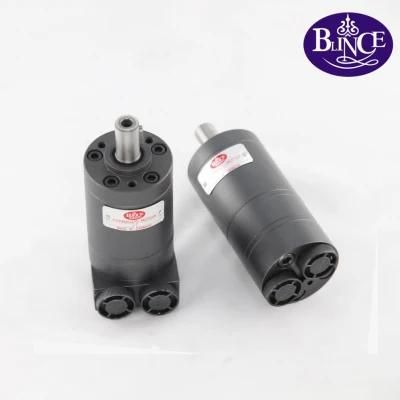

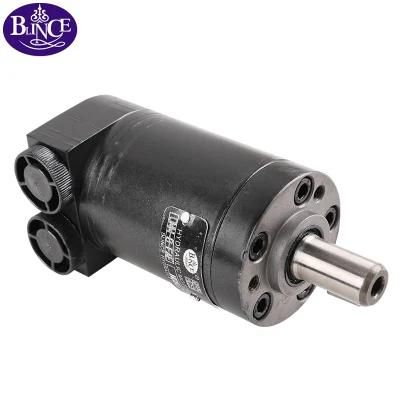

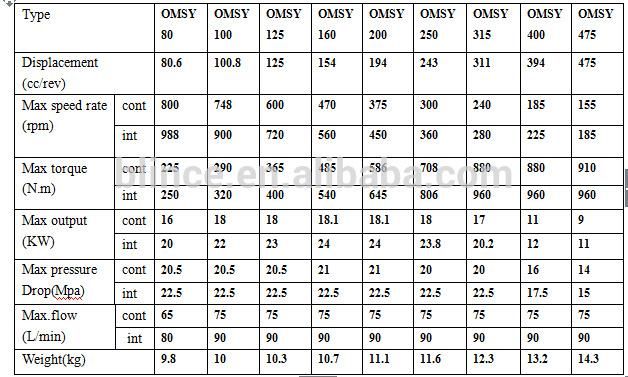

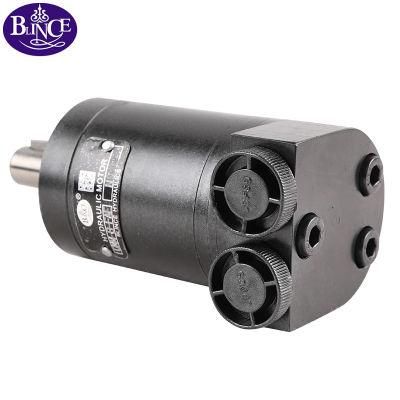

Blince micro Hydraulic motor OMSY series


choose Model like: OMSY250-F4-B-D


Flange:
  E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
  E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
  F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
  W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
  E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
  SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
  D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
  E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3

Shaft:
 A: Shaft Ø25 , parallel key 8×7×32
 B: Shaft Ø32 , parallel key 10×8×45
 D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
 G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
 F: Shaft Ø31.75 ,splined tooth 14-DP12/24
 FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
 SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
 T1: Cone-shaft Ø35 ,parallel key B6×6×20
 T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
 S1: Shaft Ø25.4 ,splined tooth SAE 6B
 I: Sub-shaft Ø22,splined tooth 13-DP16/32

Port:
 D: G1/2 Manifold Mount 2-M10 , G1/4
 M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
 S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
 P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF

Benefis:
* High power density
* High effiency
* High constant quality
* Reliable

The Blince OMS series motors are used in the following application areas:
1) Construction equipment
2) Agricultural equipment
3) Material handling & Lifting equipment
4) Forestry equipment
5) Lawn and turf equipment
6) Special purpose
7) Machine tools and stationary equipment
8) Marine equipment
9) And more
