Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE, ISO9001
  • Type：-
  • Transport Package：Carton Packing
  • Specification：2000 series
  • Trademark：Hanjiu
  • Origin：China

Base Info

  • Model NO.：2000 series
  • HS Code：84122910
  • Production Capacity：500000 Per Year

Description

FeatureCodeDescriptionPRODUCTMMOTORSERIES022000 SERIESDISPLACEMENT187306.6 CM3/R [18.71 IN3/R]MOUNTING TYPEABWHEEL, 4 BOLT; 108.0 [4.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 147.6 [5.81] DIA. BOLT CIRCLE. 127.0 [5.00] DIA. REAR MOUNT PILOTOUTPUT SHAFT0331.75 [1.250] DIA. .125;1 TAPERED SHAFT PER SAE J501 WITH 1.000-20 UNEF-2A THREADED SHAFT END AND SLOTTED HEX NUT, 7.938 [.3125] SQ X 25.40 [1.000] STRAIGHT KEYPORTSAA.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTSCASE FLOW OPTION01.4375-20 UNF-2B SAE O-RING PORT





This is a Aftermarket Low Speed High Torque Motor of Eaton Char lynn 105-1007-006 / 105-1007





Form, fit, and function the same, at a substantial savings.

All units are TESTED prior to shipment, and come complete with a 1 year warranty.

Item is not in stock, delivery time according to your needed quantity, but generally within 45 days.

Questions? Give us a call 24hrs a day or email.



Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007

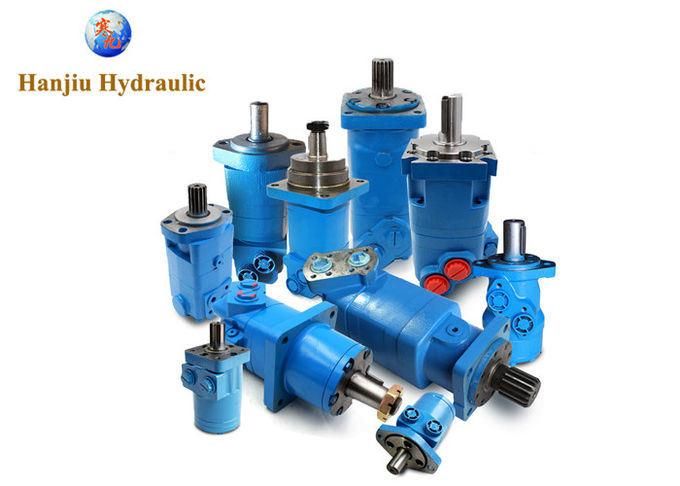

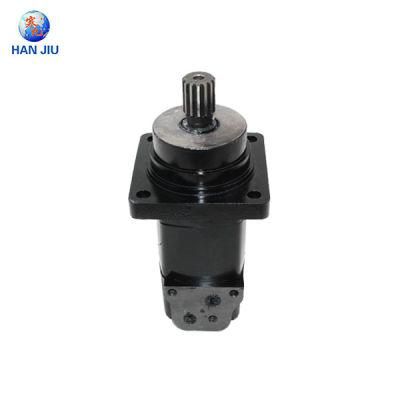

Below is reference photo of aftermarket Eaton Char lynn 105-1007-006 / 105-1007, and also more aftermarket notors of Eaton.

Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007Eaton Char Lynn Hydraulic Motor 105-1007-006 / 105-1007






A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
