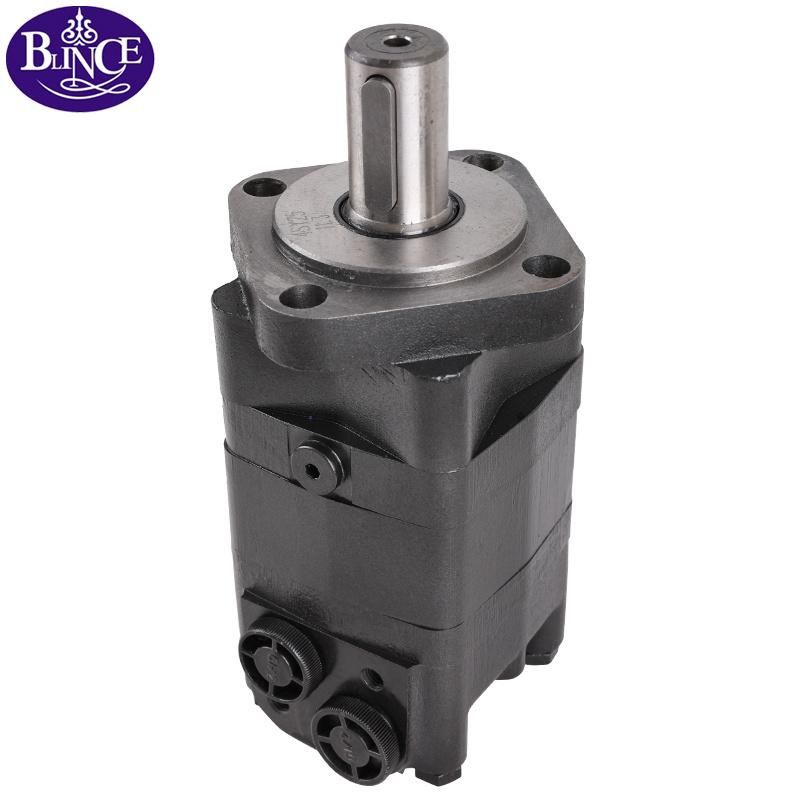

Higher Torque Motor Oms Omsy 400 Bmsy400 High Pressure Hyraulic Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Casing Protection:Protection Type
- Number of Poles:4
- Speed:High Speed
- Type:Hydraulic Motor
- Flow Structure:Disc Distribution Flow
- Internal Structure:Geroler Gear Set
Base Info
- Model NO.:OMSY475
- Material:Cast Iron
- Max Speed:470rpm
- Max Torque:316nm
- Flange:Square,Rhombic,Elliptical
- Diameter of Shaft:32mm,31.75
- Color:No Paint,Blue,Blacks,Silvery Grey
- Hydraulic Actuator:Hydraulic Cylinder Piston
- Hydraulic Power Units:Vane Pump
- Transport Package:Plastic Tube +Carton+Wooden Pallets
- Specification:CE, CCC, ISO
- Trademark:Blince
- Origin:Dongguan, China
- HS Code:8412291000
- Production Capacity:1000 Per Month
Description
Basic Info.

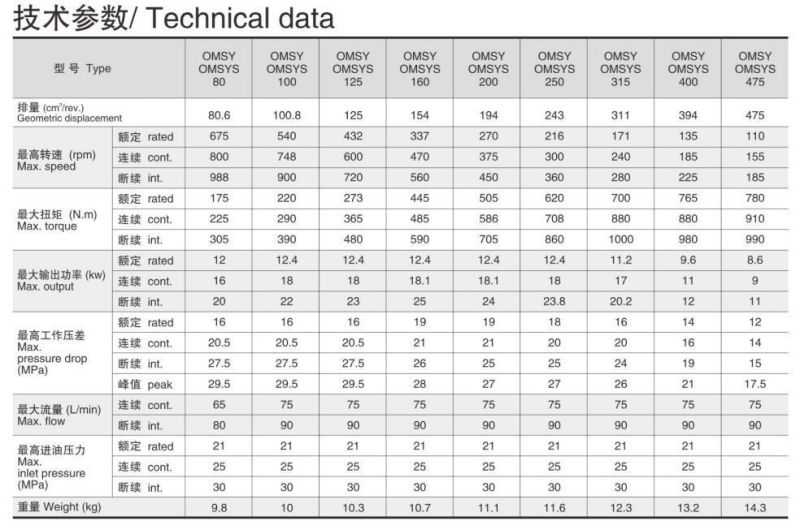

Model NO. OMSY475 Material Cast Iron Max Speed 470rpm Max Torque 316nm Flange Square/Rhombic/Elliptical Diameter of Shaft 32mm/31.75 Color No Paint/Blue/Blacks/Silvery Grey Hydraulic Actuator Hydraulic Cylinder Piston Hydraulic Power Units Vane Pump Transport Package Plastic Tube +Carton+Wooden Pallets Specification CE, CCC, ISO Trademark Blince Origin Dongguan, China HS Code 8412291000 Production Capacity 1000 Per MonthProduct Description
Low Speed High Torque hydraulic motor Omsy125cc Orbit Hydraulic Motor OMS80/100/125/160/200/250/315/400/475
BMS/OMS/BMSY/OMSY/MS/MLHS orbital motors are characterized by high torque and maximum speeds between 180 and 810 rpm. They are dedicated to continuous work in heavy duty conditions. The BMS series and the OMZS series consist of eight compact models. These motors are gear motors with internal gear (rotor).
Rotational speed range: from 5 through 810 rpm; maximum continuous pressure: up to 235 bar.
Advantages:Low pressure start;
Reinforced shaft seal;
High startup torque and ability to withstand significant back pressures;

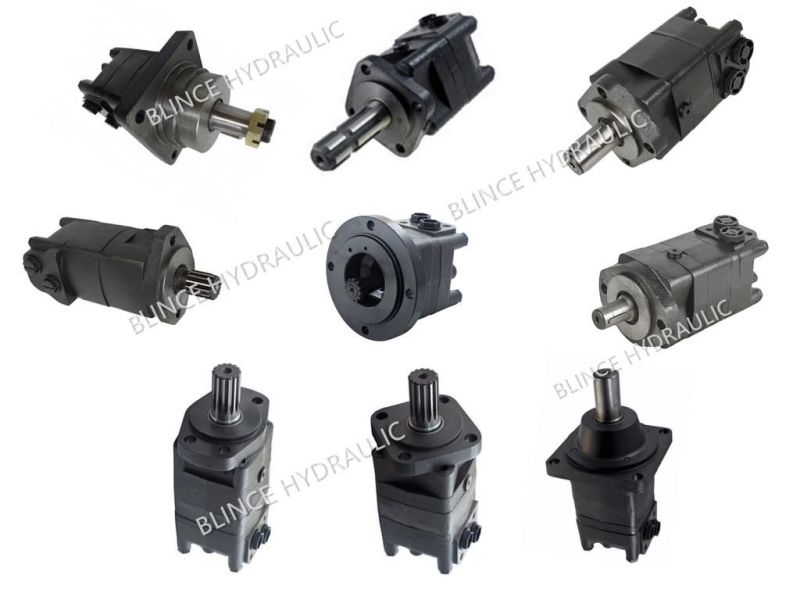

The ability totransferaxial and radial loads;Compact volume and easy installation. Product Show: Multiple displacement, Multiple flanges, multiple shaft types for choose.

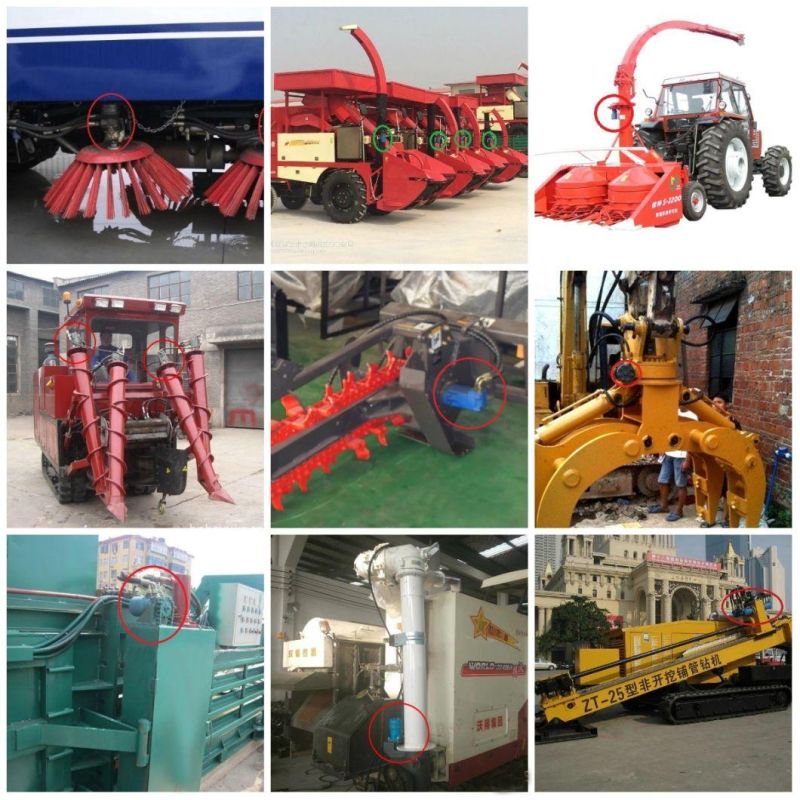

Application:
Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and
construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner,grass cutter, etc.

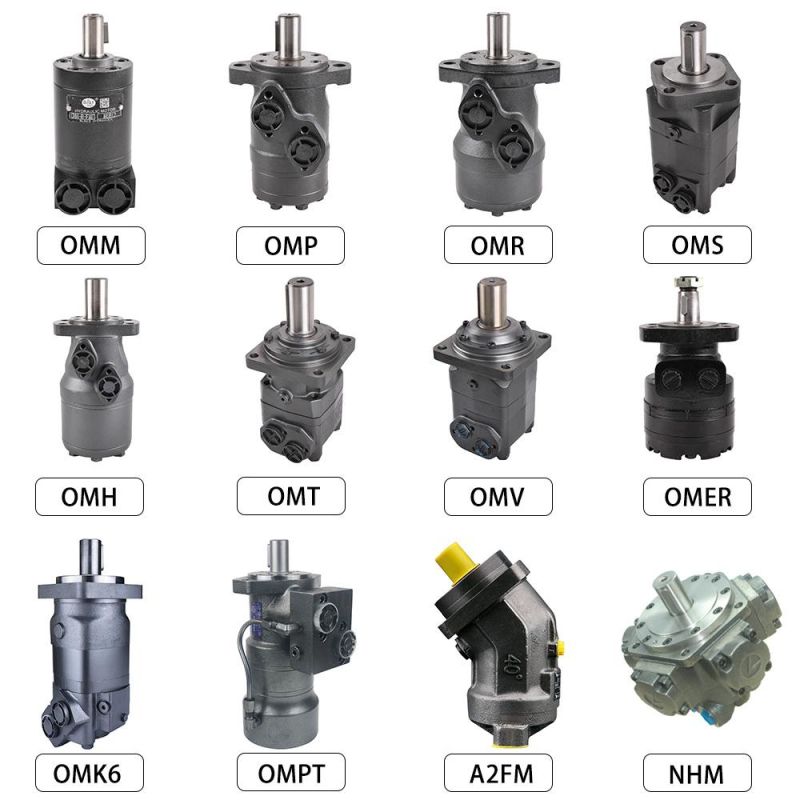

Related Products:
