• Model NO.：S4, S5
• Size: 04,06,08,10,12,16,20,24,32：Surface Finished: White or Yellow Zinc
• Transport Package：Plastic Bag+Box +Pallet
• Specification：SGS
• Trademark：OEM OR NO BRAND
• Origin：Ningbo, China
• HS Code：73079200
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. S4, S5 Size: 04,06,08,10,12,16,20,24,32 Surface Finished: White or Yellow Zinc Transport Package Plastic Bag+Box +Pallet Specification SGS Trademark OEM OR NO BRAND Origin Ningbo, China HS Code 73079200 Production Capacity 500000PCS/Month

Product Description

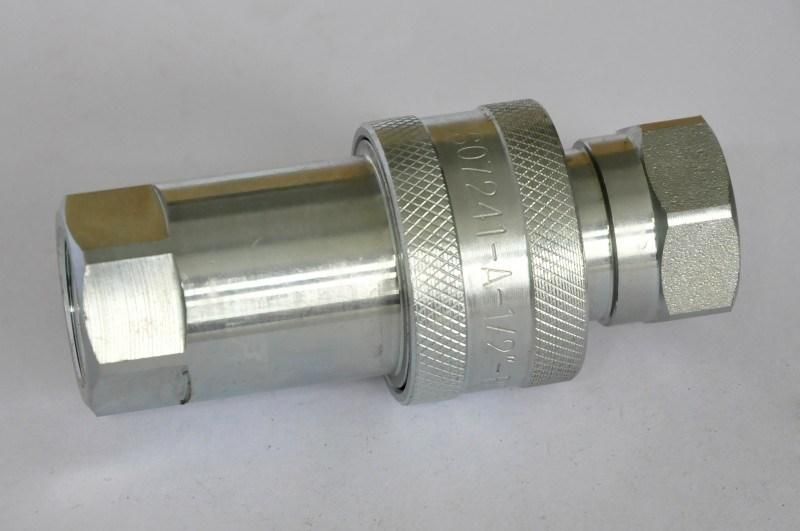

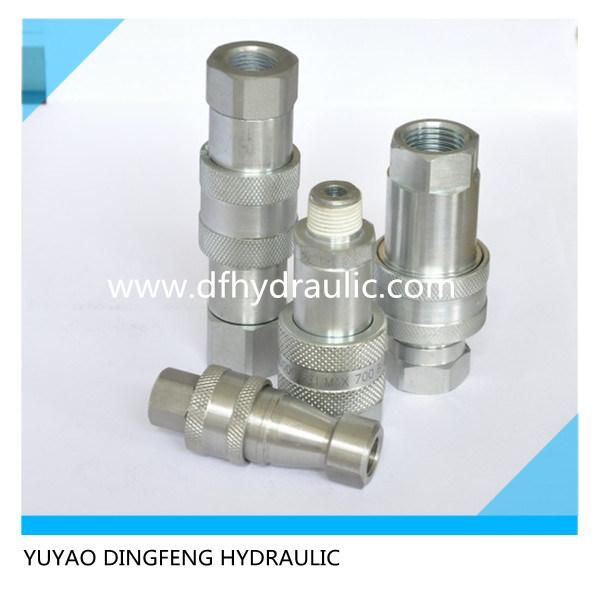

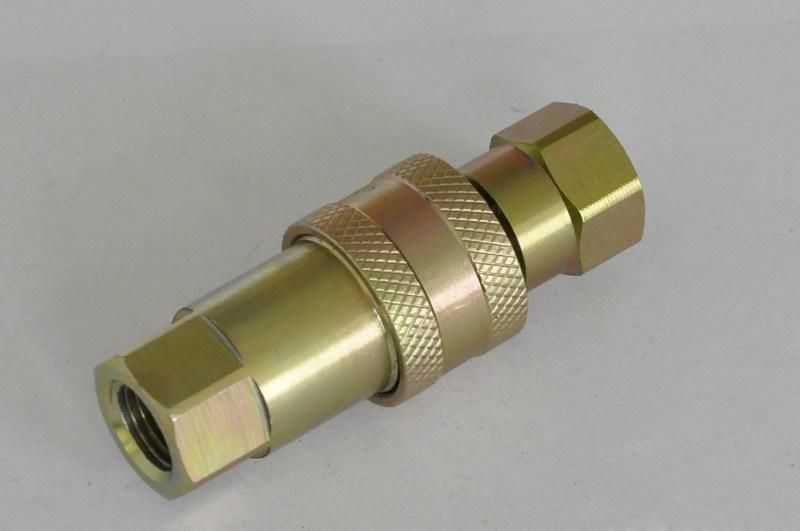

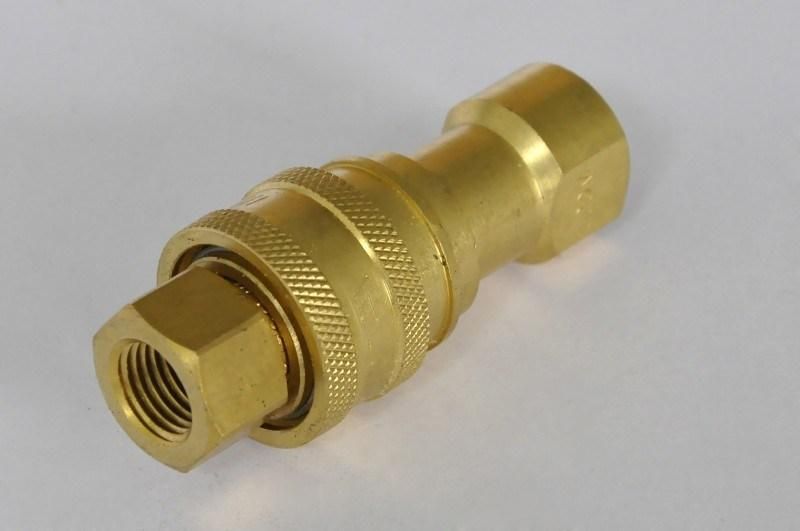

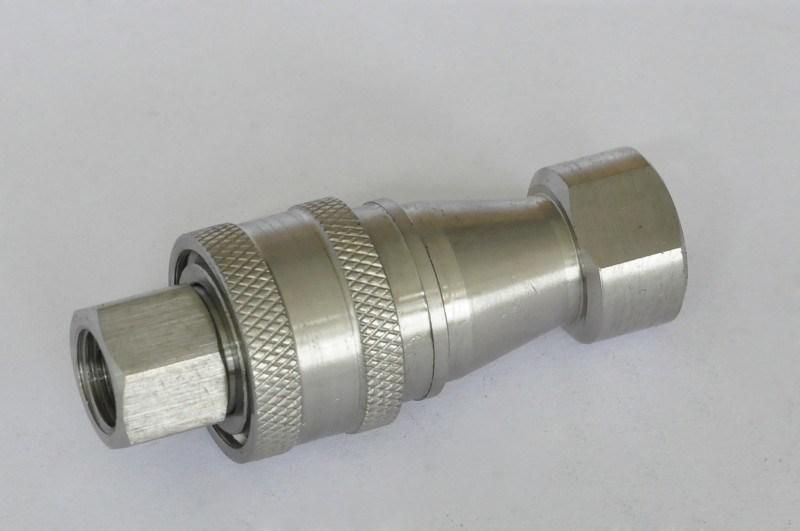

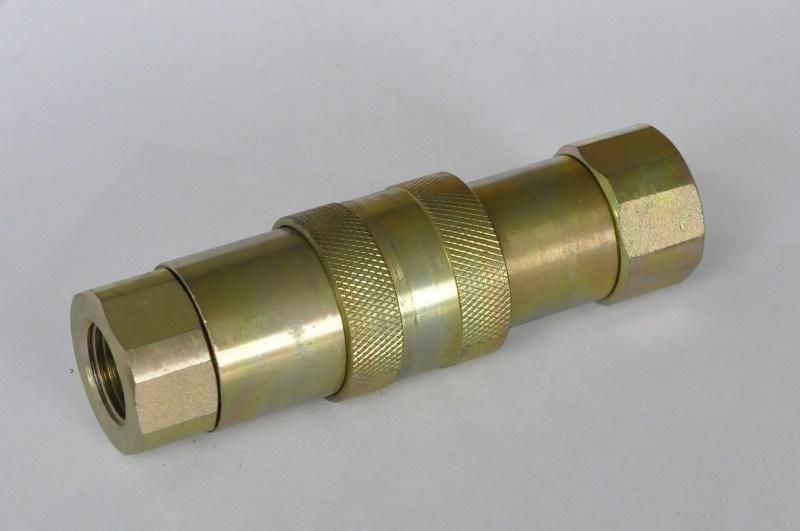

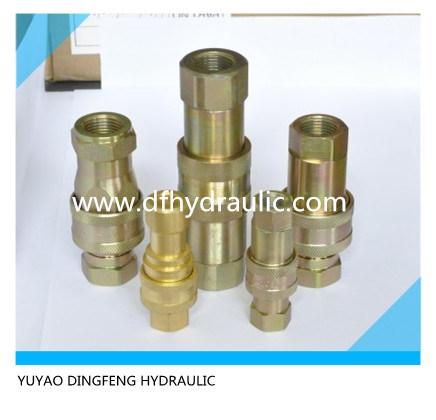

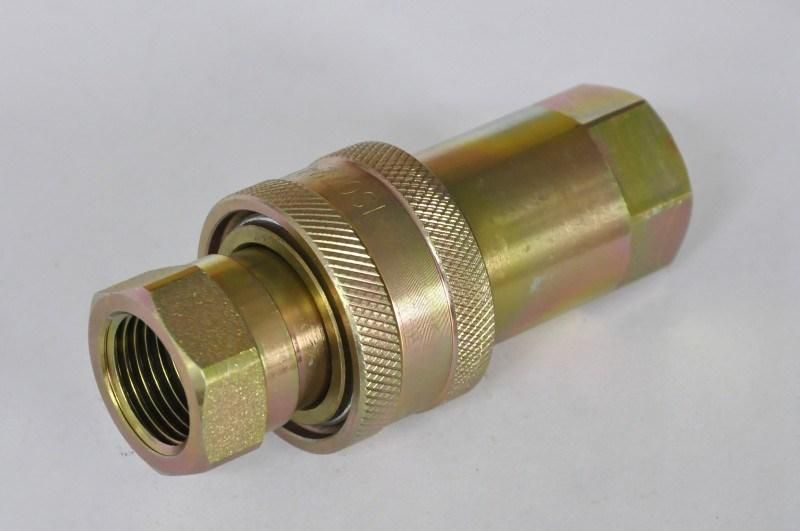

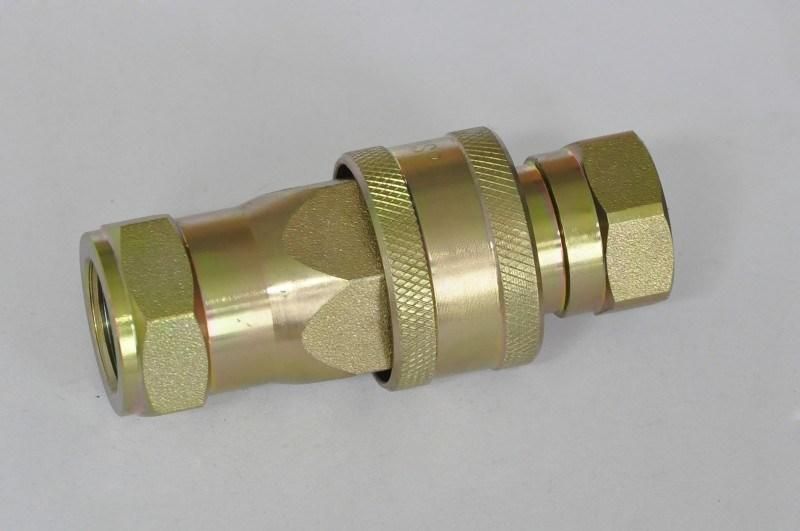

Push And Pull Type Hydraulic Quick Coupling(Steel)
Applications: The S5 and S5C Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Specifications:

Body Size(in)1/2
Rated Pressure(PSI)3000
Rated Flow(GPM)12
Temperature Range(std seals)-20C to +100C
Standard seal material is NitrileBuna-N(Nitrile)


S5 and S5C Series Couplings feature:
1. Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4. Critical parts are hardened for durability.
5. Dependable ball-locking mechanism holds the mating halves together.
6. Socket and plug are precision machined from solid bar stock.
7. LSQ-S5 series conforms to the standard of ISO5675.8. Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

Performance: Test Fluid: Oil-200SUS, 1GPM=3.78L/Min, 1PSID=0.0069MPa.
