• Model NO.：4WEH10
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：6.8kg
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：10
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. 4WEH10 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 6.8kg Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification 10 Trademark Longli Origin China HS Code 8412299090 Production Capacity 2000PCS/Month

Product Description

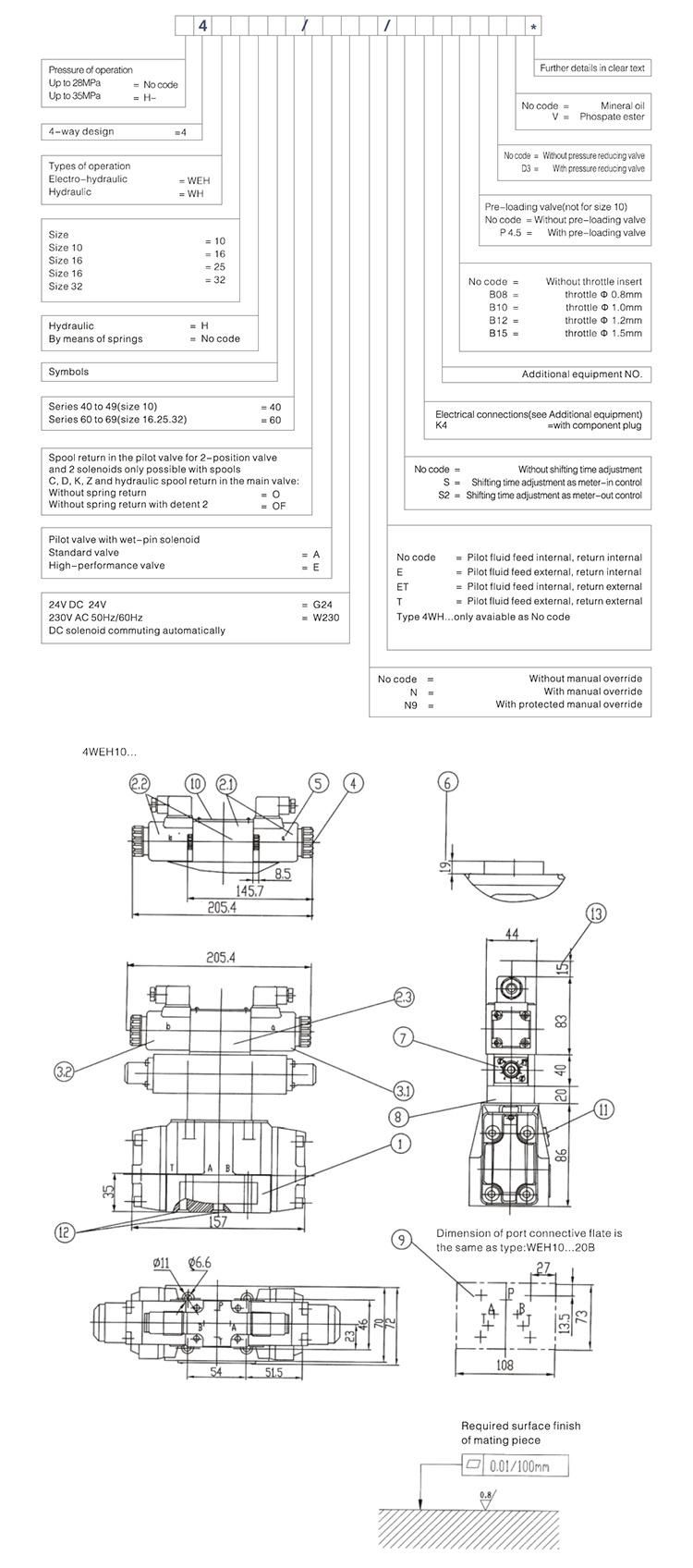

4WEH10 Pilot Operated Solenoid Directional Spool Valves

Directional Valves type WEH are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These pilot operated directional valves consist of a pilot control valve and main stage with spring or hydraulic centering options. Additionally, the pilot and drain configuration may be selected. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 42 GPM to 120 GPM cover a wide range of applications.

Features:

Sizes 10 to 32
Porting pattern according to DIN 24340 form A and ISO 4401-5, 7, 8; NFPA T3.5.1M R1, and ANSI B93.7 D 05, D 07, D 08
Wet-pin AC or DC solenoids
Spring and/or pressure return of the main spool to its initial position
Spring centering (size 10, 16, & 25, 32)
Spring or pressure centering (sizes 16 & 25, 32)
Electrical connection as individual connection or central connection
Optional switching time adjustment
Stroke limitation of the main spool, optional

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
