• Model NO.：4WEH16
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：8.5kg
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：16
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. 4WEH16 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 8.5kg Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification 16 Trademark Longli Origin China HS Code 8412299090 Production Capacity 2000PCS/Month

Product Description

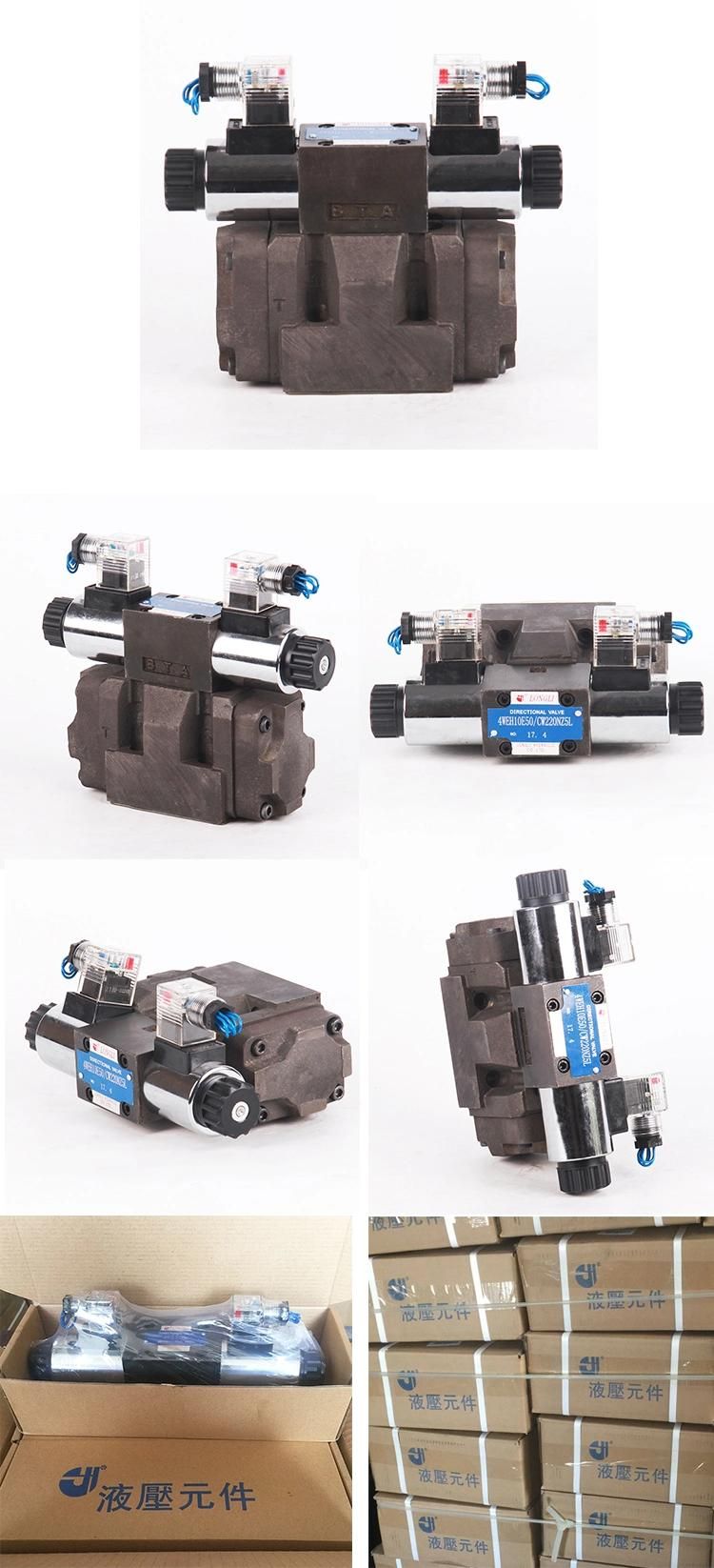

4WEH16 Electro-Hydraulic Directional Control Valve

Electro-hydraulic Directional Valves type WEH use solenoids as pilot control. It is for sub-plate mounting, and its porting patten accords with DIN 24 340 and ISO 4401.
There are many different features and additional device for selection. Solenoids of pilot valve are wet-pin DC or AC. The main valve uses spring or hydraulic centered and spring or hydraulic offset. With or without
shifting time adjustment; With or without stroke adjustment ; Pre-load valve or throttle insert can be installed in the main valve. Pressure Reducing Valve can be installed when operating pressure exceeds 25 MPa.

Features:

Sizes 10 to 32
Porting pattern according to DIN 24340 form A and ISO 4401-5, 7, 8; NFPA T3.5.1M R1, and ANSI B93.7 D 05, D 07, D 08
Wet-pin AC or DC solenoids
Spring and/or pressure return of the main spool to its initial position
Spring centering (size 10, 16, & 25, 32)
Spring or pressure centering (sizes 16 & 25, 32)
Electrical connection as individual connection or central connection
Optional switching time adjustment
Stroke limitation of the main spool, optional

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
