• Model NO.：CRG CRT
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Material：Casting iron
• Porting Pattern：ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0
• Throttle Control Type：Meter in Control, Meter out Control
• Medium Viscosity Range：28-500mm2,S
• Weight：0.9-5.6kg
• Transport Package：Cartons and Pallets
• Specification：03, 06, 10
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. CRG CRT Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Material Casting iron Porting Pattern ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0 Throttle Control Type Meter in Control, Meter out Control Medium Viscosity Range 28-500mm2/S Weight 0.9-5.6kg Transport Package Cartons and Pallets Specification 03, 06, 10 Trademark Longli Origin China HS Code 8412299090 Production Capacity 2000PCS/Month

Product Description

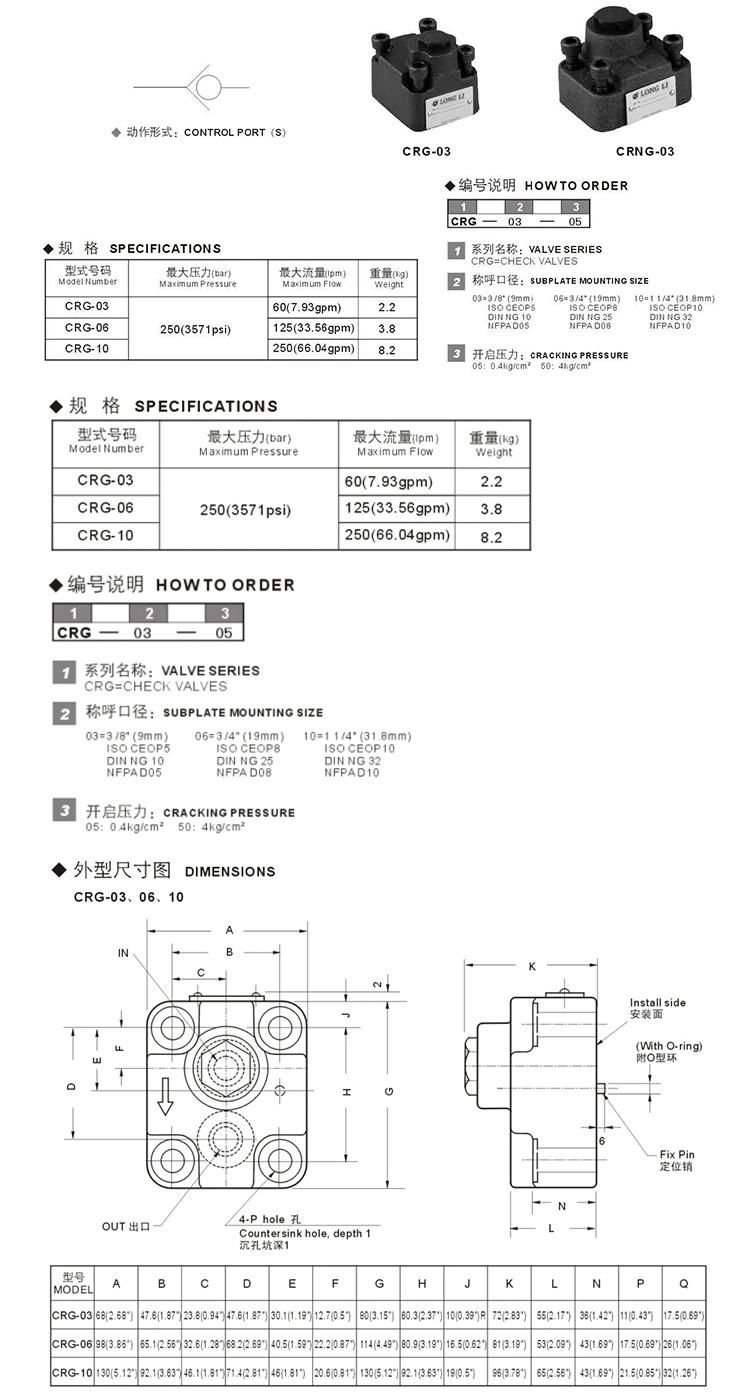

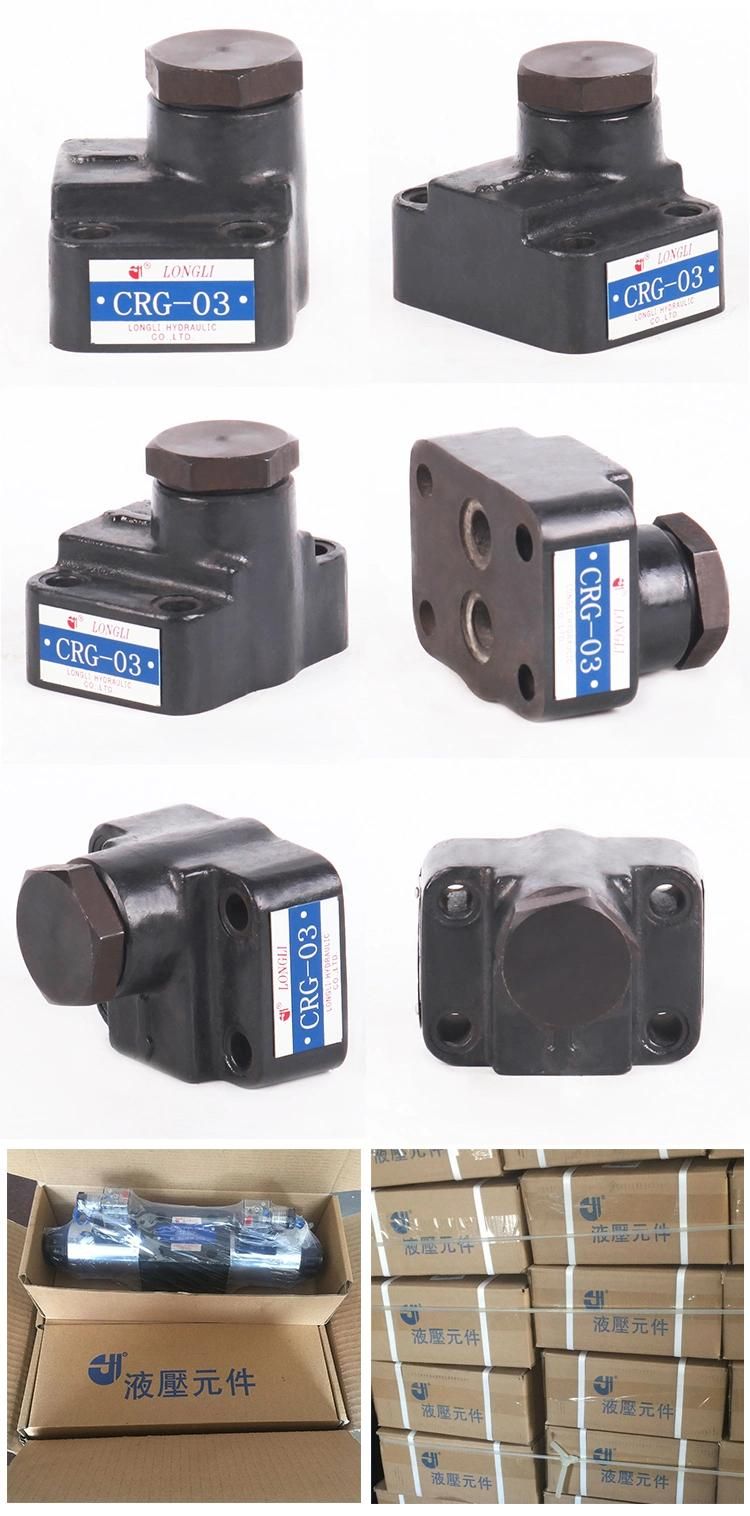

Yuken Hydraulic Right Angle Check Valves



Yuken Hydraulic Right Angle Check Valves allow free flow in one direction and prevent flow in the reverse direction. Cracking pressure specified is the pressure required to open the valve and allow free flow Rated flow is the approximate flow rate, when there is a free flow pressure drop of maximum 0.3 MPa (44 PSI), the fluid has a specific 2 gravity of 0.85 and a kinematic viscosity of 20 mm /s (98 SSU), and the cracking pressure is 0.04 MPa (6 PSI)



Product name: Hydraulic Right Angle Check Valves
Model: CRG CRT 03/06/10
Place of Origin: Shandong, China

Max. Flow: 40L/min; 125L/min; 250L/min

Max Pressure: 250Bar
Cracking Pressure: 0.4bar, 3.5bar, 5bar
Material: Casting
Medium: Oil
Power: Hydraulic
Color: Customer's request
Certificate: ISO9001

Why Choose Us

1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
