• Model NO.：sv16-222

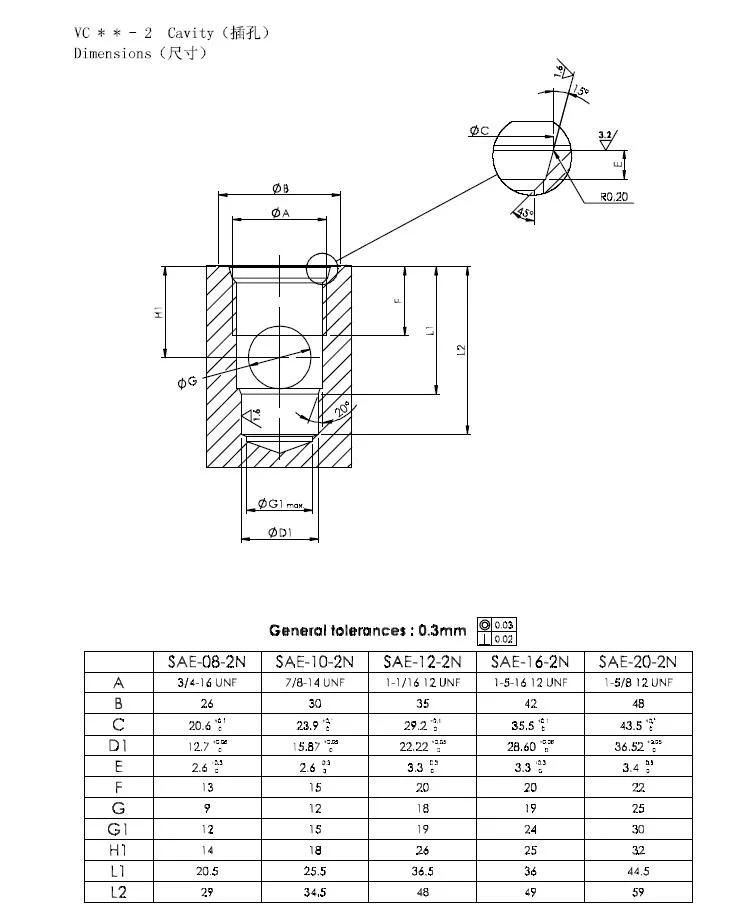

• Cavity：T7-1,VC16-2
• Internal Leakage：0.15 cc,minute
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：T7-1,VC16-2
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. sv16-222 Cavity T7-1/VC16-2 Internal Leakage 0.15 cc/minute Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification T7-1/VC16-2 Trademark Longli Origin China HS Code 8412299090 Production Capacity 6000PCS/Month

Product Description

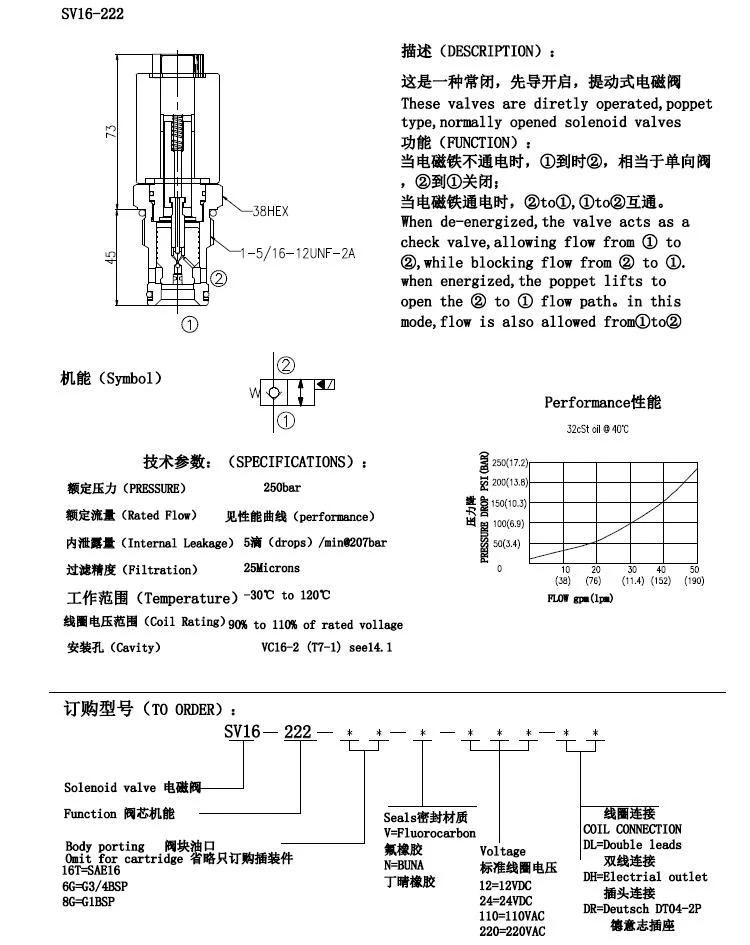

DESCRIPTION
A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic
cartridge valve, for blocking or load-holding in applications requiring low internal leakage.

OPERATION
When de-energized, the SV16-222 acts as a check valve, allowing flow from 1 to 2, while
blocking flow from 2 to 1. When energized, the valve's poppet lifts to allow bi-directional flow.
Operation of Manual Override Option: To override, push button in, twist counterclockwise 180°,
and release. In this position, the valve will remain open. To return to normal operation, push button in,
twist clockwise 180°, and release. Override will be detented in this position.

FEATURES
• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry-common cavity.

RATINGS
Operating Pressure: 250 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: Up to 151 lpm (40 gpm)
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 207 bar (3000 psi)
Temperature: -40 to 100 °C (-40 to 212 °F) with standard Buna seals;
   -30 to 205°C (-20 to 400°F) with fluorocarbon seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20 °C: Standard Coil: 1.67 amps at 12 Vdc;
   0.18 amps at 115 Vac (full wave rectified).
   E-Coil: 1.7 amps at 12 Vdc; 0.85 amps at 24 Vdc
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
