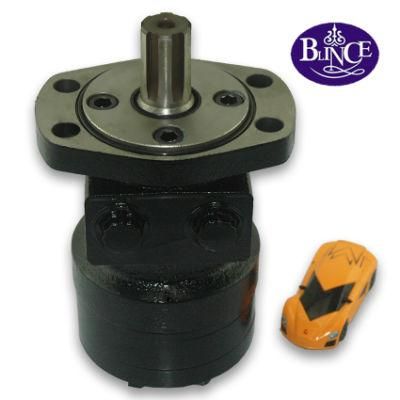

Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Number of Poles：4
  • Speed：High Speed
  • Type：Hydraulic Motors
  • Displacement(Cc/Rev)：100
  • Max Pressure(Bar/MPa)：76,7.6
  • Flange：Standard 2 Hole Diamond Flange

Base Info

  • Model NO.：Eaton 103 series

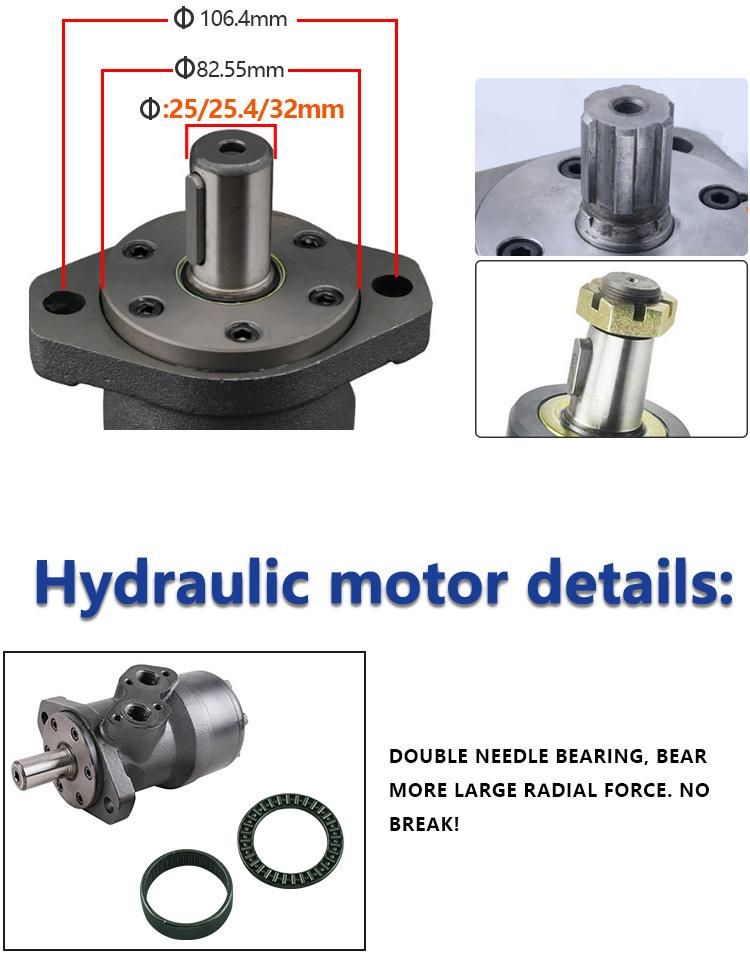

  • Cylinde Parallel Shaft Size：25 Mm
  • Hole Middle Distance：106.4mm
  • Continuous Max Speed(Rpm)：600
  • Continuous Max Torque(N.M)：240
  • Ports and Drain Port：G1,2, G1,4
  • Material：Rust-Proof Cast Iron
  • Warranty：One Year
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong Province, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：3000pieces,Month

Description

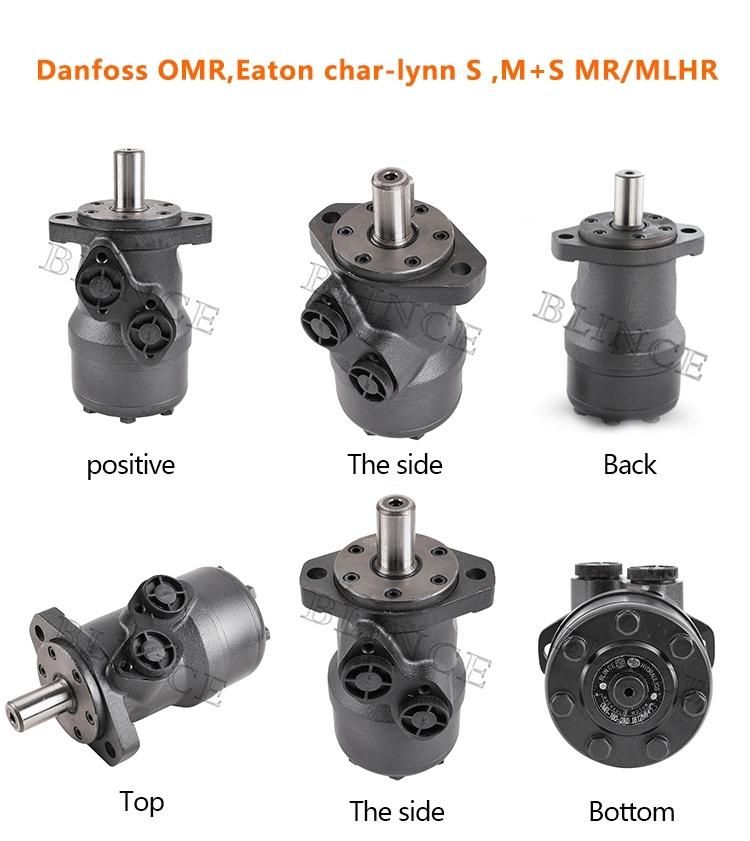

Type OMR
36OMR
50OMR
80OMR
100OMR
125OMR
160OMR
200OMR
250OMR
315OMR
375Displacement (cc/rev)3651.781.5102127.2157.2194.5253.3317.5381.4Max speed
 rate (rpm)
 cont1085960750600475 378310240190155int12201150940750600475385300240190Max torque
(N.m)cont72100195240300360360390390365int83126220280340430440490535495Max output
(KW)cont8.59.512.513.012.512.510.07.06.05.0int9.811.215.015.014.514.013.09.59.08.0Max pressure
Drop(Mpa)cont14.01417.517.517.516.5131197int16.517.52020202017.5151310Max.flow
(L/min)cont40506060606060606060int.45607575757575757575Weight(kg)6.56.76.977.37.68.08.59.09.5
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm

Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm
Four Bolts Eaton Char Lynn Motors 103-1010/1011/1571/1572 Hydraulic Motor Rpm

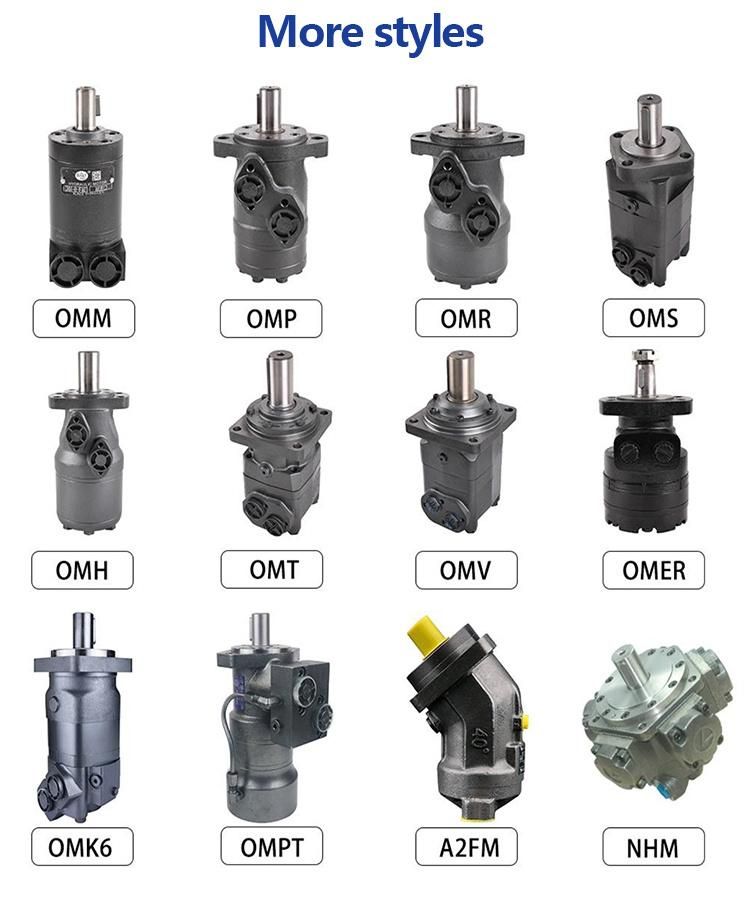

Blince profssion supply all series hydraulic motor like:

OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps.
If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
