• Model NO.：Z2FS16
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Material：Casting
• Porting Pattern：ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0
• Throttle Control Type：Meter in Control, Meter out Control
• Medium Viscosity Range：28-500mm2,S
• Weight：4.7kg
• Transport Package：Cartons and Pallets
• Specification：6, 10, 16, 22
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. Z2FS16 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Material Casting Porting Pattern ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0 Throttle Control Type Meter in Control, Meter out Control Medium Viscosity Range 28-500mm2/S Weight 4.7kg Transport Package Cartons and Pallets Specification 6, 10, 16, 22 Trademark Longli Origin China HS Code 8412299090 Production Capacity 10000PCS/Month

Product Description

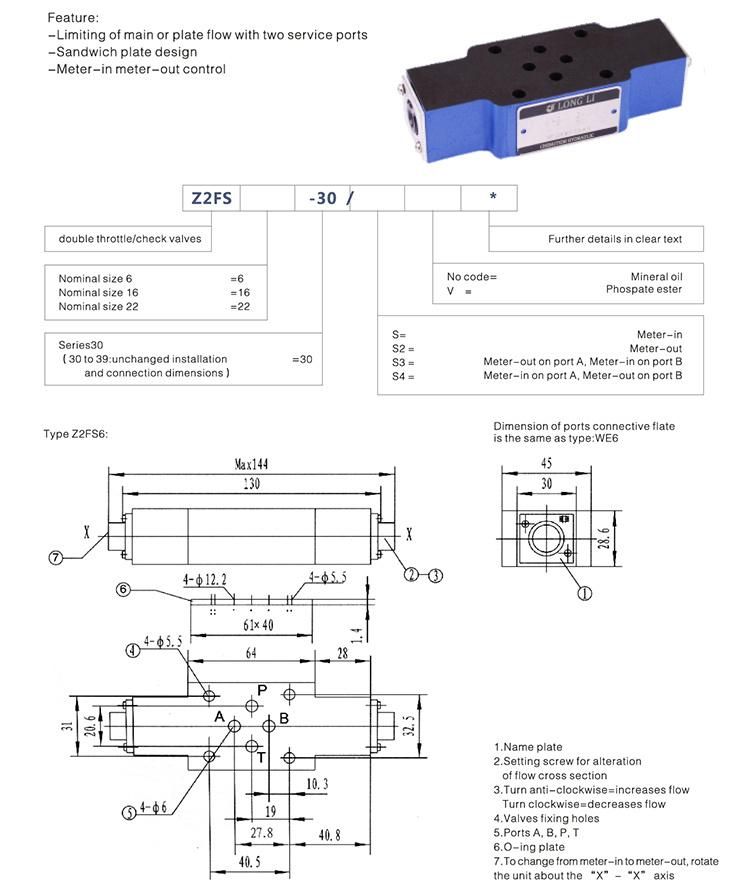

Z2FS16 Hydraulic Flow Adjustment Control Valves



Rexroth Z2FS16 Hydraulic Flow Adjustment Control Valves is the modular dual unidirectional Throttle Valve to control one or two of the main flow of the oil port or pilot oil flow. Two symmetrically arranged check throttle valve limits the flow in one direction, and allowing the opposite direction to flow freely. The valve can be simultaneously connected to the two oil passages of the working oil chamber. Two symmetrical way throttle valve in one direction by adjusting the size of orifice cross-sectional area to regulate the flow through the check valve and back to the oil in the other direction.

Z2FS16 Hydraulic Flow Adjustment Control Valves
By selecting a different installation location, or different models to throttle the way of internal or external, hydraulic fluid through the throttling point ( from the valve seat and the throttle poppet constitute ) via channel filling flow ports.
The axial orifice area of the valve throttle poppet can be adjusted, so as to adjust the throttle point.
The hydraulic fluid returned from the working oil port to push the valve seat, to overcome the biasing force of the spring to move throttle poppet, allowing the free flow of the fluid.



Model: Z2FS16
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Check
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli
Product description:: Rexroth Z2FS16, size 16mm meter-in or meter-out throttling adjustment flow control valves
Connection type:: Sandwich plate connection
Porting pattern:: ISO 4401-07-07-0-05, NFPA T3.5.1 R2-D07
Max. operation pressure:: 350bar
Max. flow rate:: 250L/min.
Throttle control type:: Meter in control, Meter out control
Working temperature:: -30/+80ºC of NBR seals and -20/+80ºC of FPM seals
Recommended medium filtration:: Class9 NAS 1638 at min. filter fineness β10≥75
Medium viscosity range:: 28-500mm2/S
Valve net weight:: 4.70Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

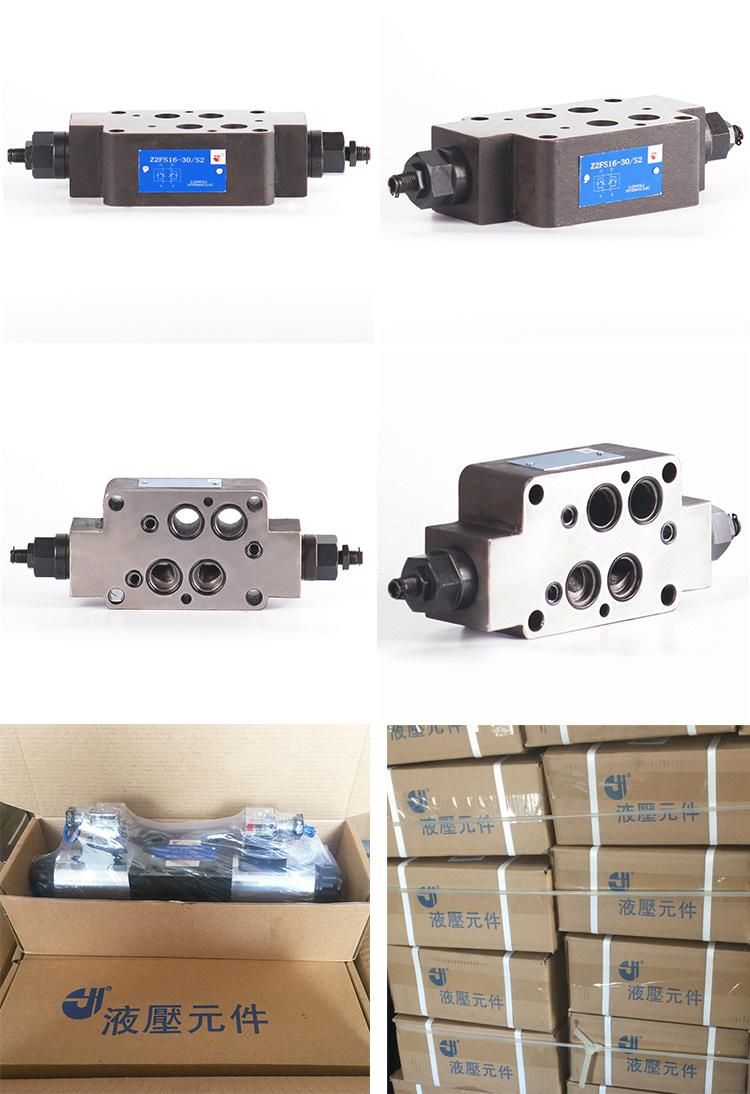

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
