• Model NO.：4WEH32
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：41kg
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：25
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. 4WEH32 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 41kg Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification 25 Trademark Longli Origin China HS Code 8412299090 Production Capacity 2000PCS/Month

Product Description

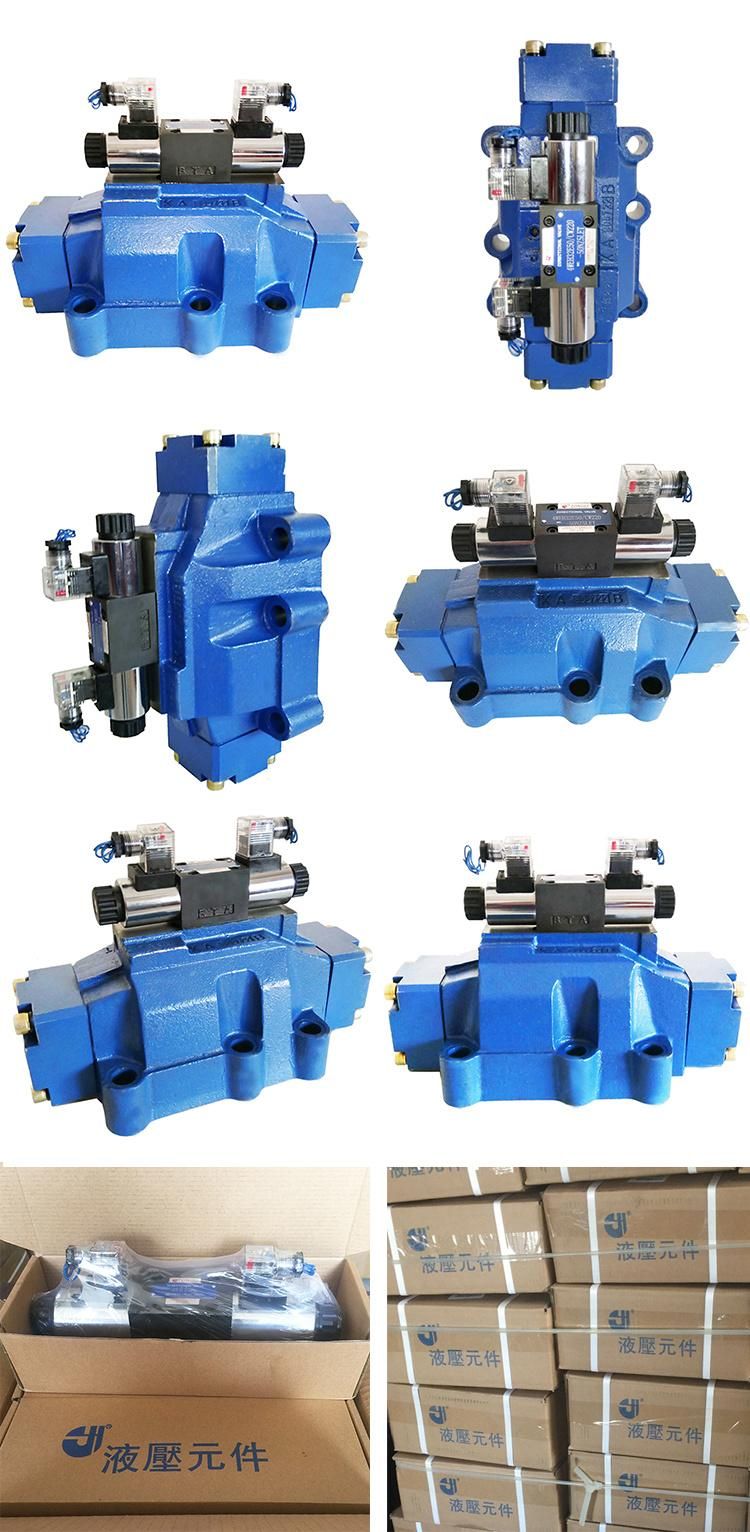

4WEH32 Solenoid Pilot Operated Directional Control Valves

WEH electro Hydraulic Directional Valve

It is a directional valve controlled by solenoid valve. It adopts plate connection and its connection size conforms to DIN24340 standard. It has many different performances and accessories to choose.

Solenoid Valves for pilot control have wet AC or DC; with or without manual buttons, the main valve uses spring to neutralize spring reset or hydraulic to neutralize hydraulic reset; with or without reversing time regulator; With or without main valve stroke regulator or main spool terminal position indicator; pre-loading valveinstalled in main valve; plugged damper installed; Pressure Reducing Valve installed at working pressure above 25MPa, 19 standard functions.

Features:

1. Completely interchangeable with original
2. For various hydraulic systems
3. Directional Spool Valves, pilot operated, with electrohydraulic actuation
4. Sizes 10, 16, 25 and 32
5. Component series 4X; 6X; 7X
6. Maximum operating pressure 350 bar
7. Maximum flow 1100 l/min
8. For subplate mounting
9. Porting pattern to ISO4401 and NFPAT3.5.1 R2
10. Wet plug-in DC or AC coil, optional
11. Manual control, optional
12. Electrical connection: single or centrical
13. Adjustable of main spool distance, optional
14. Adjustable of time shift, optional
15. Very competitive price
16. One year of warranty
17. Short delivery time

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
