• Model NO.：DHF08-221
• Cavity：T4-1,VC08-2
• Internal Leakage：3drops,min
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：T4-1,VC08-2
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. DHF08-221 Cavity T4-1/VC08-2 Internal Leakage 3drops/min Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification T4-1/VC08-2 Trademark Longli Origin China HS Code 8412299090 Production Capacity 6000PCS/Month

Product Description

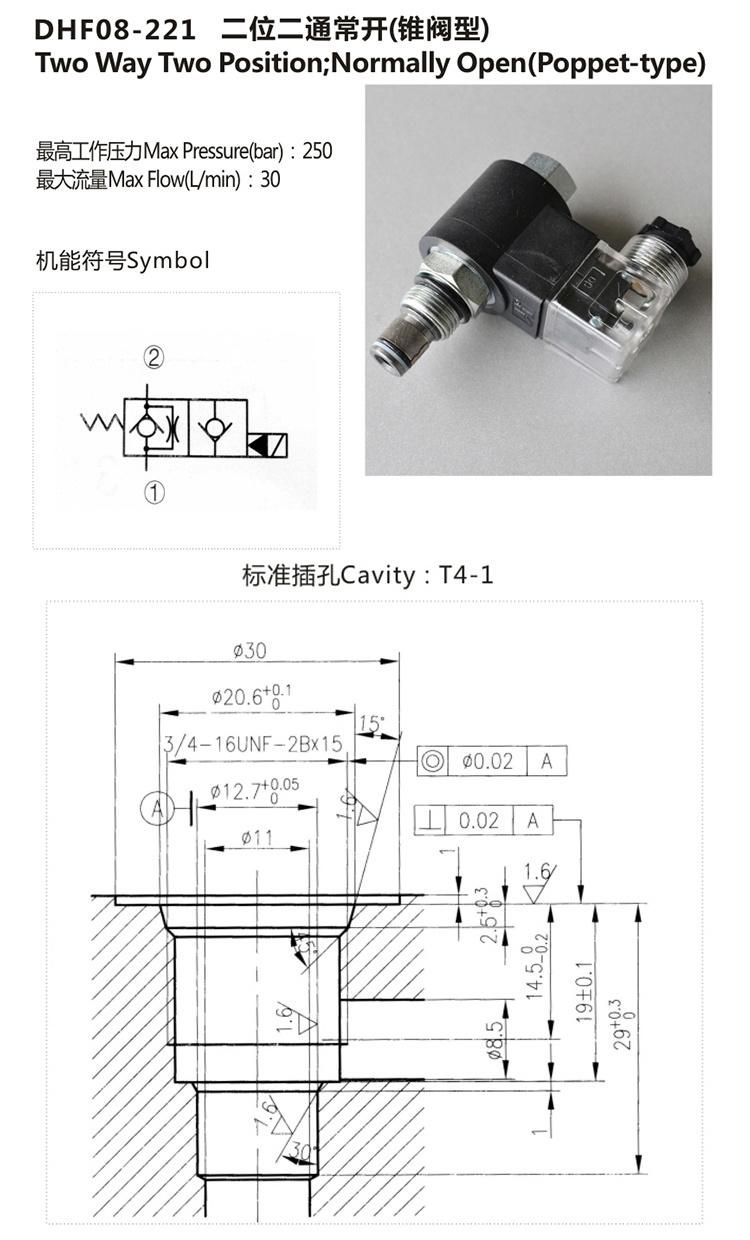

Hydraulic 2/2 Solenoid Cartridge Valve(Normally Open)



DESCRIPTION
A solenoid-operated, 2-way, normally open, piloted poppet-type, screw-in hydraulic cartridge valve designed for low leakage in load-holding applications.


OPERATION
When de-energized, the DHF08-221 allows flow from 2 to 1, while flow from 1 to 2 is severely restricted. When energized, the valve closes, blocking flow from 2 to 1. In this mode, flow from 1 to 2 will be allowed after overcoming the solenoid force. This requires 3.4 to 10.3 bar (50 to 150 psi).
Operation of Manual Override Option: To override, push and hold override button.

FEATURES
• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.
• Compact size.


Model: DHF08-221
Place of Origin: Shandong,China (Mainland)
Product: Hydraulic 2 Way 2 Position Solenoid Valve(Normally Closed)
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 250bar
Flow: 30L/min
Voltage: 12V, 24V, 110V, 220V
Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery
Different threads: BSPP, METRIC,SAE option
