Danfoss OMR160 Orbital Motor, OMR Motor for Excavator
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE
- Power Rating：13kw
- Speed：High Speed
- Type：Hydraulic Motor
- Displacement：36,50,80,100,125,160,200,250,315,375
- Max.Speed：155~1085rpm
Base Info
- Model NO.：OMR
- Max.Torque：72~365nm
- Max. Output：5.0~8.5kw
- Max. Pressure Drop：7~14.0MPa
- Max.Flow：40~60L,Min
- Weight：6.5~9.5kg
- Length：137~204mm
- Warranty：One Year
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：CE, CCC, ISO
- Trademark：Blince
- Origin：Dongguan, China
- HS Code：8413602220
- Production Capacity：10000 Per Month
Description
Basic Info.
Model NO. OMR Max.Torque 72~365nm Max. Output 5.0~8.5kw Max. Pressure Drop 7~14.0MPa Max.Flow 40~60L/Min Weight 6.5~9.5kg Length 137~204mm Warranty One Year Transport Package Plastic Tube +Carton+Wooden Pallets Specification CE, CCC, ISO Trademark Blince Origin Dongguan, China HS Code 8413602220 Production Capacity 10000 Per MonthProduct Description

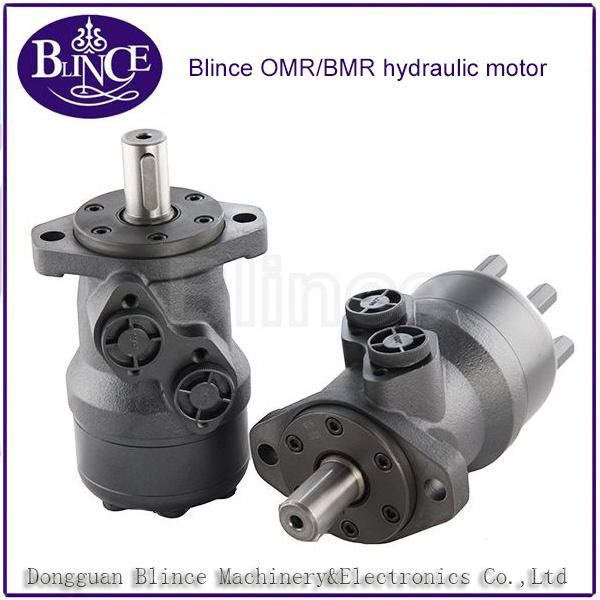

Chinese Blince hydraulic orbit motor OMR/BMR perfect interchange Danfoss OMROMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in oparationg with high pressure, provide reliable and smooth operation, high efficiency and long life.
| type | omr 36 | omr 50 | omr 80 | omr 100 | omr 125 | omr 160 | omr 200 | omr 250 | omr 315 | omr 375 |
| speed | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| torque | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| output | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 11.0 | 10.0 | 9.0 | 7.5 |
| pressure | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| flow | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| weight | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.5 | 8.0 | 8.5 | 9.0 | 9.5 |
Welcome to contact me if any question about our products.
