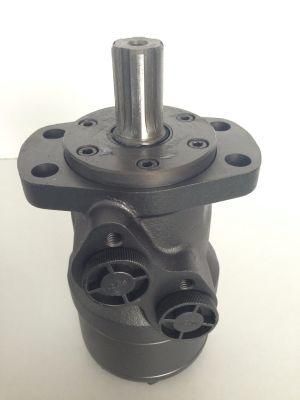

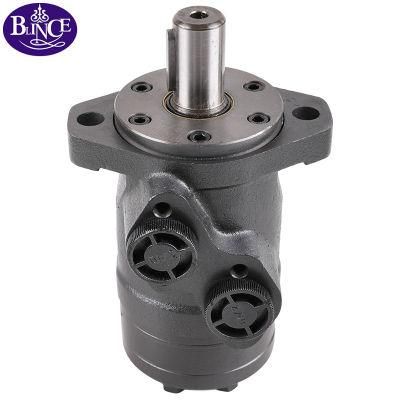

China Omh/Bmh 400cc 500cc Hydraulic Motor Parts and Pump for Road Roller
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Power Rating：16kw
- Speed：Low Speed
- Type：Hydraulic Motor
- Displacement：200~500(Cc,Rev)
- Continuous Max Speed：155~366(Rpm)
Base Info
- Model NO.：OMH Hydraulic Motor
- Continuous Max Torque：850~850(N.M)
- Max Pressure：12.5~17.5(MPa)
- Flange：Standard 2 or 4 Hole Diamond Flange
- Cylinde Parallel Shaft Size：32mm
- Hole Middle Distance：106.4mm
- Ports and Drain Port：G1,2, G1,4
- Material：Rust-Proof Cast Iron
- Warranty：One Year
- Hydraulic Power Units：Gear Pump
- Transport Package：Sale Packing Contians Carton or Wood Case
- Specification：CE
- Trademark：Blince
- Origin：Guangdong Province, China (Mainland)
- HS Code：8412291000
- Production Capacity：3000 Units Per,Month
Description
Type OMH
200 OMH
250 OMH
315 OMH
400 OMH
500 Displacement (cc/rev) 203.2 255.9 316.5 406.4 489.2 Max torque
(n.m) cont 510 621 740 850 830 inter 439 348 282 220 184 Max pressure
(mpa) cont 17.5 17.5 17.5 15.5 12.5 inter 20 20 20 19 16 Max speed rate
(rpm) cont 366 290 236 183 155 inter 439 348 282 220 184 Max flow
(L/min) cont 75 75 75 75 75 inter 90 90 90 90 90 Weight (kg)
10.5 11 11.5 12.3 13.0

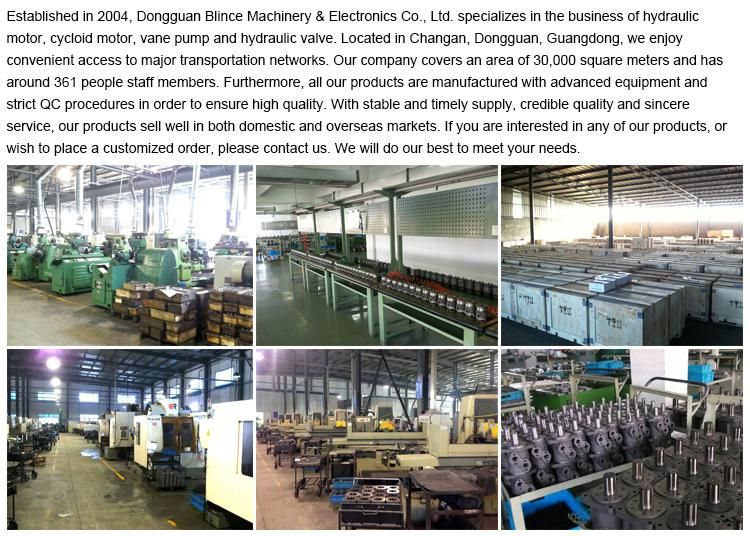

Company Informations

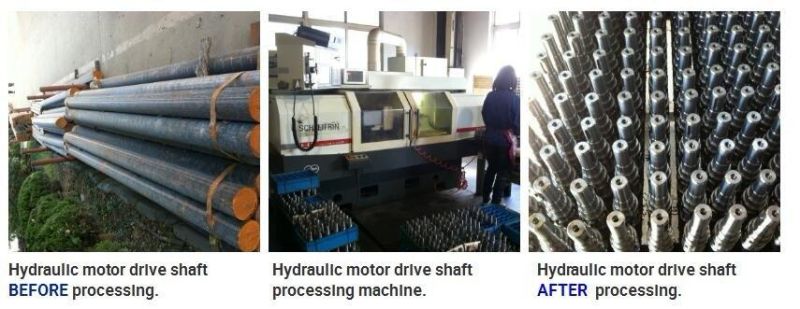

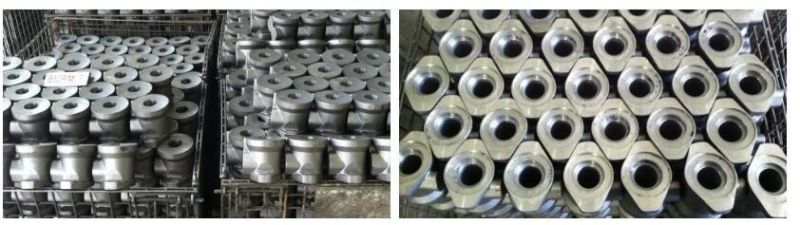

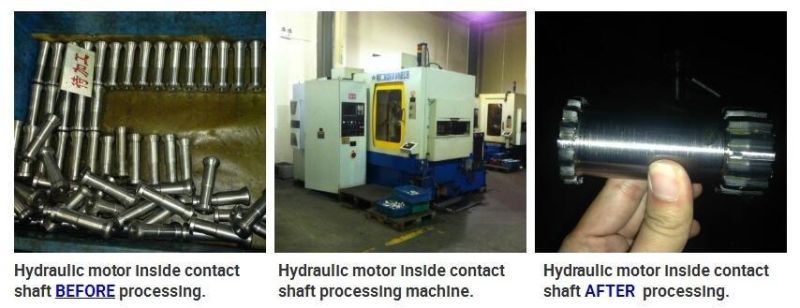

Production pictures

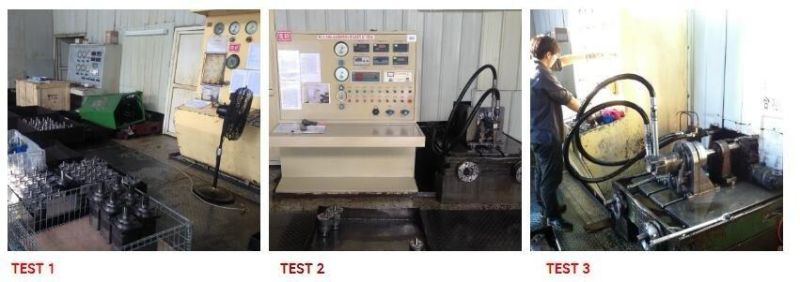

Testing Machines

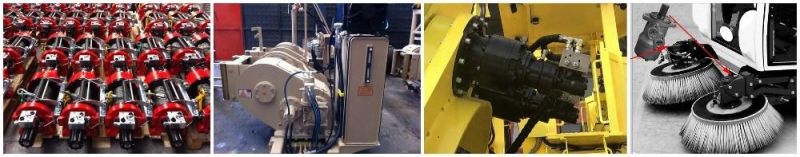

Applications:
These motors can be used in industrial machines (e.g. conveyors), mining machinery (e.g. drills, winches), working machines (e.g. bulldozers, crushers) and in shipbuilding industry (e.g. control systems, propellers) etc.
Packing & Delivery
Packaging Details: Size: 1.2 (L) *0.8(W) * 0.8 (D)
1. 30/50/100pcs wooden case
2. 100pcs plastic/wooden pallet.
3. 1 piece seperate weeden case.
Delivery
1. MOQ is 1pc, price is more favorable for large quantity.
2. Leading time is within 3days if have inventory. If don't, within 30days if the quantity is less than 500pcs.
3. DHL, UPS, FEDEX, TNTetc, usually 5-7 days to arrive.
4. By sea/air, FOB/CIF trade etc, is normally 20-30days.
Our warranty
1,sample service: samples can provide preferential.
2,customized services:a variety of motors can be customized according to customer demad.
3,Aftermarket service: according to consumer requirements, technical guidance on the useand other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Payment terms
1,Small amount accept Paypal
2,Western Union
3,Large orders We usually accept T/T(with 30% deposit,the balance before shipment)

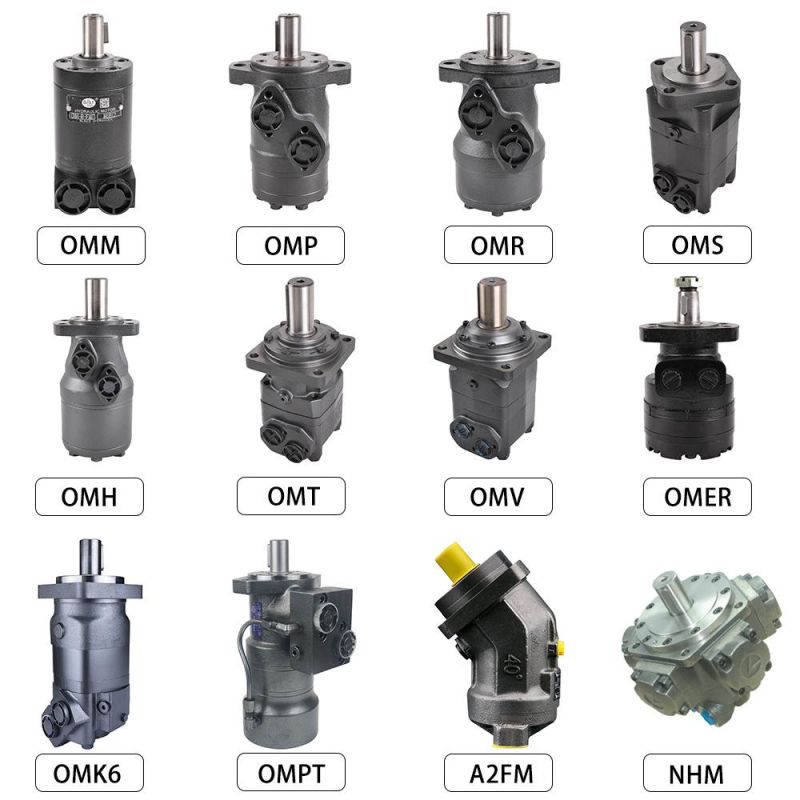

Blince professionally provide hydraulic orbit motor OMM/BMM, OMR/BMR, OMP/BMP, OMSY/BMSY, OMH/BMH, BMT/OMT, OMV/BMV, BMK2, BMK6, BMER hydraulic gerotor motor. To replace Danfoss, Eaton Charlynn, M+S, Parker, White.
Hydraulic vane pump: Denison T6series, Vickers V/VQ series, Yuken PV2R series, Tokimec SQP series.
Hydraulic oil cooler including air cooler and water tube type oil cooler.
Hydraulic radial piston motor and axial piston motor/pump.
If you are interestin in any of our products, please feel free to contact me below:
Thanks for your reading.
