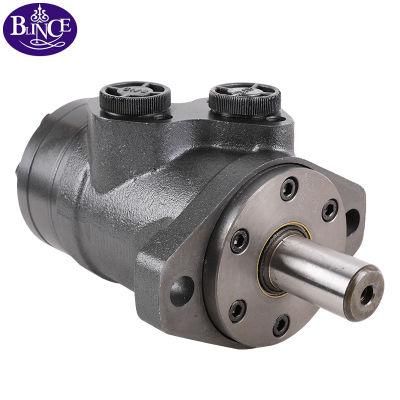

Mini Omm8cc 12.5cc 20cc 32cc 40cc 50cc Hydraulic Motor for Marine Net Hauler
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：ISO9001 CE
- Excitation Mode：Excited
- Power Rating：2000W
- Casing Protection：Protection Type
- Number of Poles：12
- Speed：High Speed
Base Info
- Model NO.：omm8cc 12.5cc 20cc 32cc 40cc 50cc
- Type：Hydraulic Motor
- Usage：Hydraulic Oil
- Warranty：One Year
- Motor Flange Shape：Square and Rhombus Flange
- Hydraulic Power Units：Vane Pump
- Motor Material：Cast Iron
- Hydraulic Motor：Vane Hydraulic Motor
- Standard or Nonstandard：Standard
- Motor Shafts：Straight, Splined and Tapered
- Hydraulic Fluid：Synthetic Hydraulic Oil
- Hydraulic Actuator：Hydraulic Motor
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
Blince company:

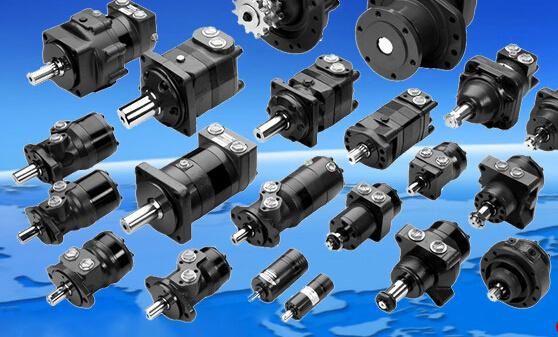

Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/
OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series /V series / SQP series ) vane pumps.If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
Hydraulic motor application:
Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter, etc.
Blince hydraulic motor advantage:
1. Special dynamic seal can bear high back pressure
2. Variety mounting of flange, output shaft, and port.
3. Small volume, smart structure
4. Low leakage, no noisy
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material.
3. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Our blince hydraulic motor Can perfect replace:
Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor
Eaton: J (129-) series, H(101-) series,S(103-) series,T(158-),2000(104-),6000 series orbit motor
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parker: TE and TG series hydraulic motor
Amy Chen
Tel: +86-13560881920
Blince Line: +86 4008803223/+86 769-85156586
Fax: +86 769-85150786
THANKS FOR YOUR READING,AND HOPE YOU HAVE A NICE DAY. ( n . n ) **
