Hyva Fe Type Alpha Series 5 Stages 71537490 Replacement Dump Truck Hoist Cylinder
XIAMEN ROCA IMP.& EXP. CO., LTD.- Certification：CE, ISO9001
- Pressure：Medium Pressure
- Work Temperature：Low Temperature
- Acting Way：Single Acting
- Working Method：Straight Trip
- Adjusted Form：Regulated Type
Base Info
- Model NO.：71537490
- Structure：Piston Type
- Material：Alloy Steel
- Sku：71537490
- Tipping Weight：49-84ton

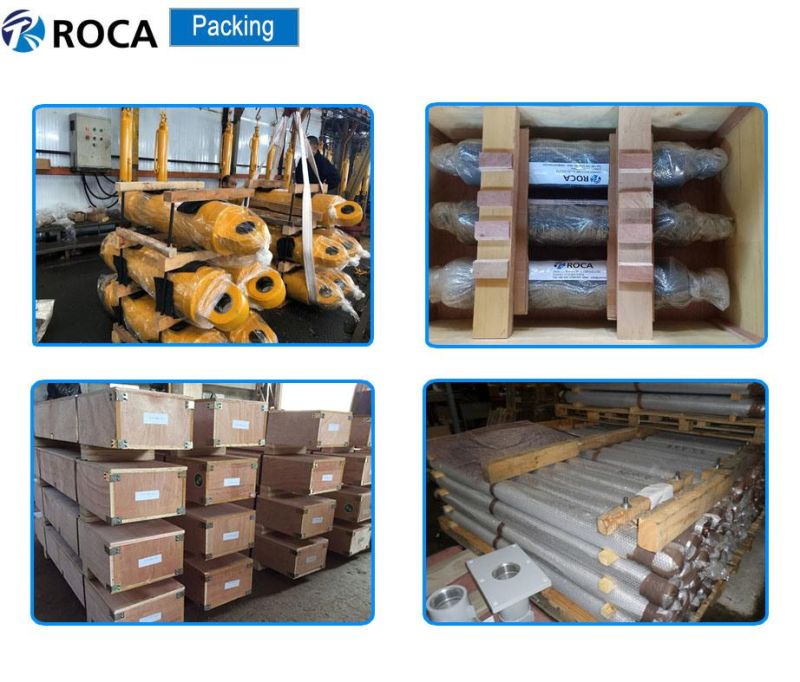

- Transport Package：Plywood Case
- Specification：Weight: 281kg
- Trademark：ROCA
- Origin：Fujian, China
- HS Code：8412210000
- Production Capacity：1000000
Description
Hyva FE Series Telescopic Cylinder Part No. Number of stages Tipping weight Largest Moving Stage Diameter Total Stroke Retracted length 70544230 3 43-59ton 129mm 3880mm 1600mm 71534180 3 33-59ton 129mm 3460mm 1449mm 71534220 3 32-56ton 129mm 3880mm 1609mm 70546474 5 40-56ton 169mm 5830mm 1529mm 70547530 5 57-79ton 191mm 6230mm 1532mm 71537490 5 49-84ton 191mm 6180mm 1527mm 71538582 5 60-84ton 214mm 7130mm 1722mm 70548576 6 49-74ton 214mm 7000mm 1517mm
Company introduction
Xiamen Roca is a comprehensive manufacturing enterprise engaged in hydraulic cylinders, excavator attachment, metal casting, hydraulic components with certification approval to meet custom or OEM requirements.

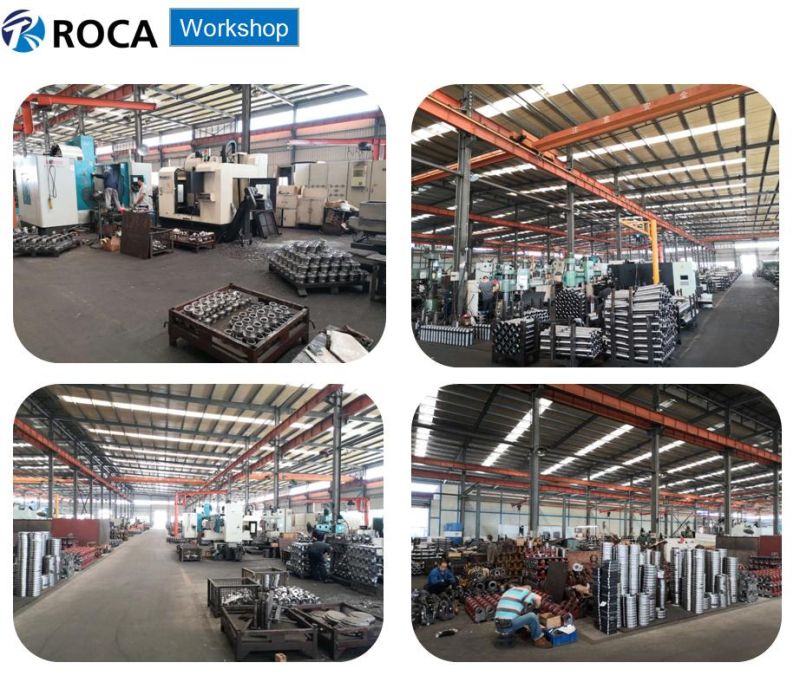

ROCA owns factories that offer customers effective-cost products with quality assurance. With its professional and experienced R&D team, ROCA Hydraulic devotes itself to research and development to optimize products applied in construction, mining, waster management, forestry, agriculture, etc.
Hydraulic cylinders are the most effective and efficient method of pushing, pulling, lifting, and lowering.
Nowadays hydraulic cylinders play an essential role in daily application and industry:

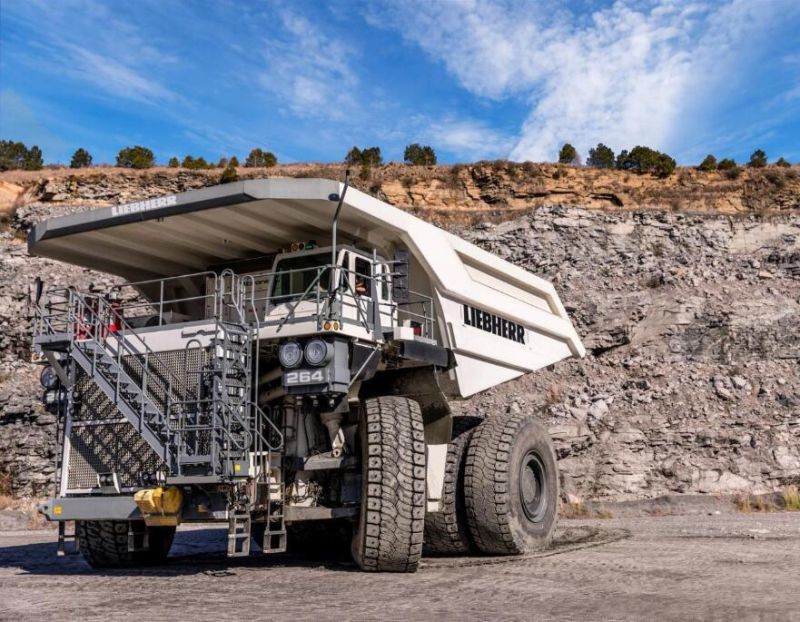

√ Mining

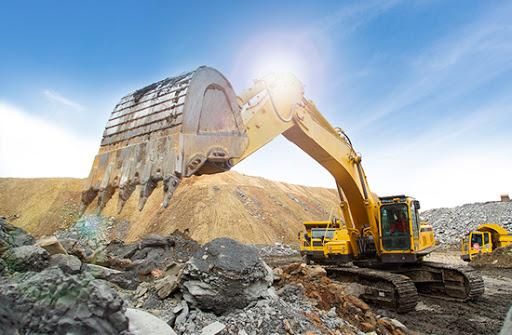

√ Earthmoving & Construction

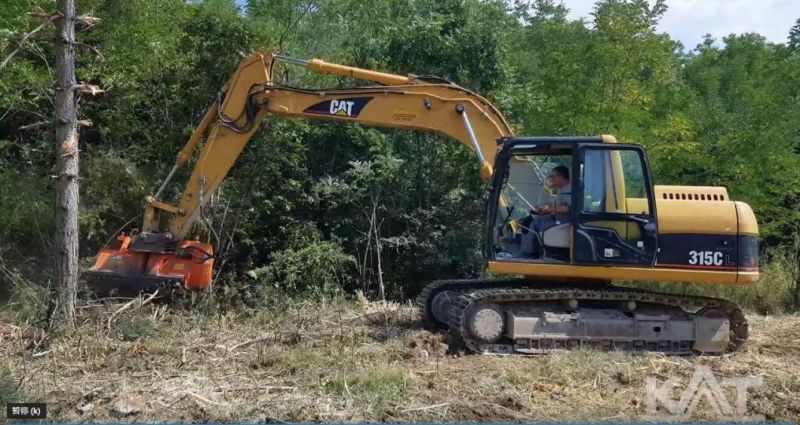

√ Agriculture &Forestry

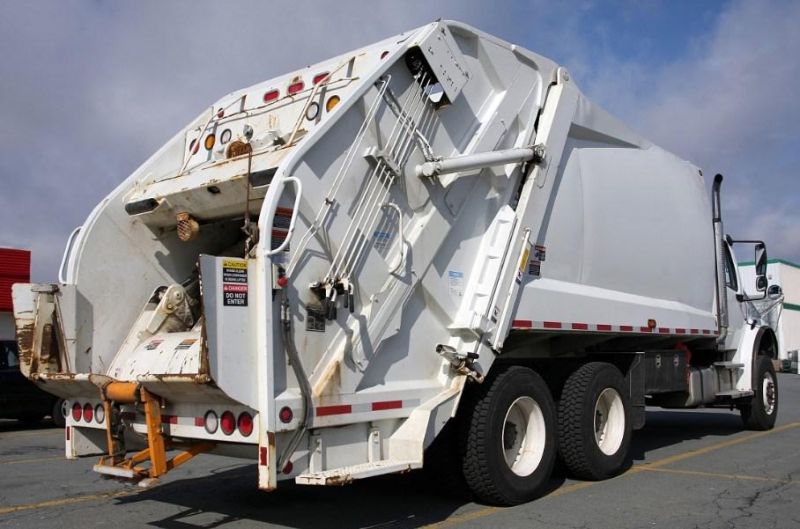

√Waste Management & Material Handing

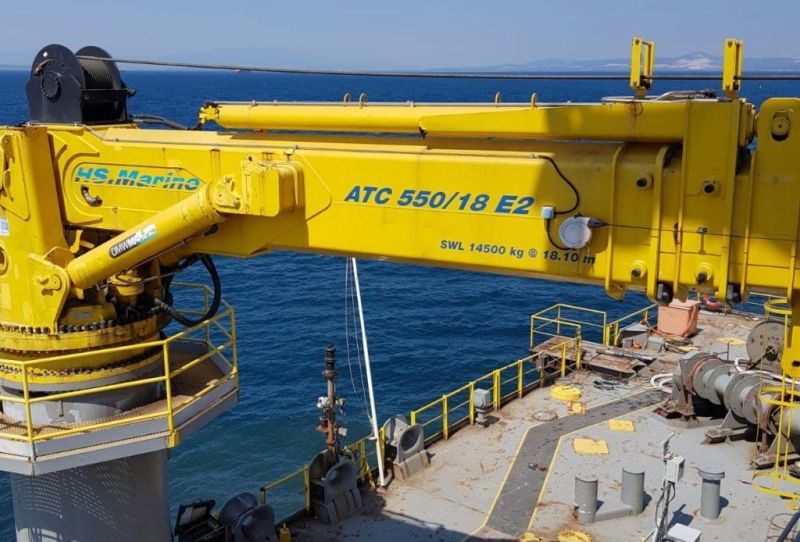

√Ship crane & offshore
Select the right cylinders for an application is critical in obtaining maximum performance and reliability.
ROCA team takes all your concerns into consideration to suit your hydraulic cylinder requirements.
Together, we work out the best design solution for your application.
Company introduction
Xiamen Roca is a comprehensive manufacturing enterprise engaged in hydraulic cylinders, excavator attachment, metal casting, hydraulic components with certification approval to meet custom or OEM requirements.
ROCA owns factories that offer customers effective-cost products with quality assurance. With its professional and experienced R&D team, ROCA Hydraulic devotes itself to research and development to optimize products applied in construction, mining, waster management, forestry, agriculture, etc.
Hydraulic cylinders are the most effective and efficient method of pushing, pulling, lifting, and lowering. Nowadays hydraulic cylinders play an essential role in daily application and industry:√ Mining
√ Earthmoving & Construction
√ Agriculture &Forestry
√Waste Management & Material Handing
√Ship crane & offshore
Select the right cylinders for an application is critical in obtaining maximum performance and reliability. ROCA team takes all your concerns into consideration to suit your hydraulic cylinder requirements. Together, we work out the best design solution for your application.
