• Model NO.：A, B, cC, D, E, F, DC, DP
• Thread Type：Male+Female
• Installation：Sleeve Type
• Material：Stainless Steel
• Type：Quick Connector
• Size：1,2"-8"
• Color：White
• Shape：Round
• Easy or Hard：Easy
• Transport Package：in Cartons
• Specification：1,2"-8"
• Trademark：SUNTEX aquatech
• Origin：Hebei Province, China
• HS Code：7609000000
• Production Capacity：20000PCS Per Month
• Package size per unit product：24.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：12.000kg

DESIGN STANDARDA.A59326B, EN14420-7THREAD STANDARDBSP, NPTWORKING PRESSUREPN10/16, CLASS 150WORKING TEMPERATURE-20  ~ 80

Casting method of our Al camlock coupling:
Die casting + gravity casting

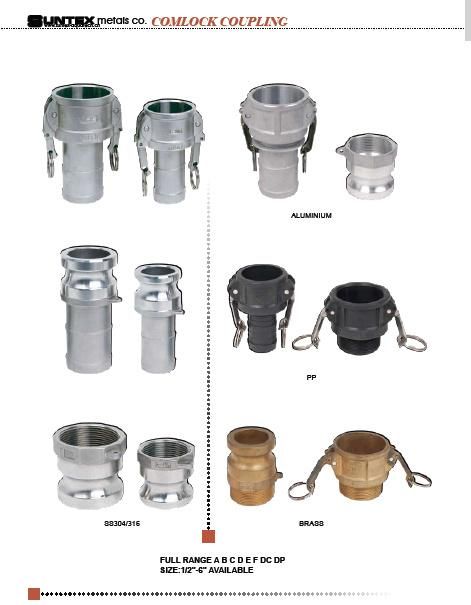

Types available:A.B.C.D.E.F.DC.DP

Levers camlock fitting:
stainless steel or brass
Pins.Rings and Safety clips of SS Camlock:
We use steel plated Pins,Rings and Safety clips.
(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)

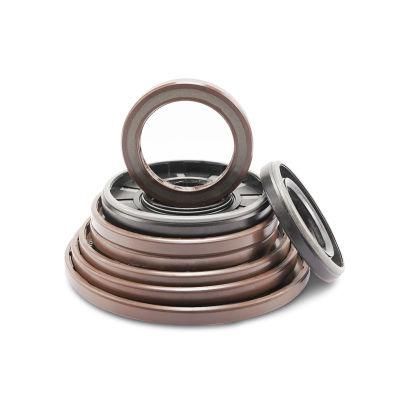

Sealings :
NBR
Viton
PTFE envelop gasket
Other materials are available on request.

Threads of our racores camlock en acero inxidable:
NPT
BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)

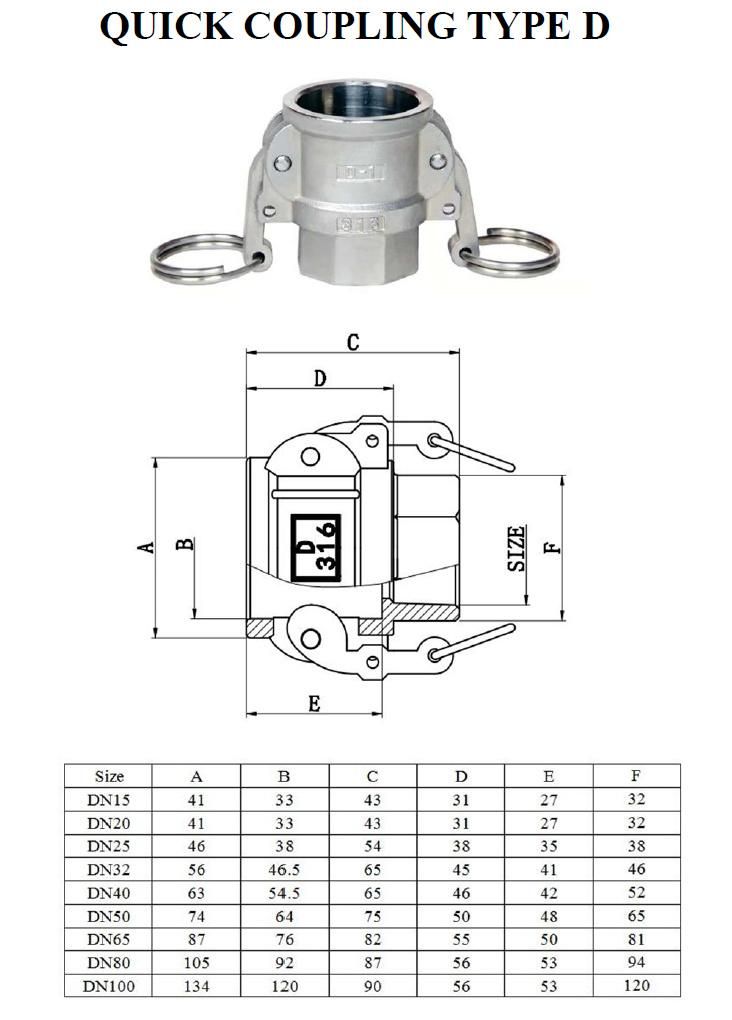

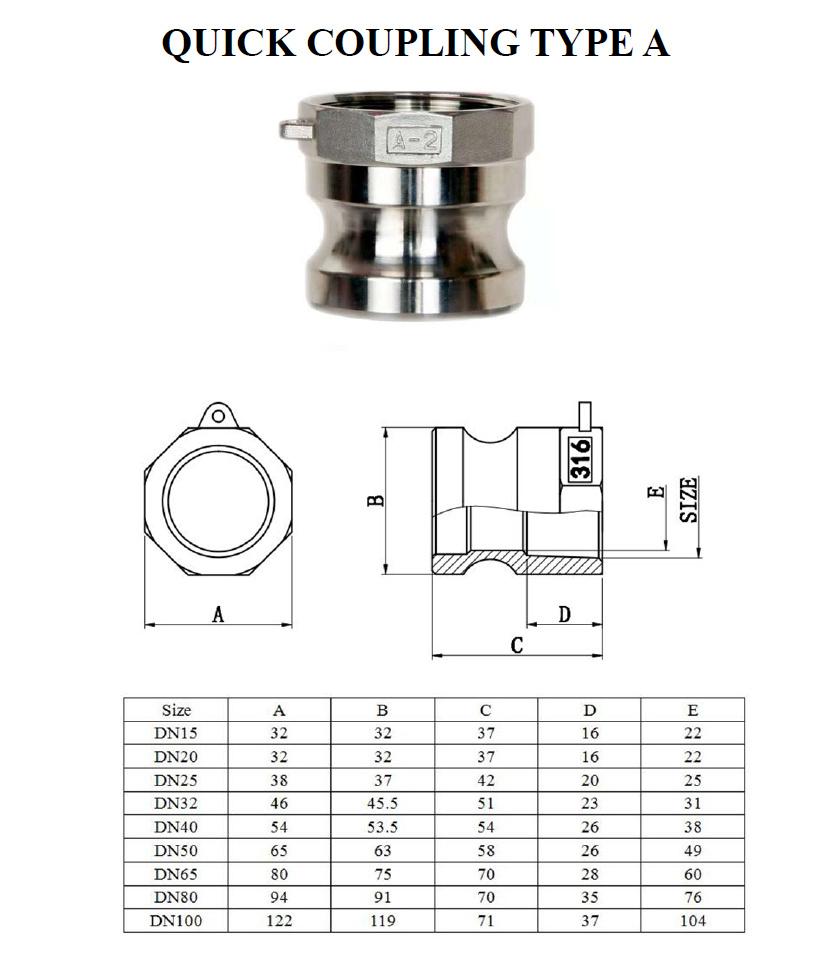

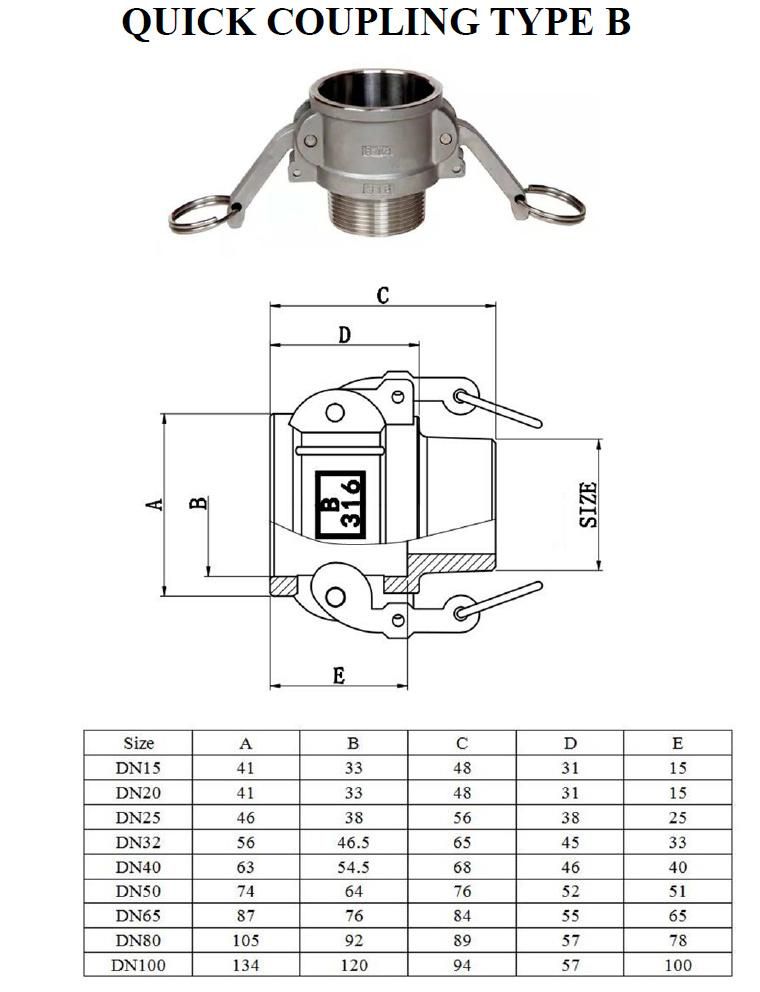

DIMENSION CHART:



General Conditions:
Standard Packing: In cartons, with or without pallets
Leading time: 45 days in normal (rush order please check us, we keep some stock but not for all sizes)


Who we are:  SUNTEX is the leading valves & pipe fittings producer with more than 20 years of export, located in Hebei province,China
                                 provide one stop pipe line supplies to clients all over the world, distributor wanted worldwide.
