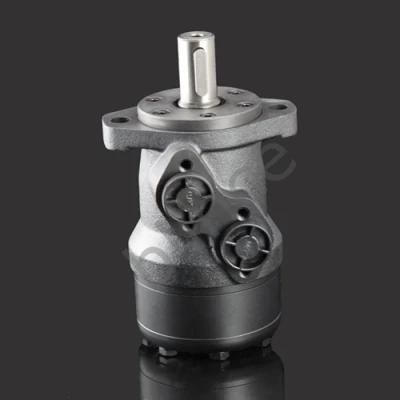

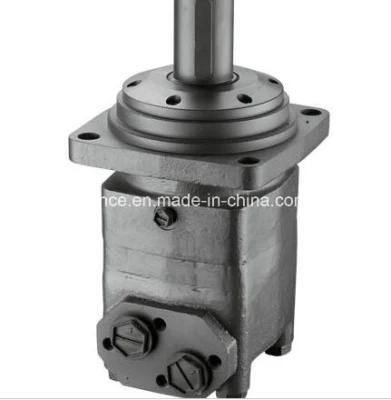

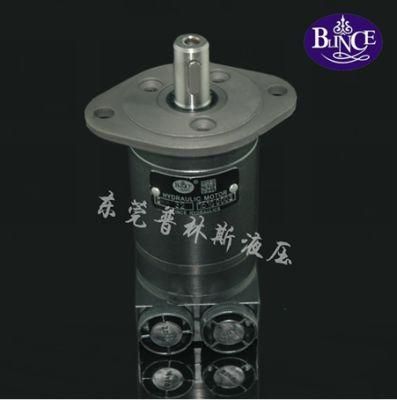

Hydraulik Motor Omp36 / 50 / 80 / 100 / 125 / 160 / 200 / 250 / 315 / 400 / 500cc
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE
- Power Rating：12kw
- Speed：High Speed
- Type：Omp Hydraulic Motor
- Displacement(Cc/Rev)：100cc
- Continuous Max Speed(Rpm)：615
Base Info
- Model NO.：omp100
- Continuous Max Torque(N.M)：182
- Hole Middle Distance：106.4mm
- Cylinde Parallel Shaft Size：25mm
- Flange：Standard 2 Hole Diamond Flange
- Max Pressure(MPa)：14
- Ports and Drain Port：G1,2, G1,4
- Material：Rust-Proof Cast Iron
- Warranty：One Year
- Transport Package：Sale Packing Contians Carton or Wood Case
- Specification：CE
- Trademark：Blince
- Origin：Guangdong Province, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Units Per,Month
Description
typeOMP
OMPH
36 OMP
OMPH
50 OMP
OMPH
80 OMP
OMPH
100 OMP
OMPH
125 OMP
OMPH
160 OMP
OMPH
200 OMP
OMPH
250 OMP
OMPH
315 OMP
OMPH
400 OMP
OMPH
500 Geometric displacement 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5 Max.speed.(rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120 int. 1650 1450 960 770 615 475 385 310 240 190 150 Max.torque(N.m cont. 55 100 146 182 236 302 360 383 375 360 385 int. 76 128 186 227 290 370 440 460 555 525 560 Max.output(KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0 int 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0 Max.pressure
Drop(Mpa) cont. 12.5 14 14 14 14 14 14 11 9 7 6 int 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9 Max.flow(L/min) cont. 55 60 60 60 60 60 60 60 60 60 60 int. 60 75 75 75 75 75 75 75 75 75 75 OMP50-2AD (OMP-1510310) OMP50-2AD (OMP-1510610) OMP50-2CD (OMP-1510300) OMP50-2CD (OMP-1510600) OMPH50-H2RS (OMP-1517041) OMP50-2ED (OMP-1510330) OMP50-2ED (OMP-1510630) OMP50-4BD (OMP-1515001)
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go,and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost,you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
WHY US:

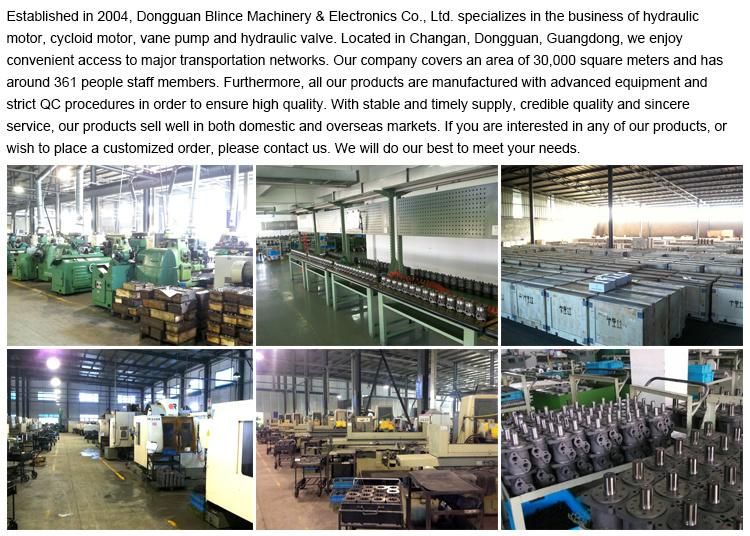

1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
If any interested in our products, please contact us below:
