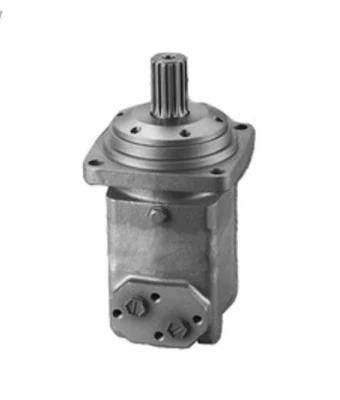

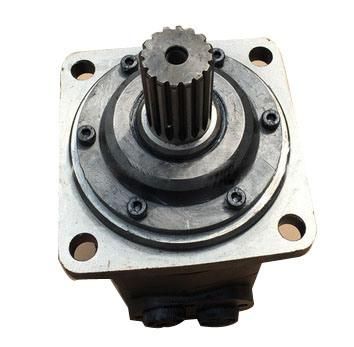

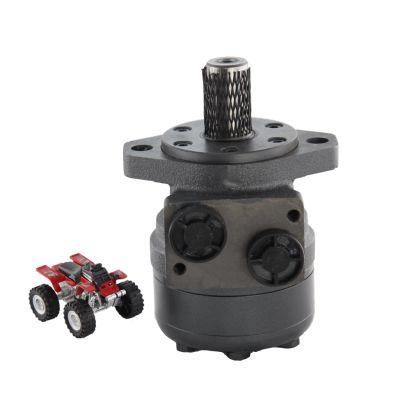

• Model NO.：BMR
• HS Code：84122910
• Production Capacity：500, 000 Pieces, Year



Characteristic Features:

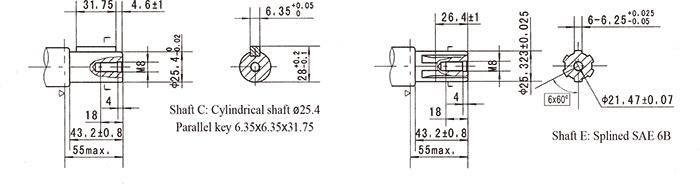

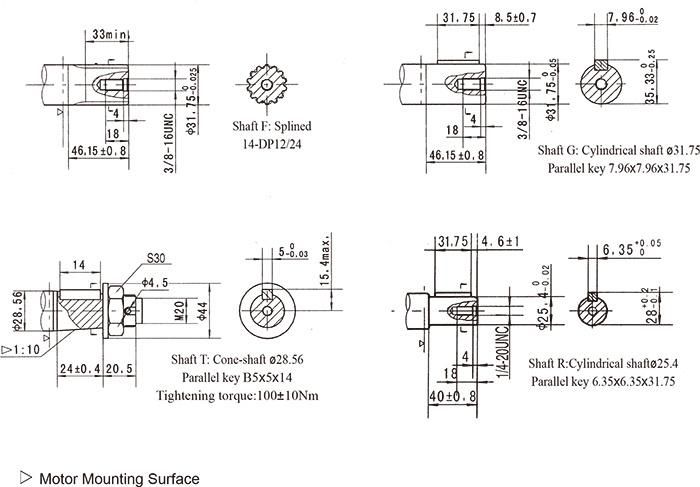

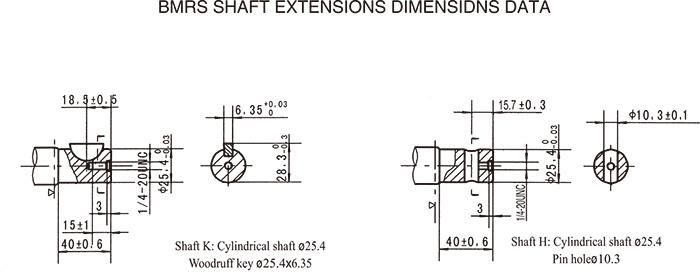

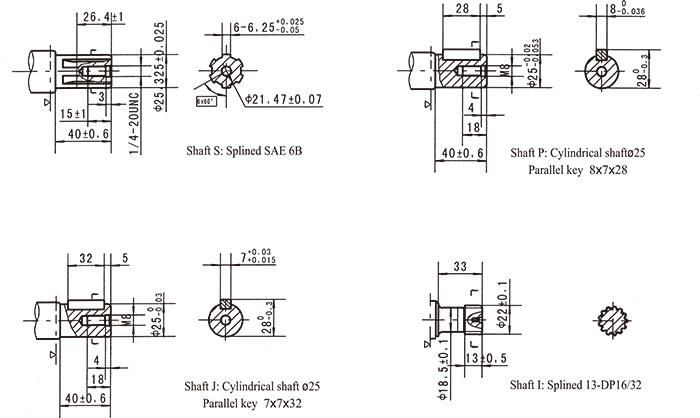

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR BMRS 36 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 375 Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155 int. 1220 1150 940 750 600 475 385 300 240 190 Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365 int. 83 126 220 280 340 430 440 490 535 495 peak 105 165 270 320 370 460 560 640 650 680 Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5 int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8 Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7 int. 16.5 17.5 20 20 20 20 17.5 15 13 10 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15 Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60 int. 45 60 75 75 75 75 75 75 75 75 Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* Special design in the driver-linker and prolong operating life
* A variety of connection type of flange output shaft and oil port .

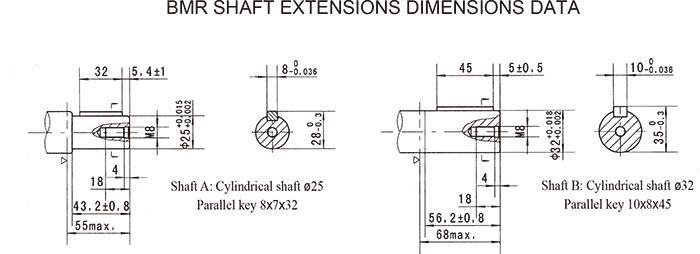

Technical data for BMR with 31.75 and 32 shaft:

Type BMR BMRS 36 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 375 Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155 int. 1520 1150 940 750 600 475 385 300 240 190 Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580 int. 83 126 220 280 340 430 500 610 690 690 peak 105 165 270 320 370 460 560 710 840 830 Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5 int. 9.8 11.2 15 15 14.5 14 13 12 10 9 Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5 int. 16.5 17.5 20 20 20 20 20 20 17.5 15 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5 Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60 int. 55 60 75 75 75 75 75 75 75 75 Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

* Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute.





Applications :

Strawberry harvesters

grape harvesters

potato harvesters

other agricultural harvesters

road sweeper

Shijiazhuang Hanjiu Technology Co., Ltd. is a professional manufacturer of BM series cycloidal hydraulic motors and BZZ steering gears. Our factory has dozens of highly qualified and professional engineers and technicians, and introduced many advanced machines in 2010. The production facilities are large-scale factories in northern China and produce more than 300,000 units each year.
  Our factory specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace Danfoss, Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
  My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.


Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics
