Svv90 Hydraulic Control Valve Solenoid 24V 90 Liters G3/4 1 Lever

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Function：Direction Control
  • Type：-
  • Transport Package：Carton Packing
  • Specification：HSV9
  • Trademark：Hanjiu
  • Origin：China

Base Info

  • Model NO.：HSV9
  • HS Code：84818029
  • Production Capacity：500000 Per Year

Description

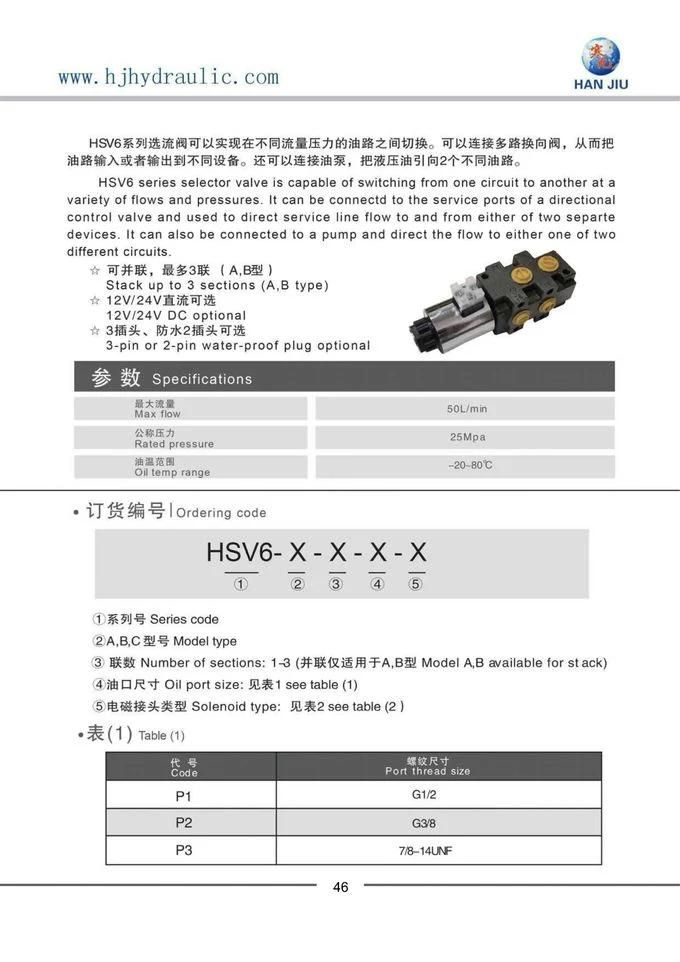

CodePort Thread sizeP1
G1/2
 P2
G3/4
 P3
7/8-14UNF

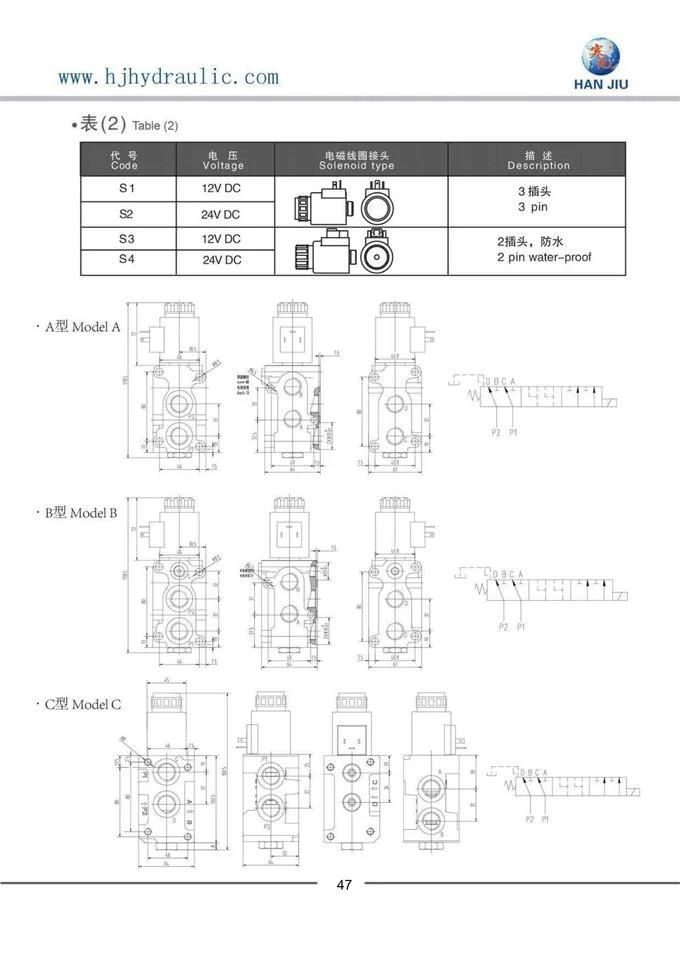

5.Solenoid type





Model type


Svv90 Hydraulic Control Valve Solenoid 24V 90 Liters G3/4 1 Lever



Specifications:

parametervalueNumber of Work Sectionsfrom 1 to 3Max working pressure315 barOperating pressure210 barRated flow90 l / minWorking temperaturefrom -30 ° С to + 50 ° СFluid viscosityfrom 20 to 400 mm 2 / sFluid temperaturefrom -20 ° С to + 70 ° СFiltrationGrade 9 NAS1638Supply Voltage / Power Consumption12VDC * / 36W and 24VDC * / 29WSwitching frequency max15,000 times per hourDuty cycle100%





Svv90 Hydraulic Control Valve Solenoid 24V 90 Liters G3/4 1 Lever

Svv90 Hydraulic Control Valve Solenoid 24V 90 Liters G3/4 1 Lever







6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator

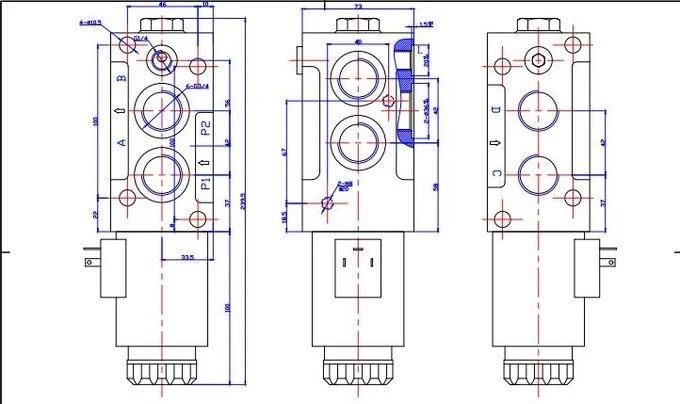

Through the ports P1 and P2, the solinoid valve DVS6-6 / 2L diverter is connected to one of the working sections of the regular directional control valves
To ports C D - connect consumer 1
To ports A1 B1 - connect consumer
