• Model NO.：DSHG 04
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：8.8kg
• Transport Package：Cartons and Pallets
• Specification：03, 04, 06, 10
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. DSHG 04 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 8.8kg Transport Package Cartons and Pallets Specification 03, 04, 06, 10 Trademark Longli Origin China HS Code 8412299090 Production Capacity 5000PCS/Month

Product Description

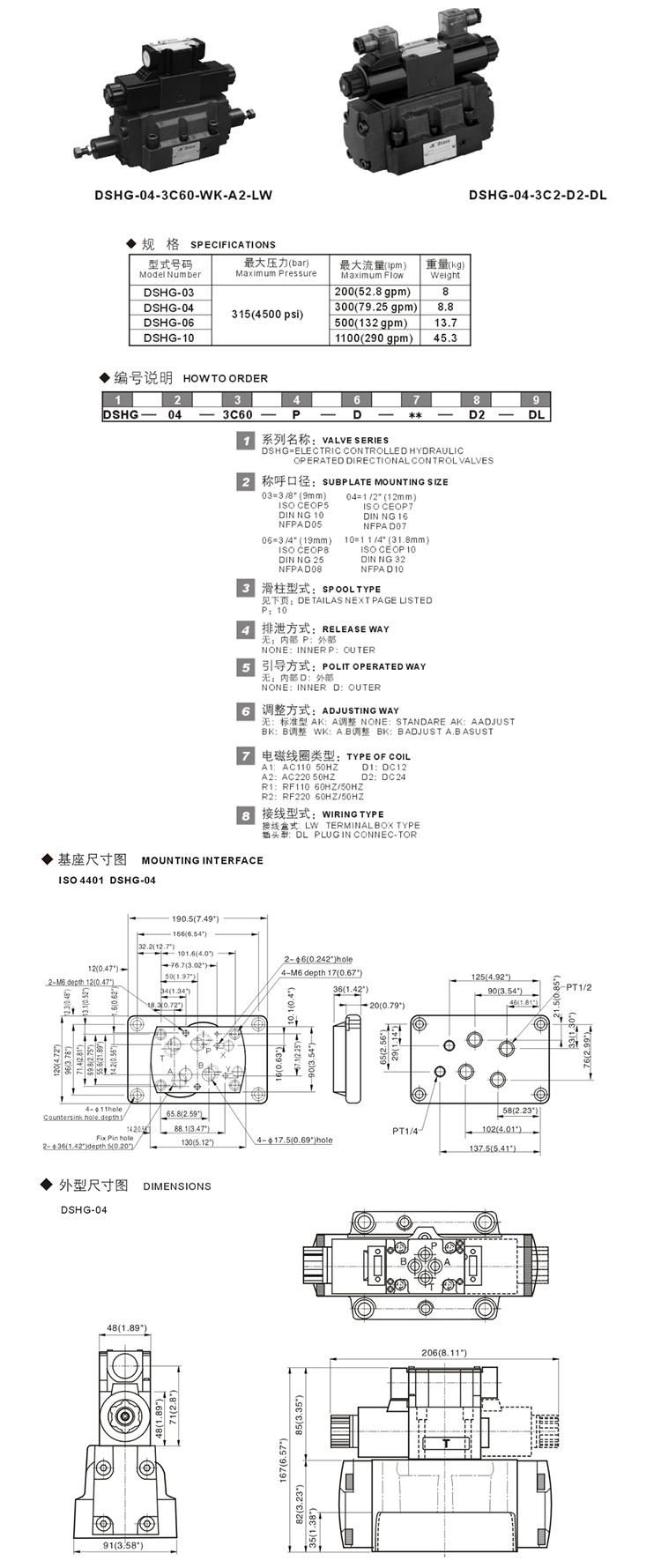

DSHG 04 Yuken Pilot Operated Directional Valves



DSHG 04 Yuken Pilot Operated Directional Valves is designed with spool immersed within the oil in the system operation, a buffer effect, even at high pressure, high frequency switching operation, the spool movement still silent smooth. Oil-soaked slide core, completely eliminating the movable parts of the seal and the sliding friction between the plunger and the oil sealing caused by oil spills, and can increase the strut thrust.DSHG 04 Yuken Pilot Operated Directional Valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.

High Pressure High Flow
High pressure [31.5 MPa (4570 PSI)] along which high flow means compact system design.
Lower Pressure Drop
System energy saving increased as pressure drop of each valve has been greatly reduced

Product name: DSHG 04 Yuken Pilot Operated Directional Valves
Model: Yuken DSHG04
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Control
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli
Product description: Yuken type of DSG-03 series directional valve with solenoid operated
Connection type: Sandwich plate vertical stacking connection
Max. operation pressure:: 315bar
Max. flow rate: 300L/min
Voltage application: 220VAC,110AC,24VDC,12VDC
Working temperature: -30+80ºC of NBR seals and -20+80ºCof FPM seals
Recommended medium filtration: Class9 NAS 1638 at min. filter fineness 10 more than and equals to 75
Medium viscosity range: 28-500mm2/S
Valve net weight: 8.8Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
