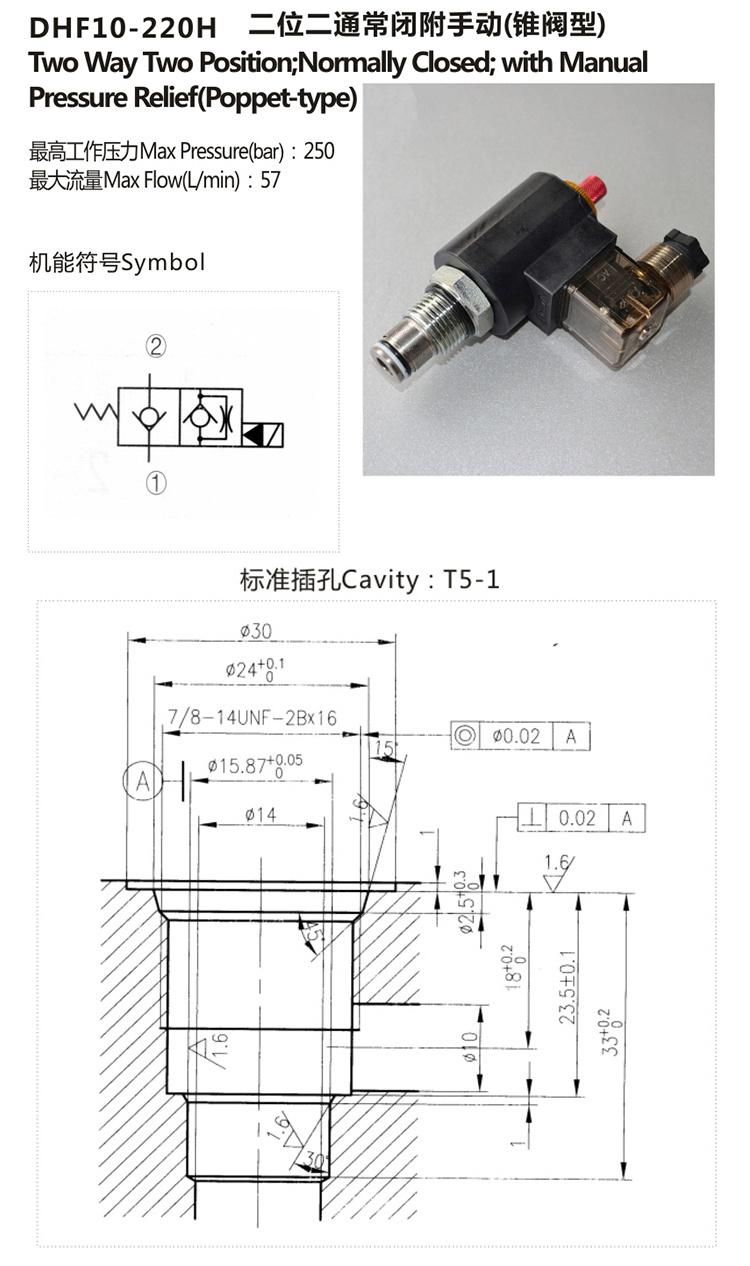

• Model NO.：DHF10-220H
• Cavity：T5-1,VC10-2
• Internal Leakage：5drops,min
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：T5-1,VC10-2
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. DHF10-220H Cavity T5-1/VC10-2 Internal Leakage 5drops/min Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification T5-1/VC10-2 Trademark Longli Origin China HS Code 8412299090 Production Capacity 6000PCS/Month

Product Description

DESCRIPTION
A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, with standard and manual override options. This valve is intended to function as a load holding or blocking valve in applications requiring low internal leakage, or low-flow circuits with pull-only manual override requirements for handles or cable linkage.

OPERATION
When de-energized, the DHF10-221H acts as a check valve, allowing flow from 1 to 2, while blocking flow
from 2 to 1. With the sensor option, the neutral sensor will signal ON or HIGH and OFF or LOW.
When energized, the cartridge's poppet lifts to open the 2 to 1 flow path. In this mode,
flow from 1 to 2 is severely restricted. (If this path is required, see model SV10-22, page 1.044.1.)
With the sensor option, the neutral sensor will signal LOW or OFF, HIGH or ON, or BOTH for Dual redundancy.
Operation of Manual Override Option: To override, push button in, twist counterclockwise 180°,
and release. In this position, the valve will remain open. To return to normal operation, push button in,
twist clockwise 180°, and release. Override will be detented in this position.

FEATURES
• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.
• Position sensor option.
