• Model NO.：PBD360A
• Fluid：Water Industrial Usage
• Temperature Rang：1-75 Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Weight：0.1kg
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Response time (open)：≤ 0.15 sec
• Response time (close)：≤ 0.3 sec
• Transport Package：Cartons and Pallets
• Specification：1,4, 3,8, 1,2
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. PBD360A Fluid Water Industrial Usage Temperature Rang 1-75 Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Weight 0.1kg Certificate ISO9001 Transportation Ocean,Land,Air,Express Response time (open) ≤ 0.15 sec Response time (close) ≤ 0.3 sec Transport Package Cartons and Pallets Specification 1/4, 3/8, 1/2 Trademark Longli Origin China HS Code 8412299090 Production Capacity 2000PCS/Month

Product Description

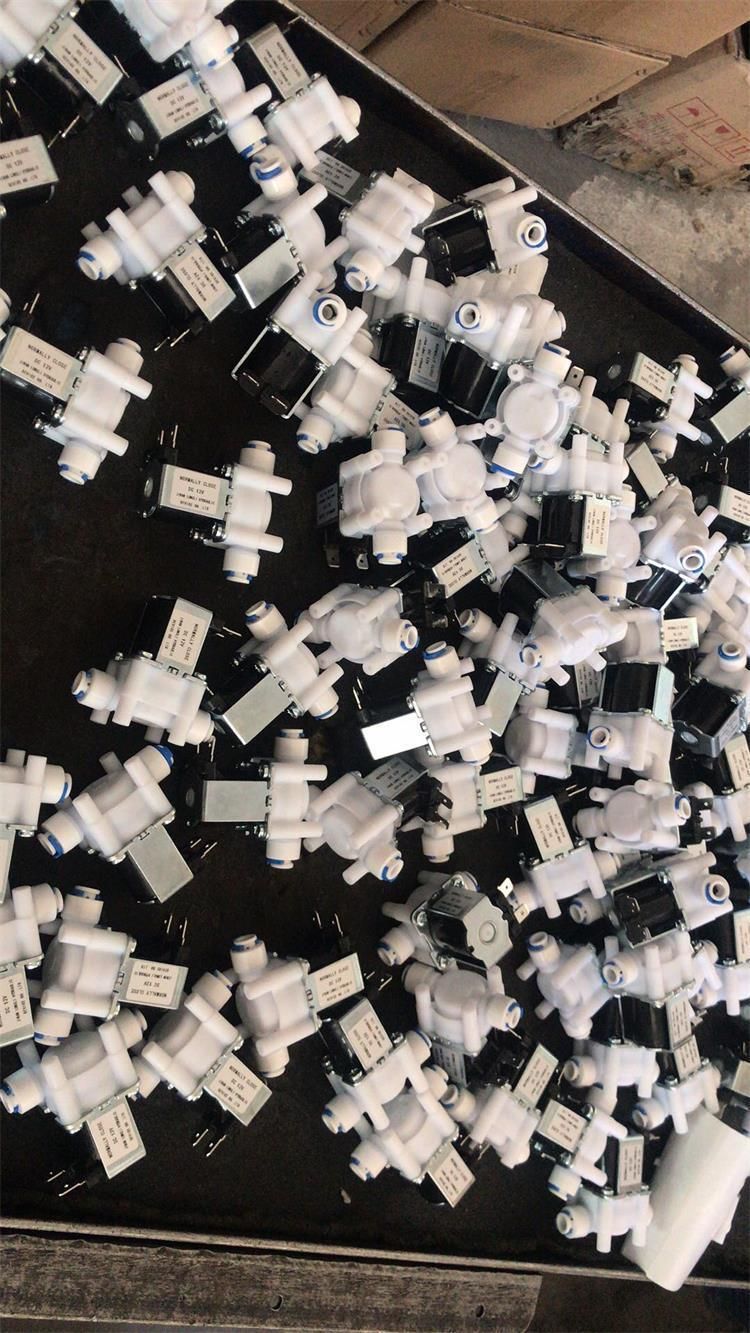

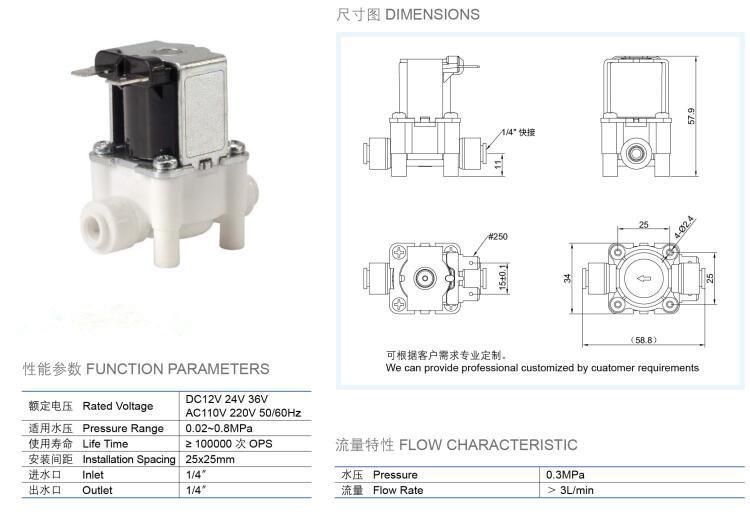

Mini Water Normally Closed Solenoid Valve

Mini Water Normally Closed Solenoid Valve can control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/4" (Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12V 24VDC 110V 220VAC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, liquid can only flow one direction.



1/4" Nominal quick connector
Working Pressure: 0.02 Mpa - 0.8 Mpa
Working Temperature: 1 ºC - 75 ºC
Response time (open): ≤ 0.15 sec
Response time (close): ≤ 0.3 sec
Actuating voltage: 12V 24VDC 110V 220VAC 50/60Hz
Actuating life: ≥ 100000 cycles
Weight: 100g

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
