• Model NO.：DHF08-224
• Cavity：T4-1,VC08-2
• Internal Leakage：10ml,min
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：T4-1,VC08-2
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. DHF08-224 Cavity T4-1/VC08-2 Internal Leakage 10ml/min Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification T4-1/VC08-2 Trademark Longli Origin China HS Code 8412299090 Production Capacity 6000PCS/Month

Product Description

DESCRIPTION
A solenoid-operated, 2-way, normally closed, spool-type, direct-acting, screw-in hydraulic
cartridge valve, intended for blocking or load-holding in low flow circuits.

OPERATION
When de-energized, the DHF08-224 blocks flow in both directions. When energized the spool
shifts to allow flow in both directions.
Operation of Manual Override Option: To override, push button in and twist counterclockwise 180°.
The internal spring will push the button out. In this position the valve may be only partially shifted. To
assure full override shift, pull the button out to its fullest extension and hold it in this position. To return
to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.

FEATURES
• Bidirectional flow path.
• Manual override option.
• Screen option.
• Continuous-duty rated coil.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Both ports may be fully pressurized.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.
• Compact size.

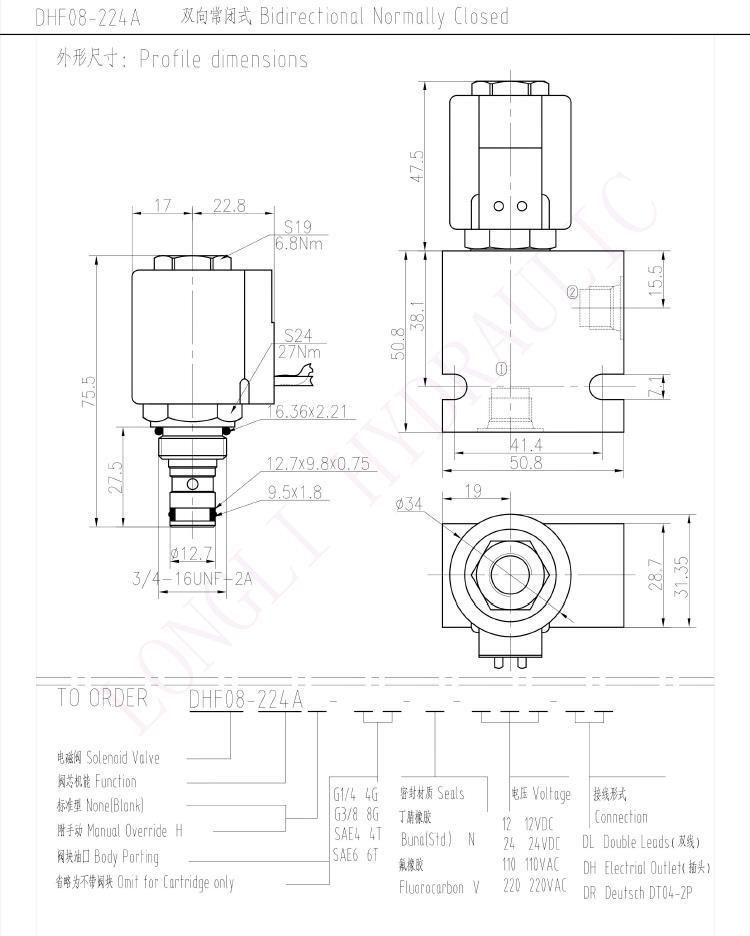

Model: DHF08-224
Place of Origin: Shandong,China (Mainland)
Product: Hydraulic 2 Way 2 Position Solenoid Valve(Normally Closed)
Description: With small size, light weight, low cost for unit
Materials: free-machining steel
Working pressure: 210bar
Flow: 18L/min
Voltage: 12V, 24V, 110V, 220V
Customized design: Available, as per drawings or samples
OEM/ODM business: Acceptable, please contact us
Quality tested: High pressure testing before delivery
