• Model NO.：DBDH10P
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Weight：3.7kg
• Transport Package：Cartons and Pallets
• Specification：6, 8, 10, 15, 20, 25, 30
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. DBDH10P Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Weight 3.7kg Transport Package Cartons and Pallets Specification 6, 8, 10, 15, 20, 25, 30 Trademark Longli Origin China HS Code 8412299090 Production Capacity 3000PCS/Month

Product Description

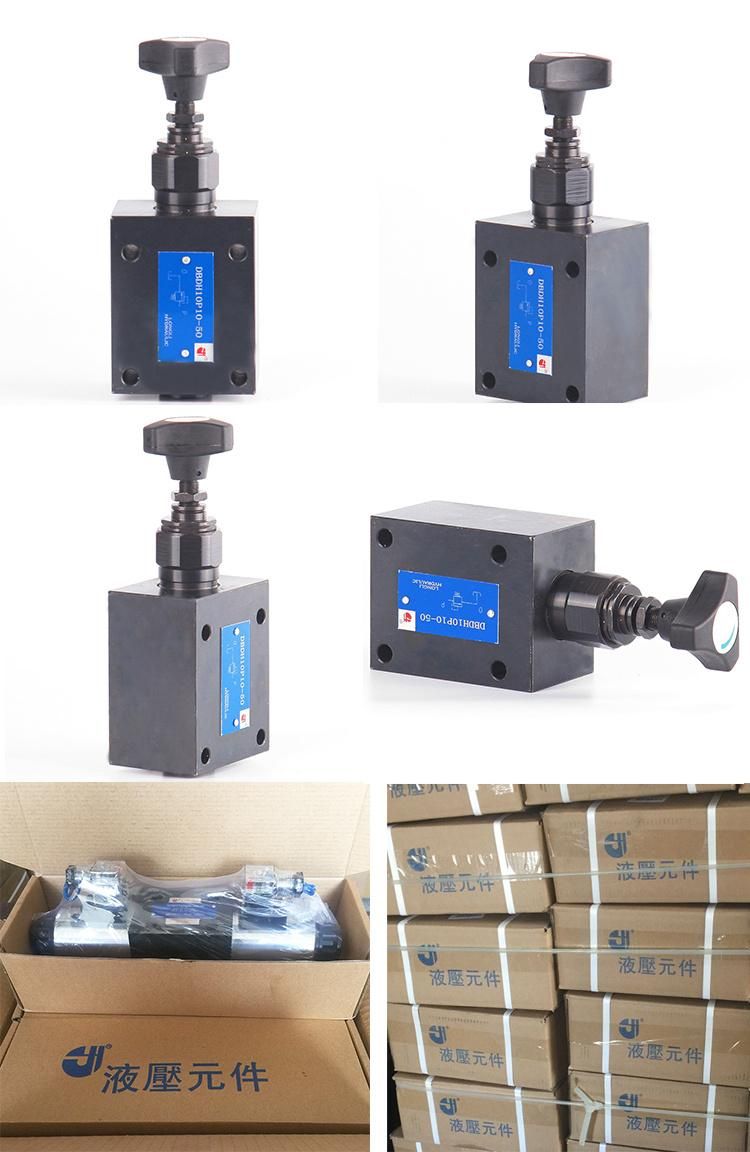

DBDH10P Supplate Mounting Pressure Safety Relief Valve

The Rexroth DBDH10P supplate mounting pressure adjustment relief valve is tested as per the CE standard of 97/23/EC directive. The valves are adjustable Pressure Relief Valve which works as direct action type relief valve, it is used to limit the main system pressure with characteristics of fast response by direct adjustment, the P type is mounted directed on the system sealed by NBR or FPM seals, please consult us for different seals.

The DBDH10P valve and block can be ordered separately, or the block will be able to design by custom requirements to meet different working conditions.
The Rexroth DBDH10P supplate mounting pressure adjustment relief valve plays main role of the overflow for keeping stable pressure and safety protection in hydraulic systems, there are seven pressure stages of the spring for different requirements of system and two kinds of spring adjustment, hexagon bolt or rotary knob for option.

Model: DBDH10P series
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Check
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli

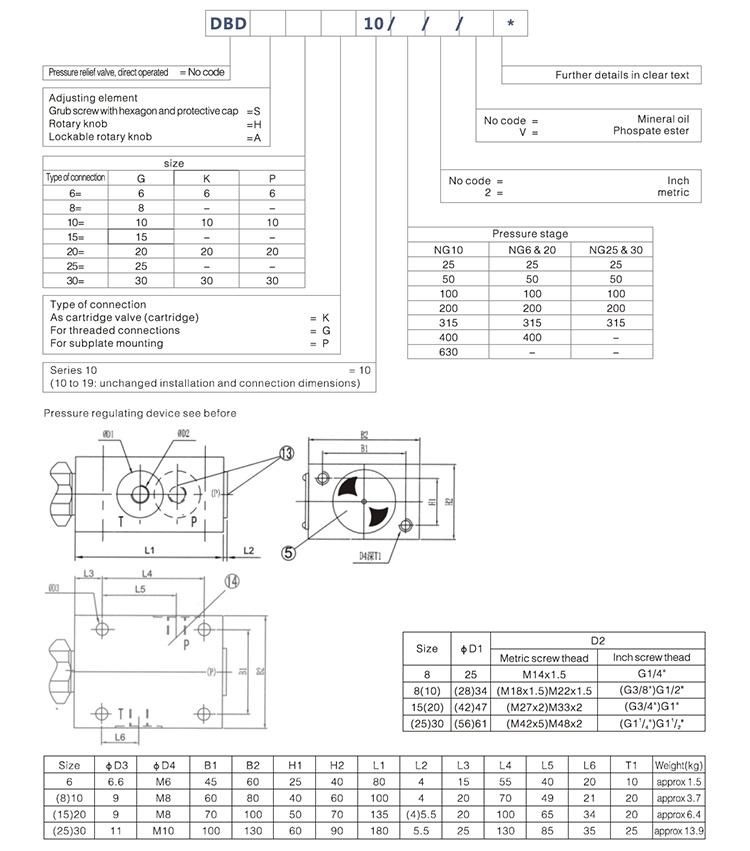

Product description: Rexroth type of DBDS10P supplate mounting direct operated pressure adjustment relief valve, size10mm
Subplate code: G302/1
Screw-in Cartridge Valve threaded connection: M35X1.5
P and T O-ring size: 12.3x2.4mm
Max. inlet P port operation pressure: 400Bar / 5800PSI
Max. outlet T port operation pressure: 315Bar /4567.50PSI
Max flow rate: 120L/min.
Installation bolts:: M8X70 Threaded, Class: 10.9
Pressure gauge port: G1/2"
Valve net weight: 3.70Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
