• Model NO.：DBDH
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Weight：1.5kg
• Transport Package：Cartons and Pallets
• Specification：6, 8, 10, 15, 20, 25, 30
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. DBDH Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Weight 1.5kg Transport Package Cartons and Pallets Specification 6, 8, 10, 15, 20, 25, 30 Trademark Longli Origin China HS Code 8412299090 Production Capacity 3000PCS/Month

Product Description

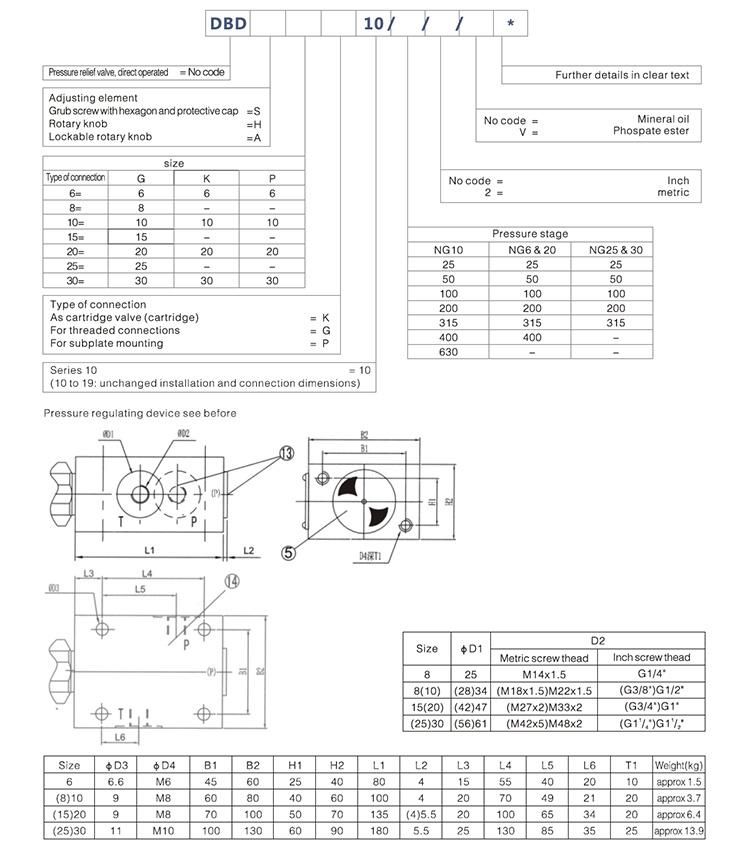

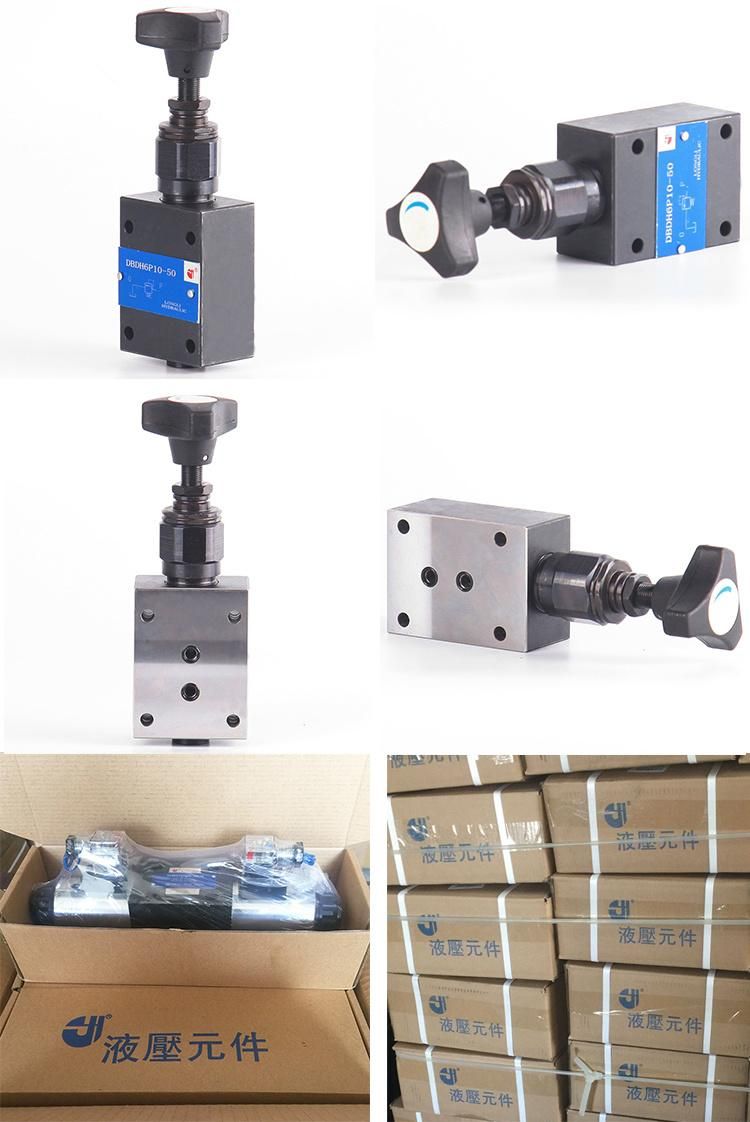

DBDH6P Hydraulic Direct Controlled Pressure Relief Valve


Pressure Relief Valves of type DBD are direct operated seat valves. They are used for limiting a system pressure.

The valves basically consist of sleeve, spring, poppet with damping piston (pressure rating 25 bar - 400 bar) or ball (pressure rating 630 bar) and adjustment type. The system pressure can be set steplessly via the adjustment type. The spring pushes the poppet or the ball onto the seat. Channel P is connected to the system. The pressure existing in the system acts on the poppet surface (or the ball). If the pressure in channel P exceeds the value set at the spring, the poppet or the ball opens against the spring. Now, hydraulic fluid from channel P flows into channel T. The stroke of the poppet is limited by the embossing.

In order to achieve good pressure adjustment over the entire pressure range, the entire pressure range has been divided into 7 pressure ratings. One pressure rating corresponds to a certain spring for a maximum operating pressure that can be set by means of that spring.

Model: DBDH6P series
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Regulating
Material: Casting
Temperature of Media: Normal Temperature
Media: Oil
Brand Name: Longli
Product description: Rexroth type of DBDS6...P, supplate mounting direct acting pressure adjustment Relief Valve, size 6mm
Screw-in Cartridge Valve threaded connection: M28x1.5
P and T O ring size: 8.75x1.8mm
Max. inlet P port operation pressure: 400Bar / 5800PSI
Max. outlet T port operation pressure: 315Bar /4567.50PSI
Max flow rate: 50L/min
Pressure gauge port:: G1/4"
Installation bolts:: M6X50 Threaded, Class:10.9
Recommended medium filtration: ISO 4406 (C class) 20/18/15 standard, or class9 NAS 1638
Valve net weight: 1.50Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
