• Model NO.：DBW30
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Weight：5.9kg
• Transport Package：Cartons and Pallets
• Specification：10, 20, 30
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. DBW30 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Weight 5.9kg Transport Package Cartons and Pallets Specification 10, 20, 30 Trademark Longli Origin China HS Code 8412299090 Production Capacity 3000PCS/Month

Product Description

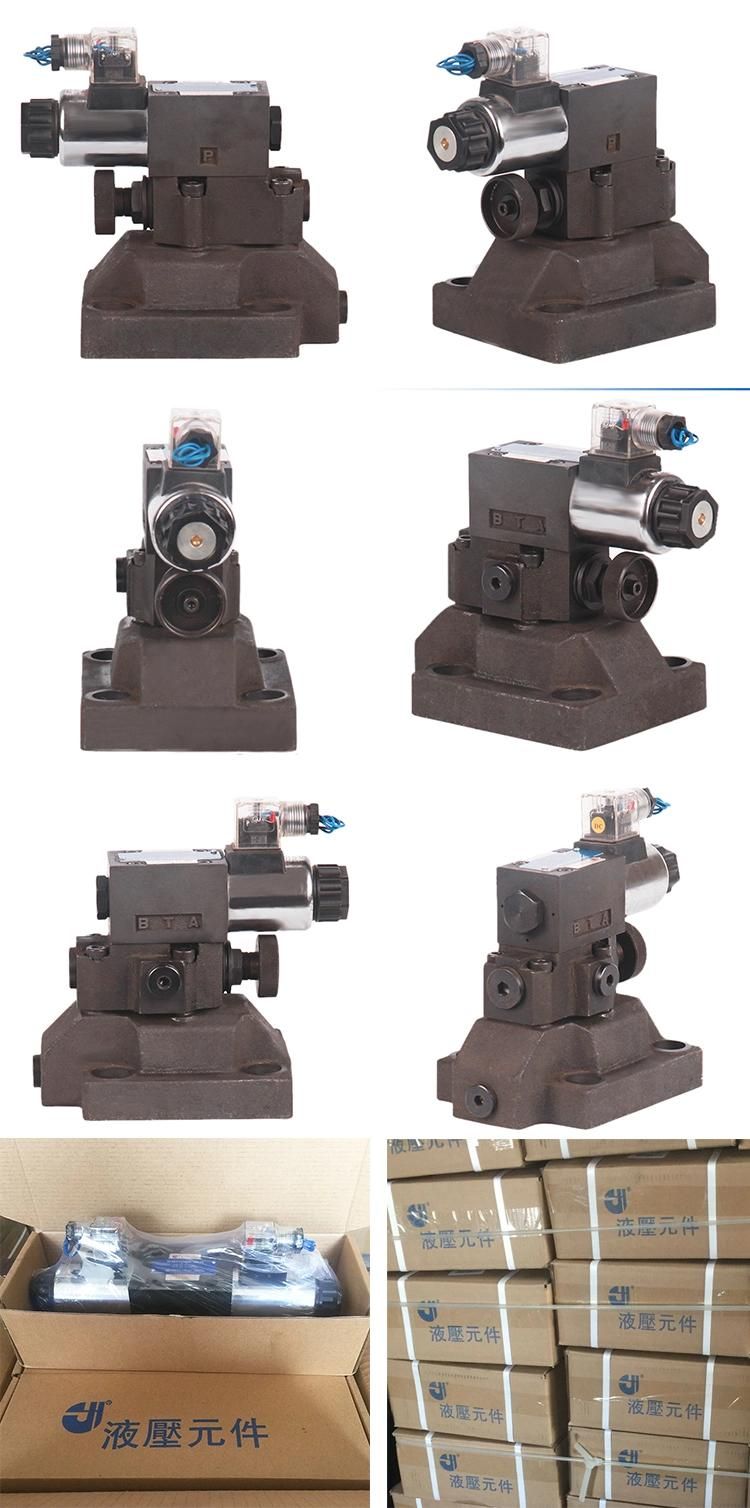

Rexroth DBW30 Pressure Relief Valve with Directional Valve

Pressure Valves of type DB and DBW are pilot-operated Pressure Relief Valves. They are used for limiting (DB) or limiting and magnetically unloading (DBW) the operating pressure. The pressure relief valves (DB) basically consist of the main valve with main spool insert and pilot control valve with pressure adjustment element. The function of this valve is basically the same as that of valve type DB. The unloading of the main spool is, however, achieved by controlling the mounted directional spool valve.

Model: DBW30
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Pilot
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli

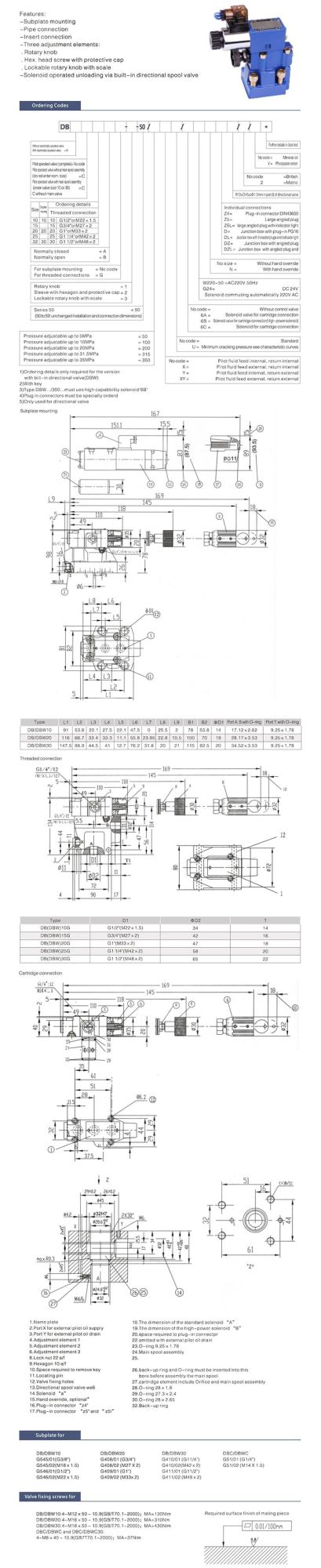

Product description: Rexroth DBW30 5X series, subplate mounting, DIN 24340 porting pattern pilot operated pressure relief valves
Porting Pattern: DIN 24340 Standard
Max. operation pressure of inlet X, P, A, B port : 350Bar / 5075PSI
Max. operation pressure of outlet T or Y port for DC voltage: 210Bar / 3045.00PSI
Max. operation pressure of outlet T or Y port for AC voltage: 160Bar / 2320PSI
Five presetting pressure stages: 50bar, 100bar, 200bar, 315bar, 350bar
Installation bolts:: Metric ISO 4762- M12X50 Threaded, Class: 10.9,( 55215396,4 pcs)
Medium viscosity range: 2.8-500mm2/s
Recommended medium filtration: ISO 4406 (C class) 20/18/15 standard, or class9 NAS 1638
Valve net weight: 5.9Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
