• Model NO.：DBW20
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Weight：4.9kg
• Transport Package：Cartons and Pallets
• Specification：10, 20, 30
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. DBW20 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Weight 4.9kg Transport Package Cartons and Pallets Specification 10, 20, 30 Trademark Longli Origin China HS Code 8412299090 Production Capacity 3000PCS/Month

Product Description

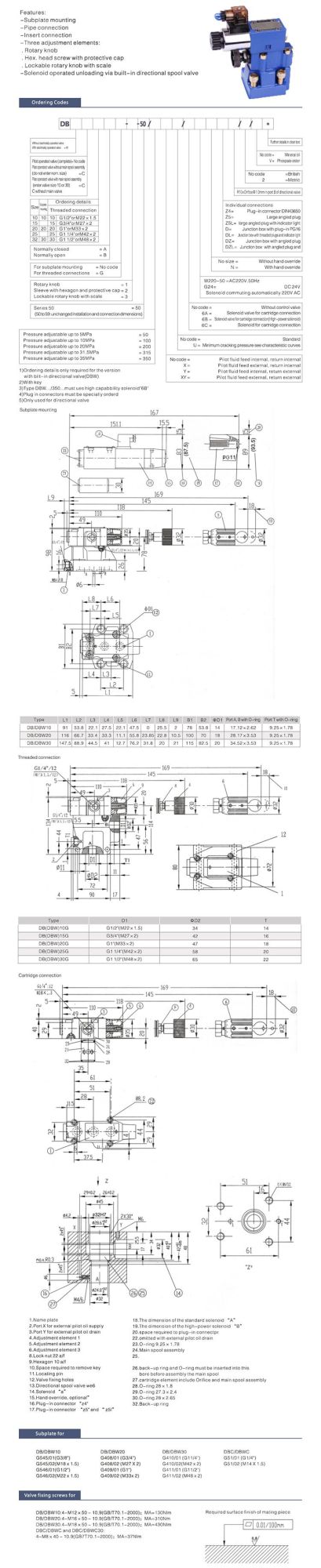

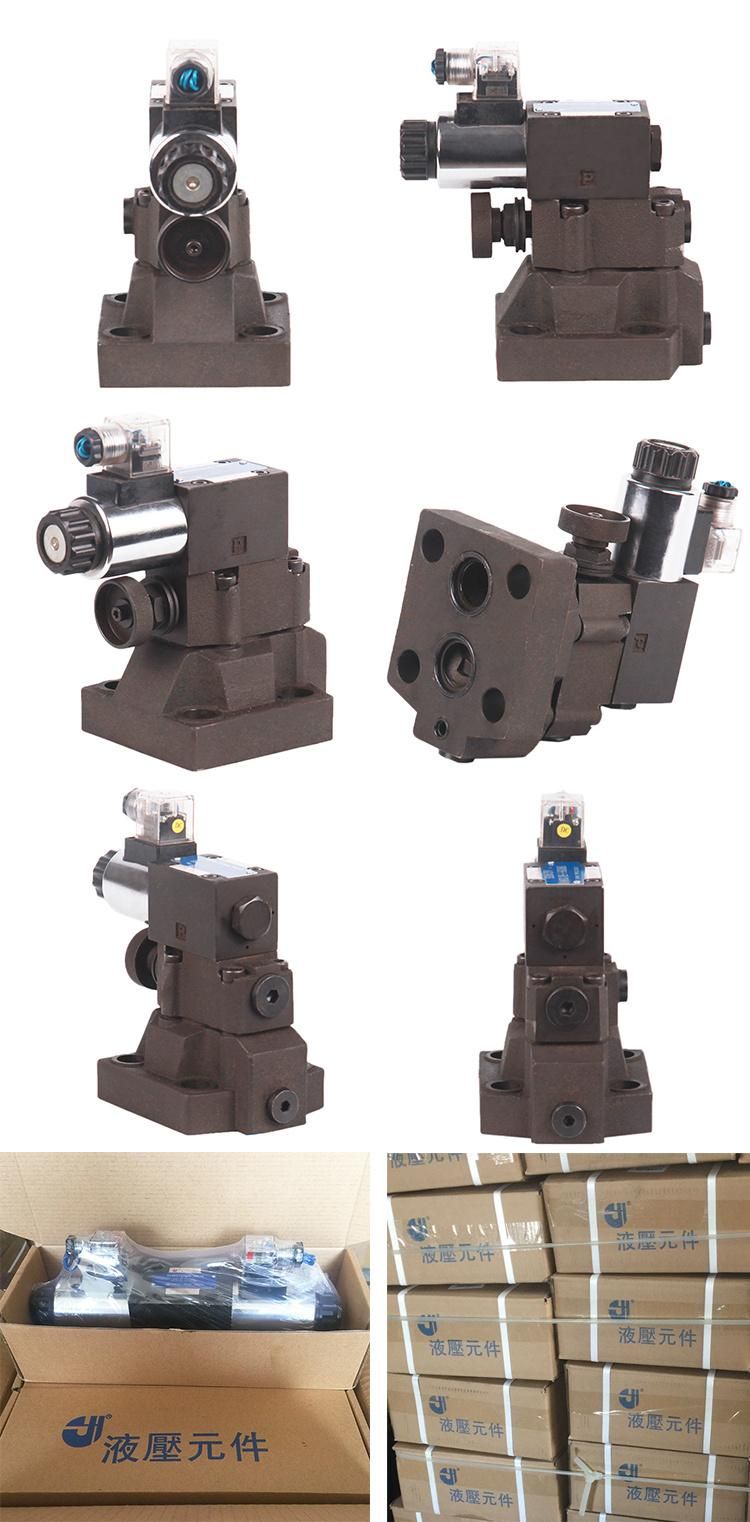

Rexroth DBW20 Pilot Operated Pressure Relief Control Valve



The Rexroth DBW20 normally closed/open pilot operated Pressure Relief Valve consists of one pilot operated pressure Relief Valve mounted with 2/2 way Solenoid Directional Valve. The open or closed position of the 2/2 way solenoid directional valve depends on the electromagnet spool movement to achieve, the solenoid energized is open the valve, the valve is closed when the solenoid is de-energized, the different directional valve operation is according to the different requirements of the system design and work.

There is a channel of the 2/2 way solenoid directional valve is connected with the pilot operated pressure relief valve, and another channel is connected with the oil return line to the tank, operating solenoid allows a part of the pilot relief valve drain the pressure or keeping the pressure in the Hydraulic System.

Model: DBW20 5X series
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Control
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli
Product description: Rexroth DBW20 5X series, size20mm normally closed/open pilot operated pressure relief valve
Porting Pattern: DIN 24340 Standard
Max. operation pressure of inlet X, P, A, B port: 350Bar / 5075PSI
Max. operation pressure of outlet T or Y port for DC voltage: 210Bar / 3045.00PSI
Max. operation pressure of outlet T or Y port for AC voltage: 160Bar / 2320PSI
Five presetting pressure stages:: 50bar, 100bar, 200bar, 315bar, 350bar
Installation bolts: Metric ISO 4762- M16X50 Threaded, Class: 10.9 (4 pcs)
Medium viscosity range: 2.8-500mm2/s
Recommended medium filtration: ISO 4406 (C class) 20/18/15 standard, or class9 NAS 1638
Valve net weight: 4.90Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
